Xerox WorkCentre 5021 Service Documentation

08/2012
5-49
WorkCentre 5021/5019
PL 56.5
Parts List
Initial Issue

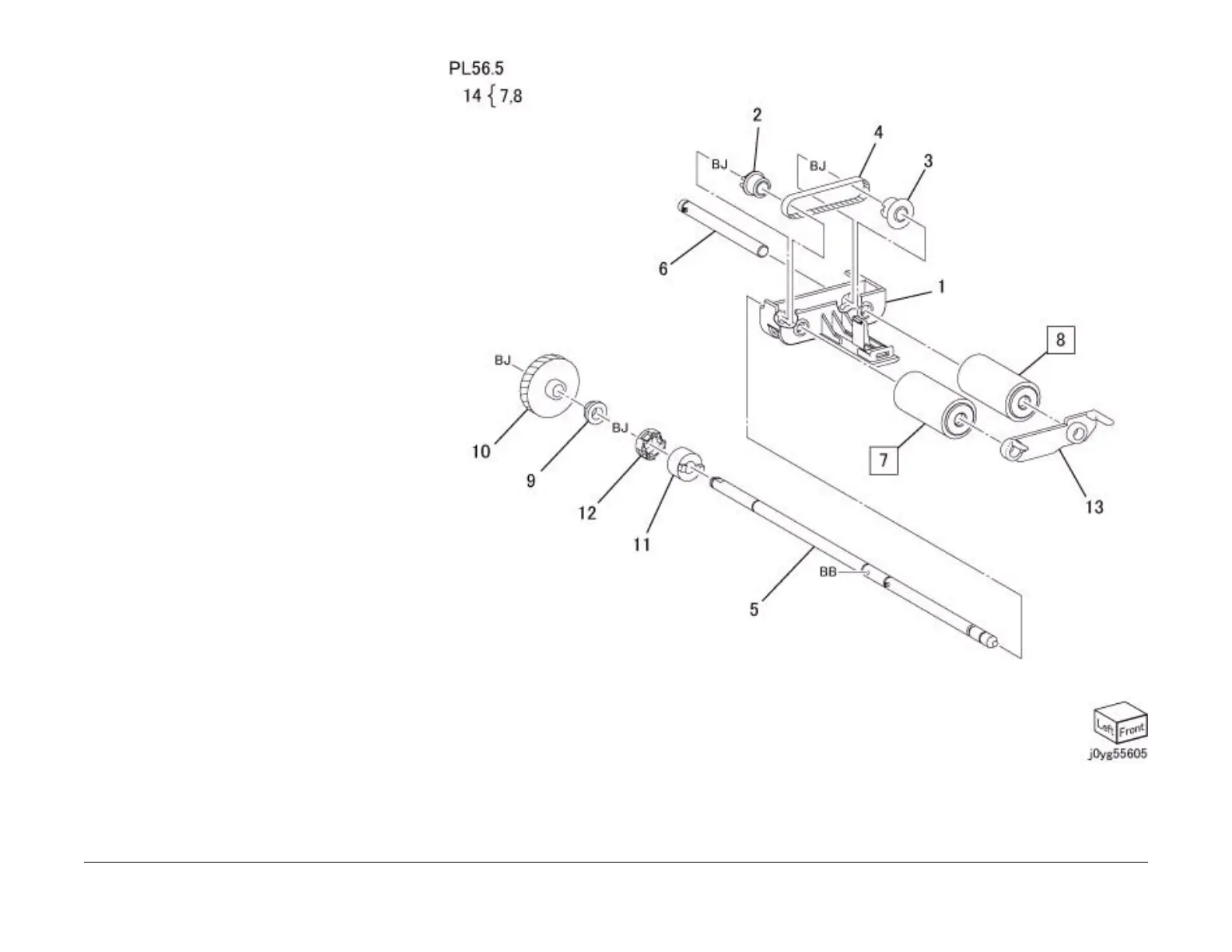

PL 56.5 Feed Roll Nudger Roll
Assembly
Item Parts No Description A.C.
1 – Housing 22F1
2 – Pulley (Feed) 22F2
3 – Pulley (Nudger) 22F3
4 423W 05354 Belt 22F4
5 – Shaft (Feed) 22F5
6 – Shaft (Nudger) 22F6
7 – DADF Feed Roll (P/O Item 14)
(REP 56.5.1)22F7
8 – DADF Nudger Roll (P/O Item 14)
(REP 56.5.1)22F8
9 413W 85459 Bearing 22F9
10 807E 40760 Helical Gear 22FB
11 – Brake 22FC
12 – Brake Holder 22FD
13 – Housing 22FE
14 604K 80750 DADF Feed/Nudger Roll Kit (Item
7,8)22FG

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
