Xerox WorkCentre 5021 Service Documentation

08/2012
4-30
WorkCentre 5021/5019
REP 9.1.1, REP 9.1.2
Initial Issue
Repairs and Adjustments

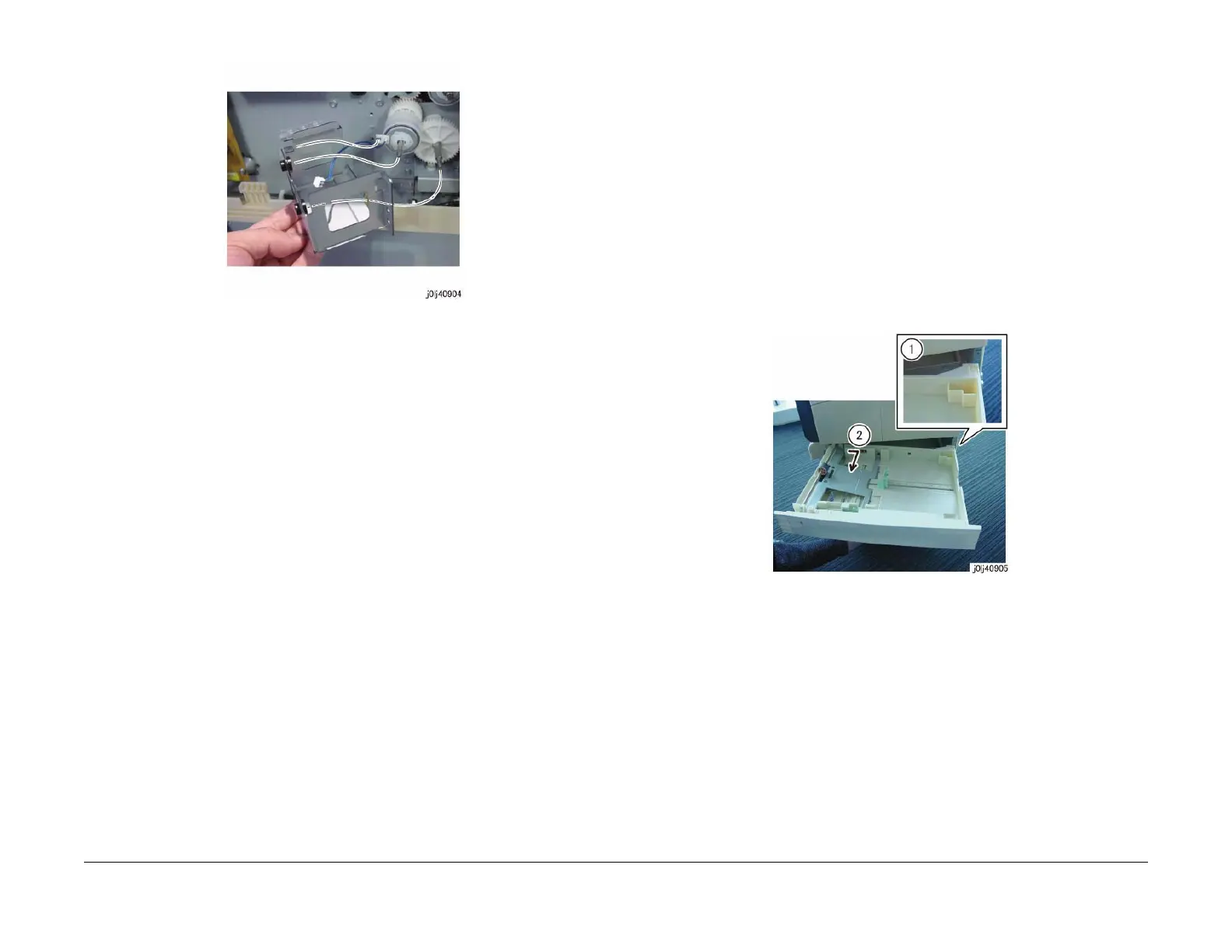

Figure 4 j0lj40904
REP 9.1.2 Tray 1
Parts List on PL 9.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the paper from Tray 1.
2. Pull out Tray 1 until the position where it is stopped by the stopper.
3. Remove Tray 1. (Figure 1)
(1) Lift up the front of Tray 1 and free the rear right side of Tray 1.
(2) Free the rear left side of Tray 1 in the direction of the arrow.
Figure 1 j0lj40905
Replacement
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
