08/2012
5-51
WorkCentre 5021/5019
PL 56.7
Parts List
Initial Issue

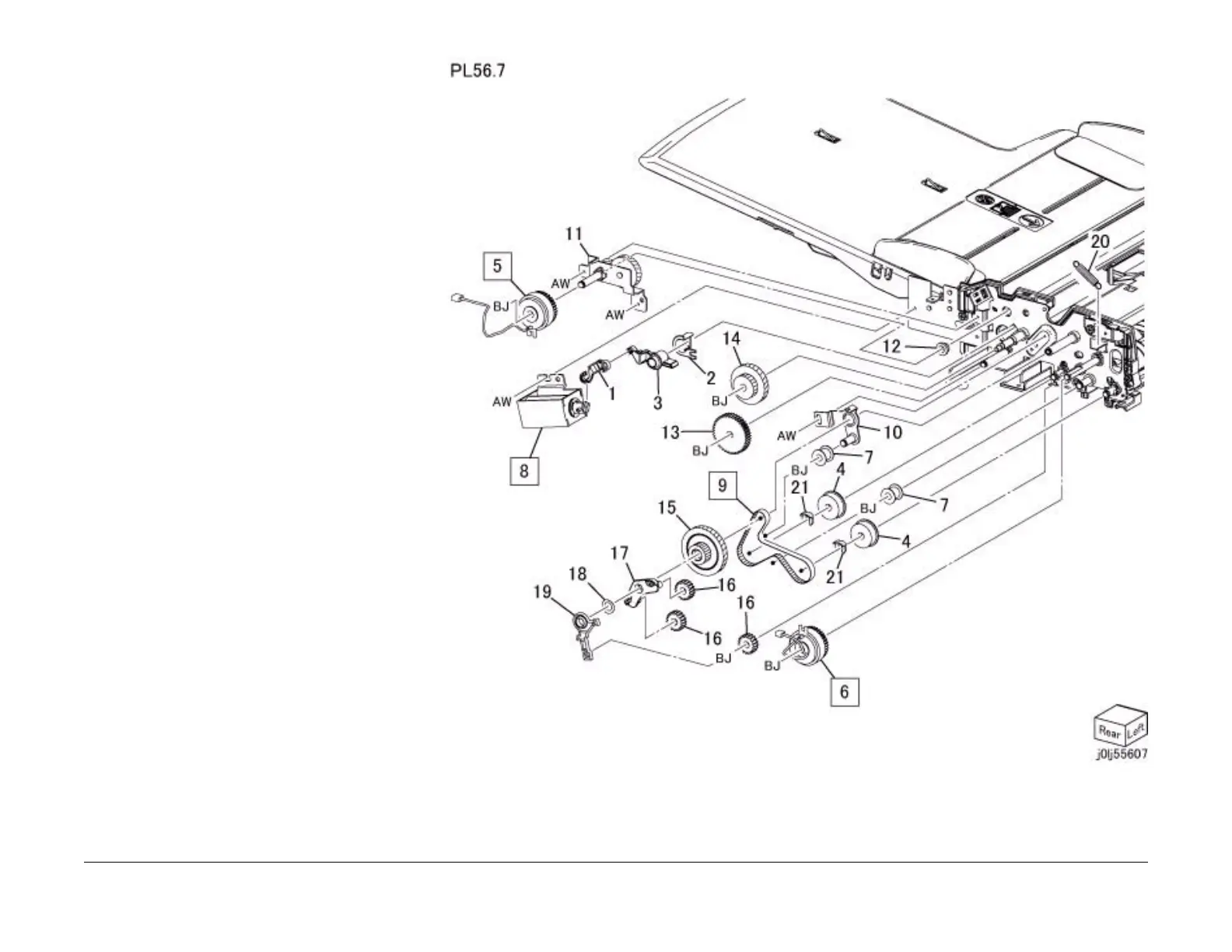

PL 56.7 DADF Feeder Rear Frame
Item Parts No Description A.C.
1 012E 18260 Release Link 22H1
2 013E 41200 Set Bearing 22H2
3 012E 18270 Exit Link 22H3
4 020E 46551 Pulley 22H4
5 121K 52310 DADF Feed Clutch (REP 99.1.1)
22H5
6 121K 52310 DADF Takeaway Clutch (REP
99.1.1)22H6
7 – Roll 22H7
8 121K 52470 Exit Nip Release Solenoid (REP
99.1.1)22H8
9 423W 32055 DADF Drive Belt (REP 56.7.1)
22H9
10 – Tension Bracket 22HB
11 049K 18190 Clutch Gear and Bracket 22HC
12 413W 85459 Bearing 22HD
13 807E 40790 Gear (42T) 22HE
14 807E 40800 Gear (40/24T) 22HF
15 807E 40830 Gear Pulley 22HG
16 807E 40840 Gear (19T) 22HH
17 868E 80570 Bracket 22HJ
18 899E 01573 Washer 22HK
19 012E 18290 Link 22HL
20 899E 01581 Spring 22HM
21 – KL-Clip 22HN
