Xerox WorkCentre 5021 Service Documentation

08/2012
4-8
WorkCentre 5021/5019
REP 1.3.2, REP 1.4.1
Initial Issue
Repairs and Adjustments

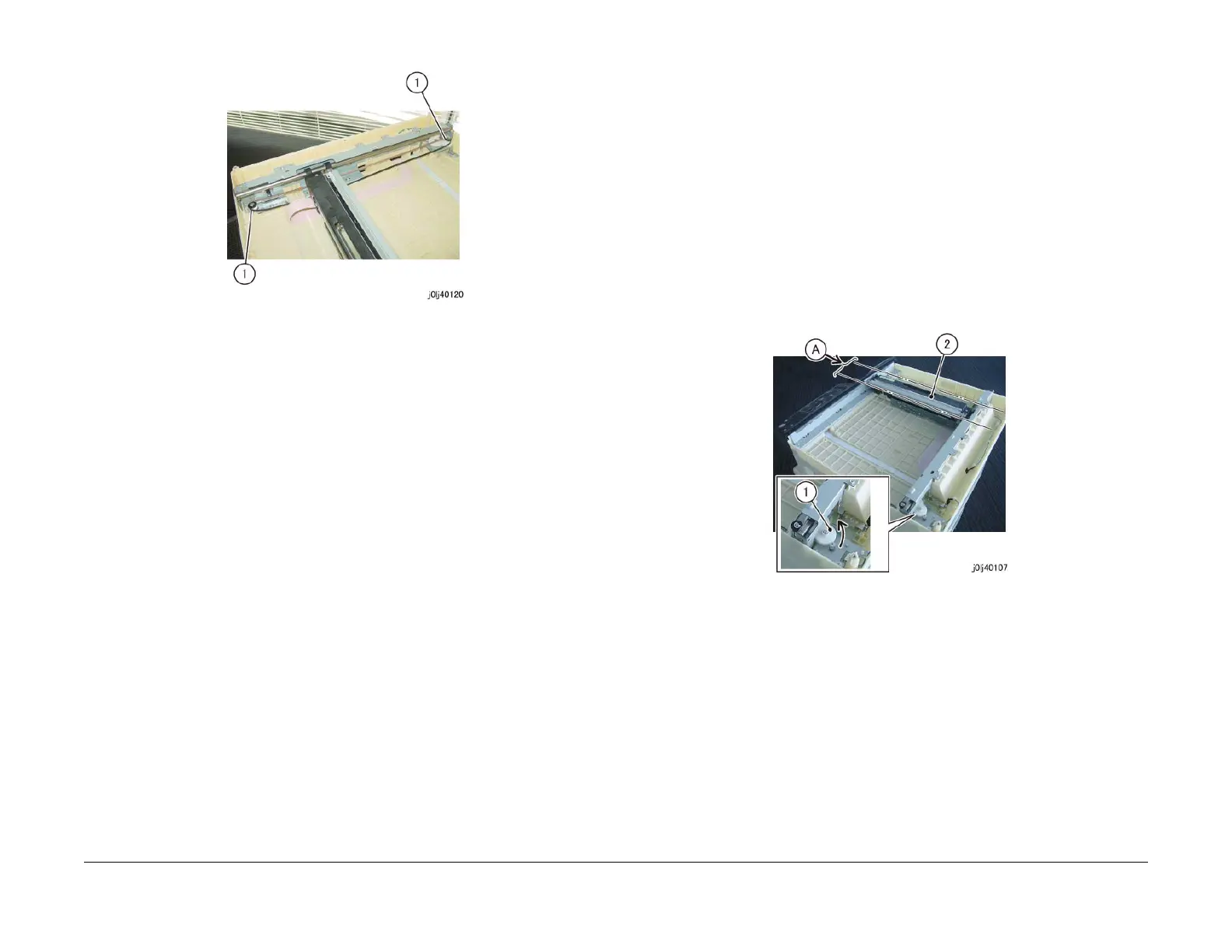

Figure 4 j0lj40120
Replacement
1. To install, carry out the removal steps in reverse order.
REP 1.4.1 Carriage Motor
Parts List on PL 1.4
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Platen Cover or the DADF. (REP 56.1.1)
2. Remove the IIT Top Cover. (REP 1.2.1)
3. Move the IIT Carriage to the opening of the Frame. (Figure 1)
(1) Rotate the gear in the direction of the arrow.
(2) Move the IIT Carriage to the opening (Arrow A) of the Frame.
Figure 1 j0lj40107
4. Relax the tension of the IIT Carriage Belt. (Figure 2)
(1) Remove the spring.
(2) Loosen the screw (x2).
