Xerox WorkCentre 5021 Service Documentation

08/2012
4-41
WorkCentre 5021/5019
REP 13.3.1, REP 13.3.2
Repairs and Adjustments
Initial Issue
Figure 10 j0lj41314
4. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
'Chain Link : 950-802'
Refer to [6.4.2.9 HFSI Counter Read/Clear].
REP 13.3.2 MSI Retard Pad
Parts List on PL 13.3
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The MSI Nudger Roll, the MSI Feed Roll, and the MSI Retard Pad must be replaced at
the same time.
1. Remove the MSI. (REP 13.1.1)
2. Remove the screws that secure the MSI Lower Cover at the bottom of the MSI. (Figure 1)
(1) Remove the Tapping Screw (x2).

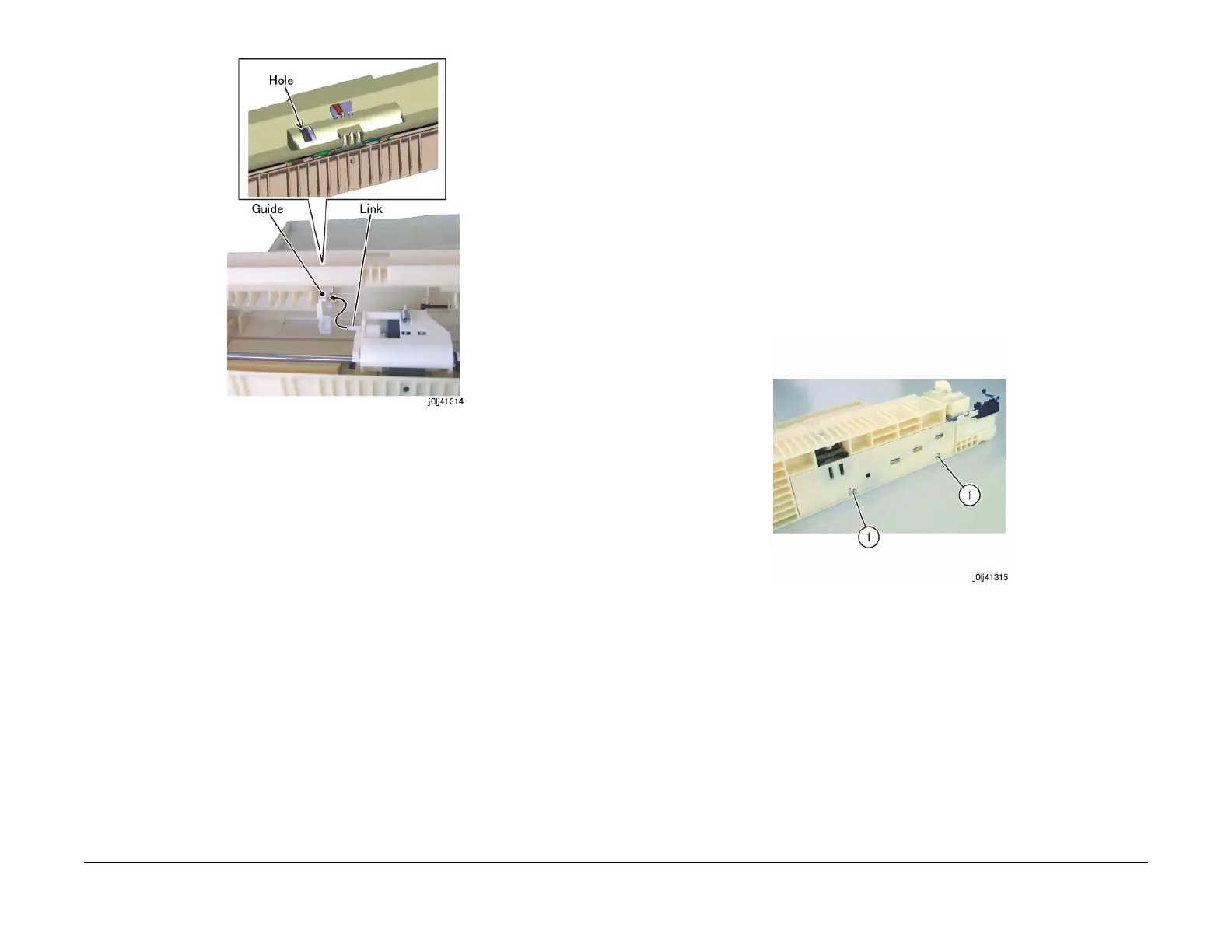

Figure 1 j0lj41315
3. Release the hook (x3) and release the boss (x3) from the installation holes to remove the
MSI Lower Cover. (Figure 2)
