Xerox WorkCentre 5021 Service Documentation

08/2012
4-40
WorkCentre 5021/5019
REP 13.3.1
Initial Issue
Repairs and Adjustments

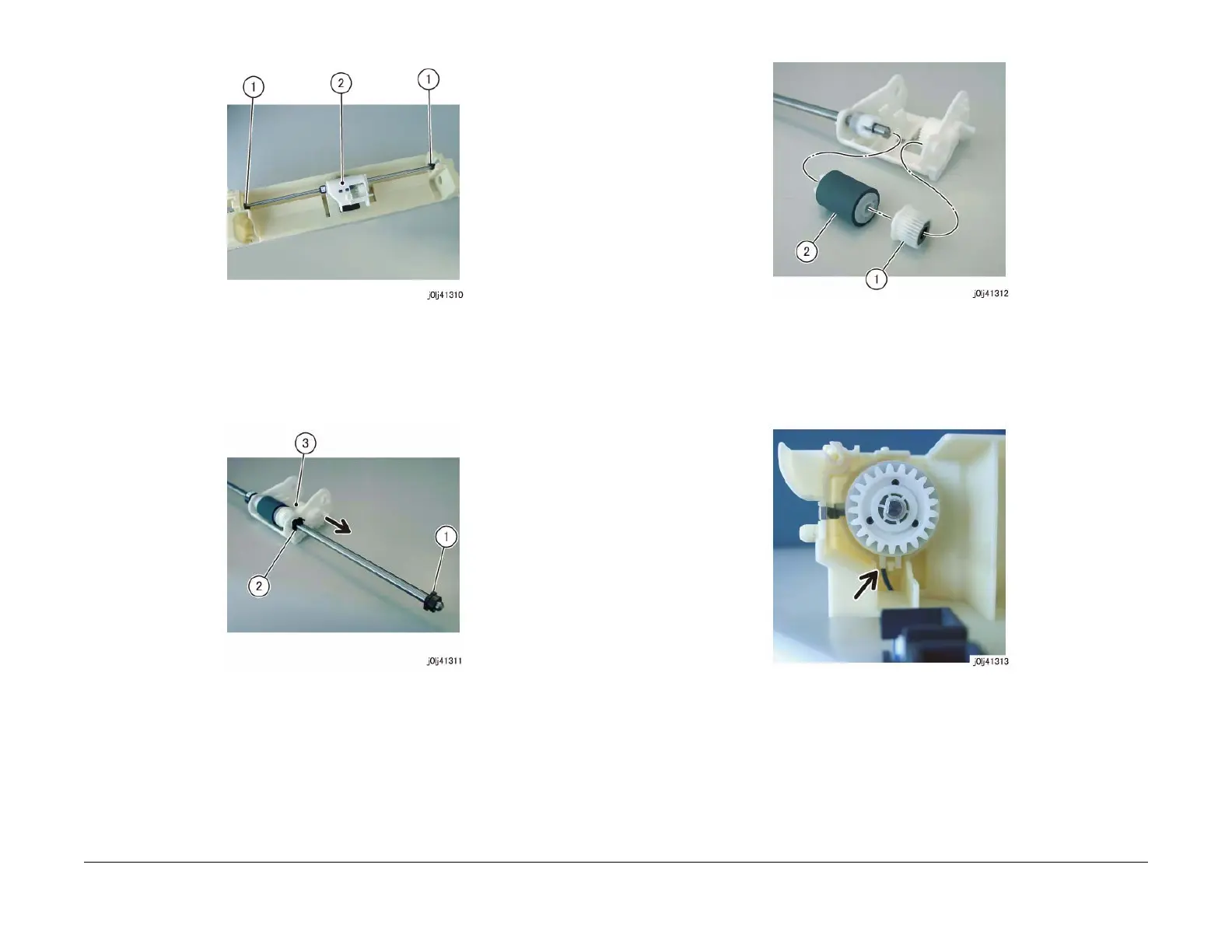

Figure 6 j0lj41310
8. Move the housing to the tip of the shaft. (Figure 7)
(1) Remove the Bearing.
(2) Remove the KL-Clip.
(3) Move the housing in the direction of the arrow until it is at the tip of the shaft.
Figure 7 j0lj41311
9. Remove the MSI Feed Roll. (Figure 8)
(1) Remove the gear.
(2) Remove the MSI Feed Roll.
Figure 8 j0lj41312
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the MSI Feed Clutch, align the Cutout of the MSI Feed Clutch to the Tab.
(Figure 9)
Figure 9 j0lj41313
3. When installing the MSI Top Cover, store the Link in the Guide of the MSI Top Cover. (Fig-
ure 10)
• After installing the MSI Top Cover, check and make sure that the Link is at the posi-
tion shown in the figure from the hole of the MSI Top Cover.
