REP 13.3.1
Repairs and Adjustments
Initial Issue
Figure 2 j0lj41306

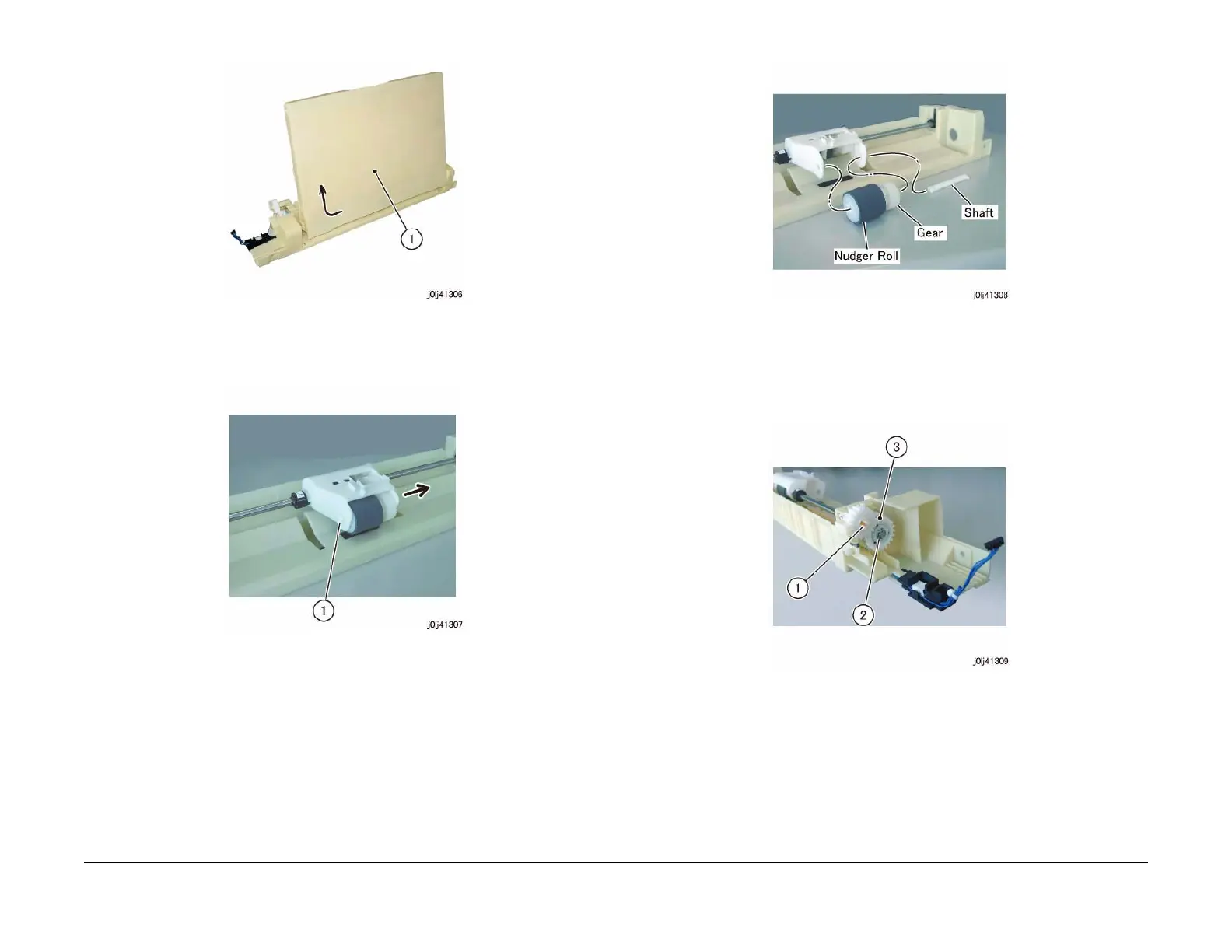

4. Remove the shaft of the MSI Nudger Roll. (Figure 3)
(1) Release the hook of the shaft and remove the shaft in the direction of the arrow.
Figure 3 j0lj41307
5. Remove the MSI Nudger Roll. (Figure 4)
Figure 4 j0lj41308
6. Shift the MSI Feed Clutch from the shaft. (Figure 5)
(1) Release the hook to remove the gear.
(2) Remove the E-Clip.
(3) Shift the MSI Feed Clutch from the shaft.
Figure 5 j0lj41309
7. Remove the MSI Feed Roll Assembly. (Figure 6)
(1) Remove the KL-Clip (x2).
(2) Remove the MSI Feed Roll Assembly.
