08/2012
4-26
WorkCentre 5021/5019
REP 8.1.1, REP 8.2.1
Initial Issue
Repairs and Adjustments

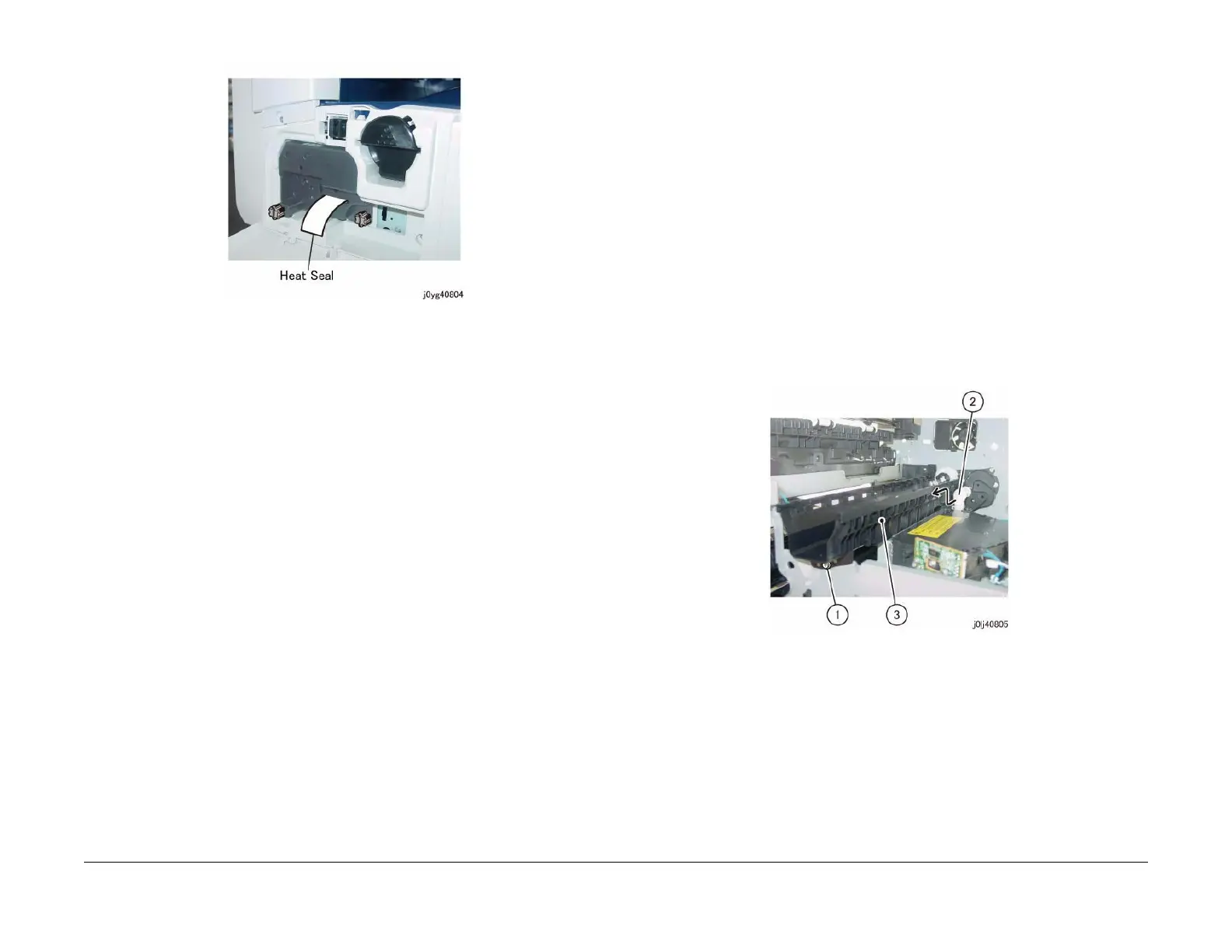

Figure 4 j0yg40804
REP 8.2.1 Cartridge Guide
Parts List on PL 8.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Drum Cartridge. (REP 8.1.1)
2. Remove the Toner Cartridge. (PL 8.1)
3. Remove the Front Cover. (REP 19.1.1)
4. Remove the Top Cover. (REP 19.1.2)
5. Remove the Cartridge Guide. (Figure 1)
(1) Remove the screw.
(2) Remove the Cartridge Guide from the shaft.
(3) Remove the Cartridge Guide in the direction of the arrow.
Figure 1 j0lj40805
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Cartridge Guide, insert the boss of the Cartridge Guide into the hole
for the boss. (Figure 2)
