Xerox WorkCentre 5021 Service Documentation

08/2012
4-73
WorkCentre 5021/5019
REP 56.6.1
Repairs and Adjustments
Initial Issue

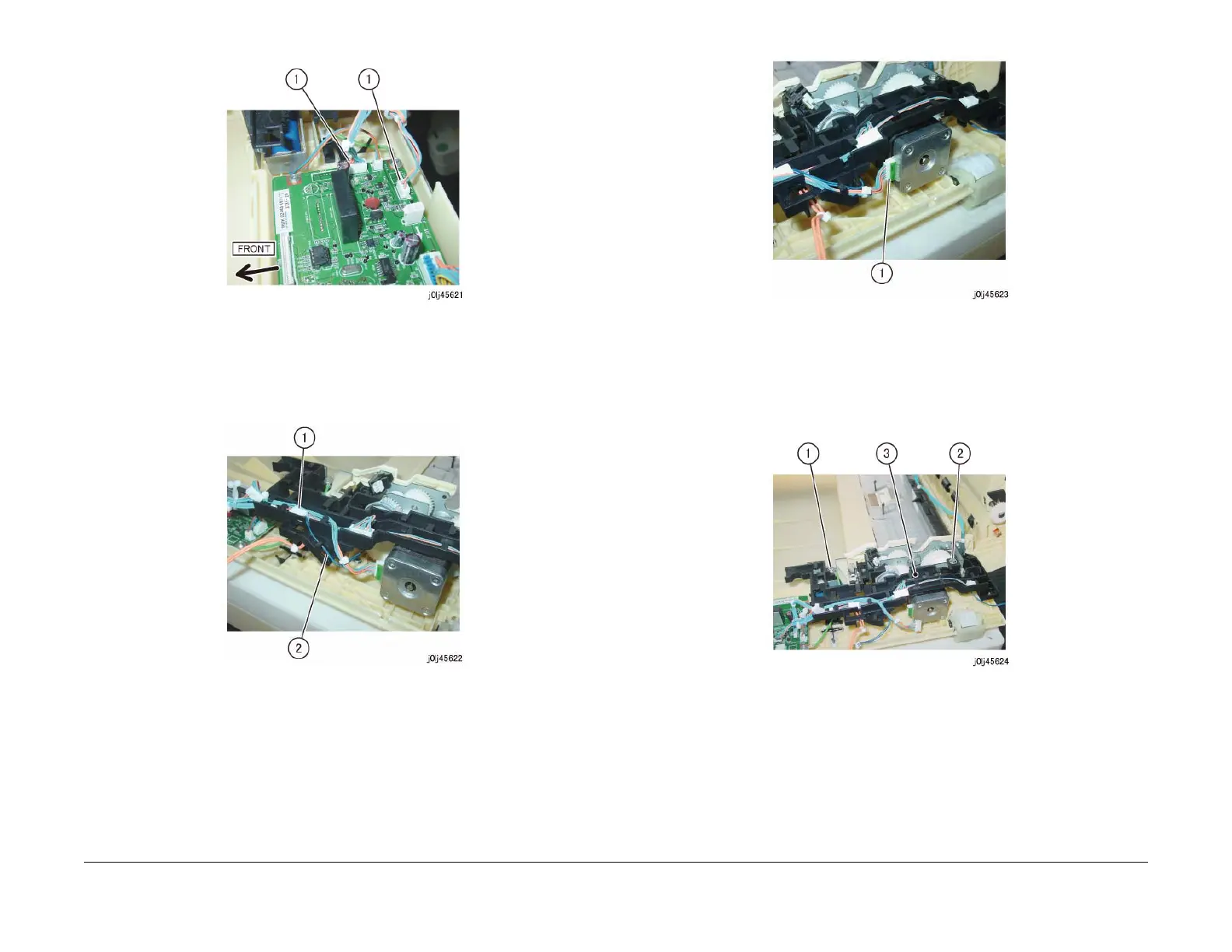

Figure 4 j0lj45621
8. Disconnect the connector of the DADF Feed Clutch and remove the wire harness from
the Harness Guide. (Figure 5)
(1) Disconnect the connector.
(2) Remove the wire harness from the Harness Guide.
Figure 5 j0lj45622
9. Disconnect the connector of the DADF Feed Motor. (Figure 6)
(1) Disconnect the connector.
Figure 6 j0lj45623
10. Remove the Harness Guide and the wire harness. (Figure 7)
(1) Remove the screw and the Ground Wire.
(2) Remove the screw.
(3) Remove the Harness Guide and the wire harness.
Figure 7 j0lj45624
Reference: This shows the removed Harness Guide and wire harness. (Figure 8)

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
