Xerox WorkCentre 5021 Service Documentation

08/2012
4-6
WorkCentre 5021/5019
REP 1.3.1
Initial Issue
Repairs and Adjustments

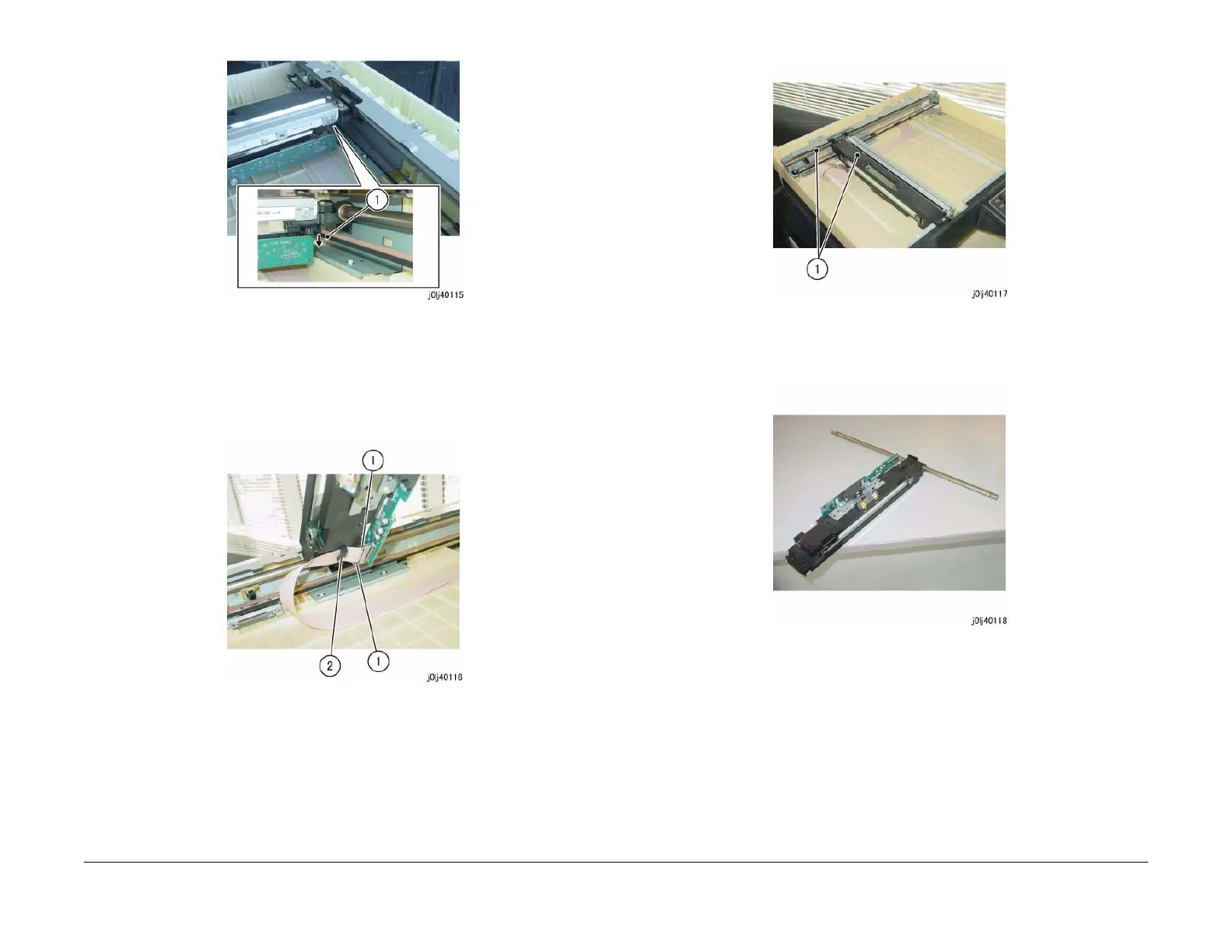

Figure 2 j0lj40115
5. Disconnect the connector at the bottom of the IIT Carriage. (Figure 3)
(1) Release the hook (x2) and disconnect the connector.
• Use one hand to hold the CCD PWB firmly in place so that it does not move
(does not warp) and disconnect the connector.
(2) Remove the CCD Cable from the clamp.
Figure 3 j0lj40116
6. Remove the IIT Carriage and Shaft. (Figure 4)
(1) Remove the IIT Carriage and Shaft.
Figure 4 j0lj40117
7. Place the removed IIT Carriage and Shaft upside down and separate the IIT Carriage
from the Shaft. (Figure 5)
Figure 5 j0lj40118
Replacement
1. To install, carry out the removal steps in reverse order.
2. When connecting the connector to the CCD PWB, use one hand to hold the CCD PWB
firmly in place so that it does not move (does not warp).
3. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
'Chain Link : 956-804'
Refer to [6.4.2.9 HFSI Counter Read/Clear].

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
