Xerox WorkCentre 5021 Service Documentation

08/2012
4-76
WorkCentre 5021/5019
REP 56.7.1
Initial Issue
Repairs and Adjustments

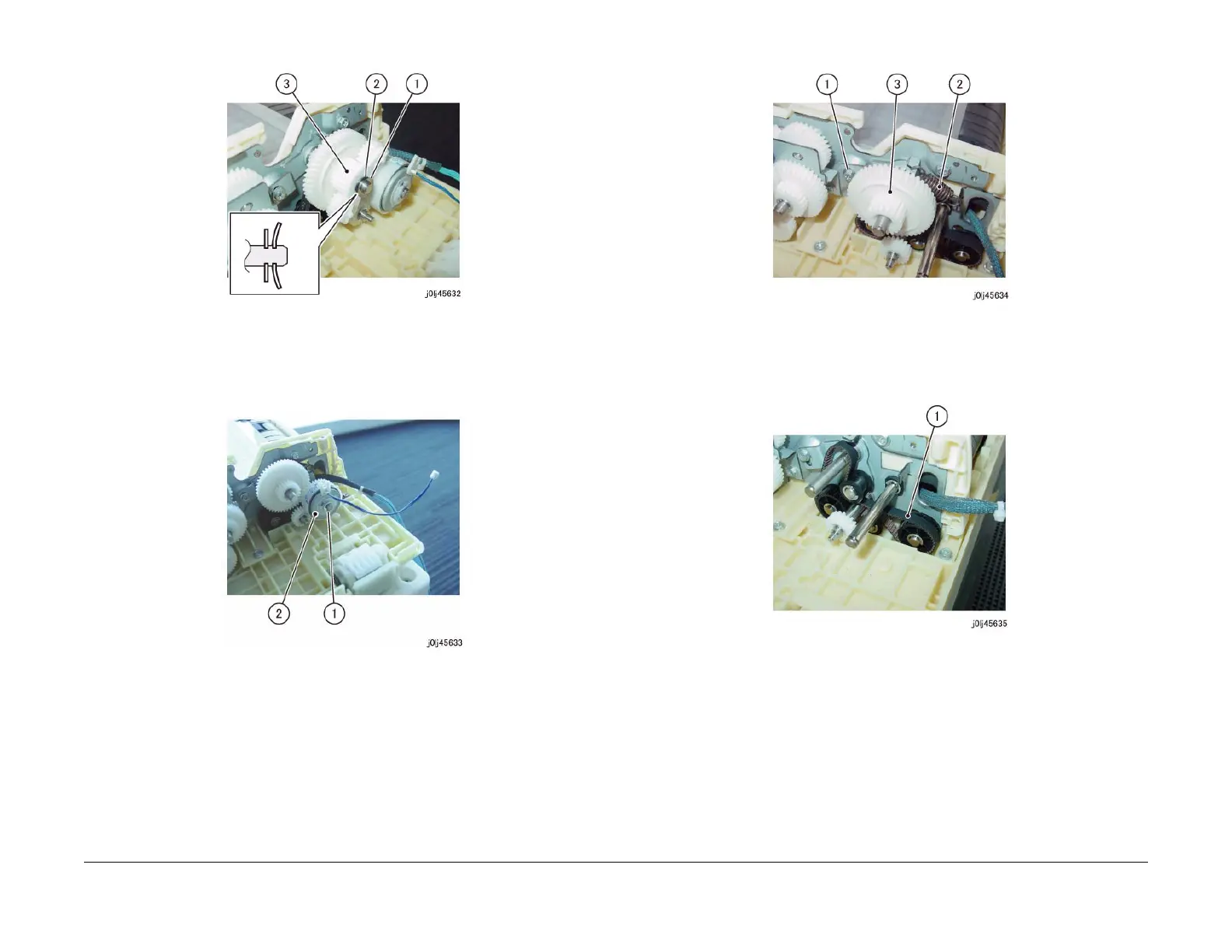

Figure 2 j0lj45632
8. Remove the DADF Takeaway Clutch. (Figure 3)
(1) Remove the E-Clip.
(2) Remove the DADF Takeaway Clutch.
Figure 3 j0lj45633
9. Remove the gear. (Figure 4)
(1) Loosen the screw.
(2) Remove the spring.
(3) Remove the gear.
Figure 4 j0lj45634
10. Remove the DADF Drive Belt. (Figure 5)
(1) Remove the DADF Drive Belt.
Figure 5 j0lj45635
Replacement
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
