08/2012
4-13
WorkCentre 5021/5019
REP 1.6.1
Repairs and Adjustments
Initial Issue

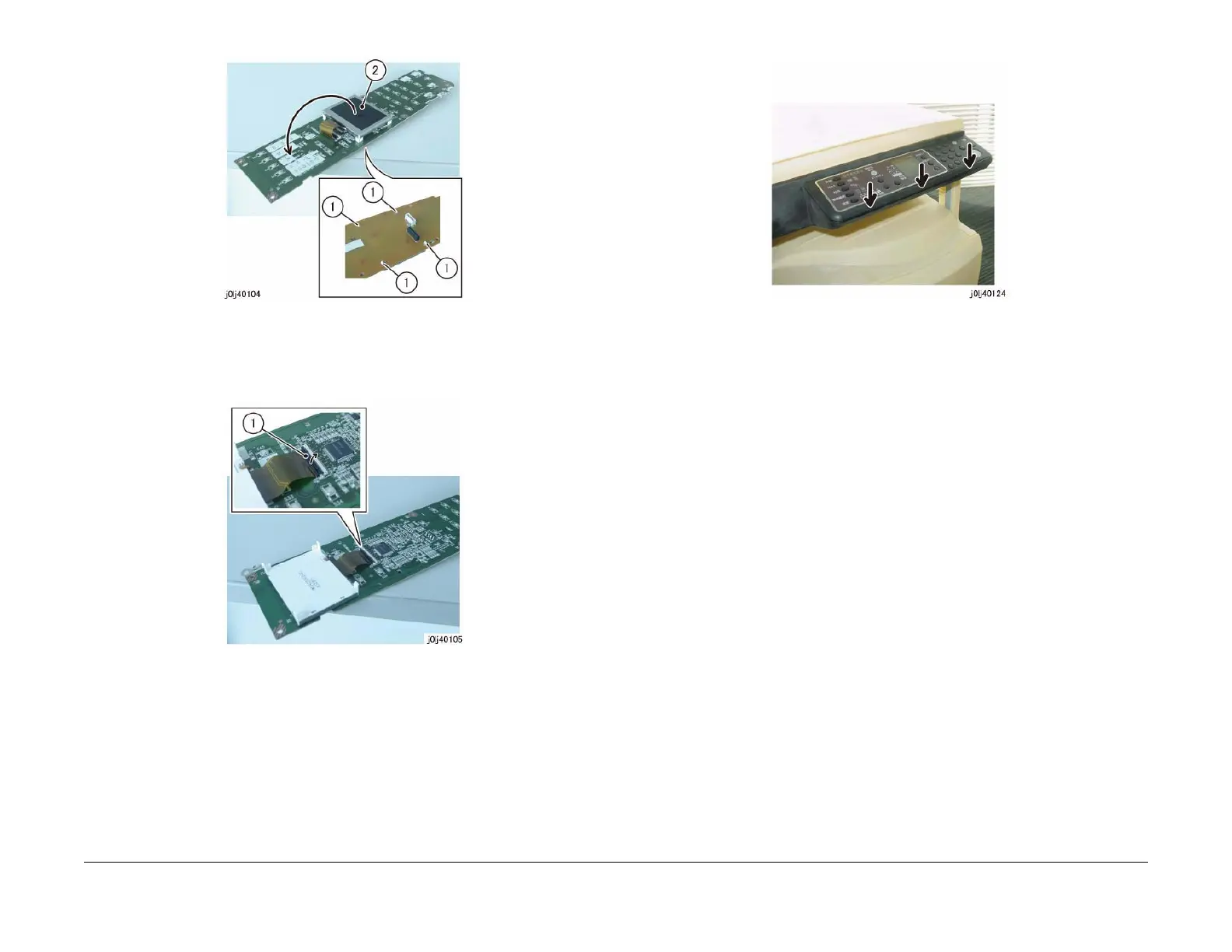

Figure 4 j0lj40104
5. Disconnect the connector of the LCD Display. (Figure 5)
(1) Open the block of the Connector Housing in the direction of the arrow and discon-
nect the Flat Cable.
Figure 5 j0lj40105
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Control Panel, press the hook (x3) of the Control Panel in the direction
of the arrow to affix the Control Panel securely. (Figure 6)
Figure 6 j0lj40124
To Next Page
