Xerox WorkCentre 5021 Service Documentation

08/2012
4-18
WorkCentre 5021/5019
REP 3.1.2
Initial Issue
Repairs and Adjustments
(2) Remove the Fusing Unit Rear Bracket from the stud.

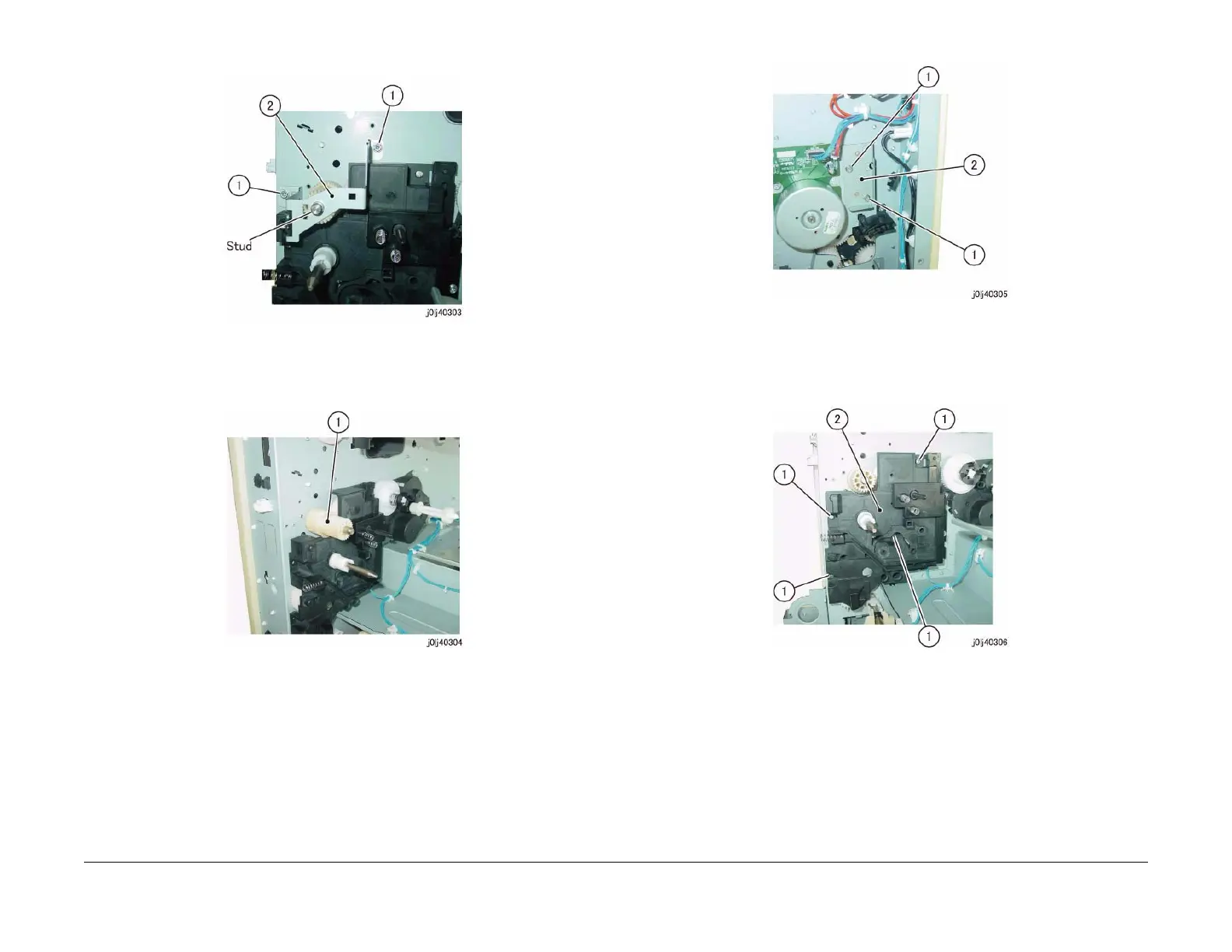

Figure 2 j0lj40303
15. Remove the gear. (Figure 3)
(1) Remove the gear.
Figure 3 j0lj40304
16. Remove the Stud Bracket. (Figure 4)
(1) Remove the screw (x2).
(2) Remove the Stud Bracket.
Figure 4 j0lj40305
17. Remove the Main Drive Housing. (Figure 5)
(1) Remove the screw (x4).
(2) Remove the Main Drive Housing.
Figure 5 j0lj40306
Replacement
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
