08/2012
4-99
WorkCentre 5021/5019
ADJ 56.1.2
Repairs and Adjustments
Initial Issue
• Reduce/Enlarge: '100%'
• No. of Copies: '2'

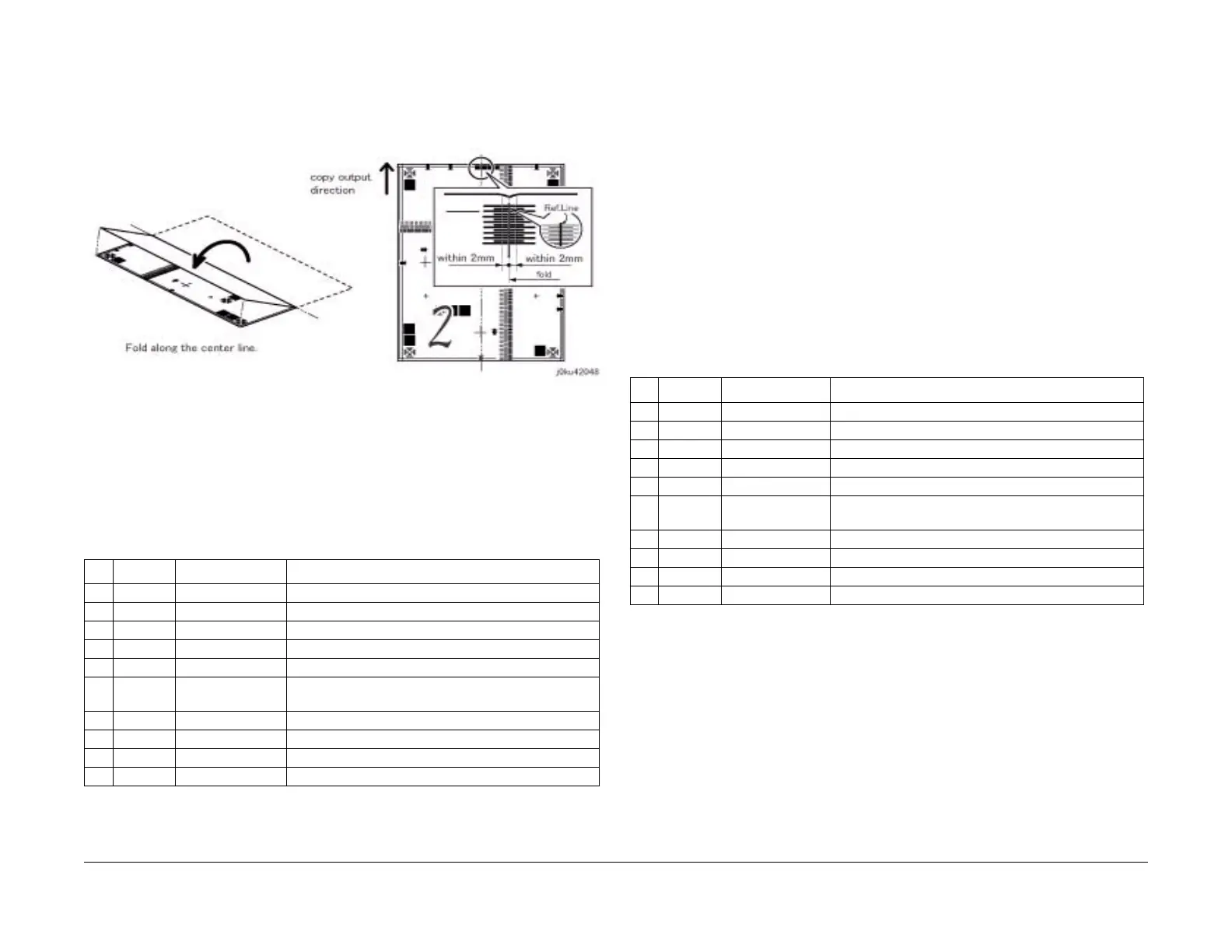

8. Make a Single Fold on the two copies. Check the fold line with the reference line on the
Test Chart.
(Figure 2)
Figure 2 j0ku42048
9. Check that the fold line is within 2.0mm from the reference line.
If the value is not specified, carry out the following adjustment procedure.
Adjustment
• Side 1 Adjustment
1. Enter the CE Mode to perform correction for all sizes.
Enter the value to perform correction for all sizes in the NVM [711-272].
2. Enter the value to perform correction for each size in the NVM [715-056 to 072].
3. If it is not within the specified range in Check Step 5, change the NVM value.
– By increasing the NVM value, the image moves towards the right.
(an increment of 1 in NVM = 0.1 mm)
4. Repeat Check Steps 1 to 5 and Adjustment Steps 1 to 3 until the measurement is
within the specified range.
• Side 2 Adjustment
1. After adjusting for 1 Sided copies, place Side 1 of the Test Chart face down and
make copies using the following settings to check the Side Registration for 2 Sided
copies.
– Paper Tray: 'A3'
– Reduce/Enlarge: '100%'
– No. of Copies: '2'
– 2 Sided: 2 -> 1 Sided
2. Check the Side Regi of the 2 copies with the above-mentioned items in 'Check'.
3. If adjustment is required, enter the CE Mode to perform correction for all sizes, and
then adjust each document size width using the following NVM.
Enter the value to perform correction for all sizes in the NVM [711-274].
4. Enter the value to perform correction for each size in the NVM [715-057 to 073].
Table 1 Side 1 of 1 Sided or 2 Sided mode
NVM Document Width Document Size
1 711-272 For all sizes For all sizes
2 715-056 139.7~148mm A5 SEF, 5.5x8.5' SEF
3 715-058 182~194mm B5 SEF, 16K SEF
4 715-060 203.2mm 8x10' SEF, 8x10.5' SEF
5 715-062 210mm A4 SEF, A5 LEF
6 715-064 214.9~215.9mm Letter SEF, Legal SEF, 5.5x8.5' LEF, 8.46x12.4' SEF,
8.5x13' SEF
7 715-066 254~257mm B4 SEF, B5 LEF, 8x10' LEF
8 715-068 266.7~267mm 16K LEF, 8K LEF, 8x10.5' LEF
9 715-070 279.4mm Letter LEF, 11x15' SEF, 11x17' SEF
10 715-072 297mm A4 LEF, A3 SEF
Table 2 Side 2 of 2 Sided mode
NVM Document Width Document Size
1 711-274 For all sizes For all sizes
2 715-057 139.7~148mm A5 SEF, 5.5x8.5' SEF
3 715-059 182~194mm B5 SEF, 16K SEF
4 715-061 203.2mm 8x10' SEF, 8x10.5' SEF
5 715-063 210mm A4 SEF, A5 LEF
6 715-065 214.9~215.9mm Letter SEF, Legal SEF, 5.5x8.5' LEF, 8.46x12.4' SEF,
8.5x13' SEF
7 715-067 254~257mm B4 SEF, B5 LEF, 8x10' LEF
8 715-069 266.7~267mm 16K LEF, 8K LEF, 8x10.5' LEF
9 715-071 279.4mm Letter LEF, 11x15' SEF, 11x17' SEF
10 715-073 297mm A4 LEF, A3 SEF
