Xerox WorkCentre 5021 Service Documentation

08/2012
4-101
WorkCentre 5021/5019
ADJ 56.1.3
Repairs and Adjustments
Initial Issue

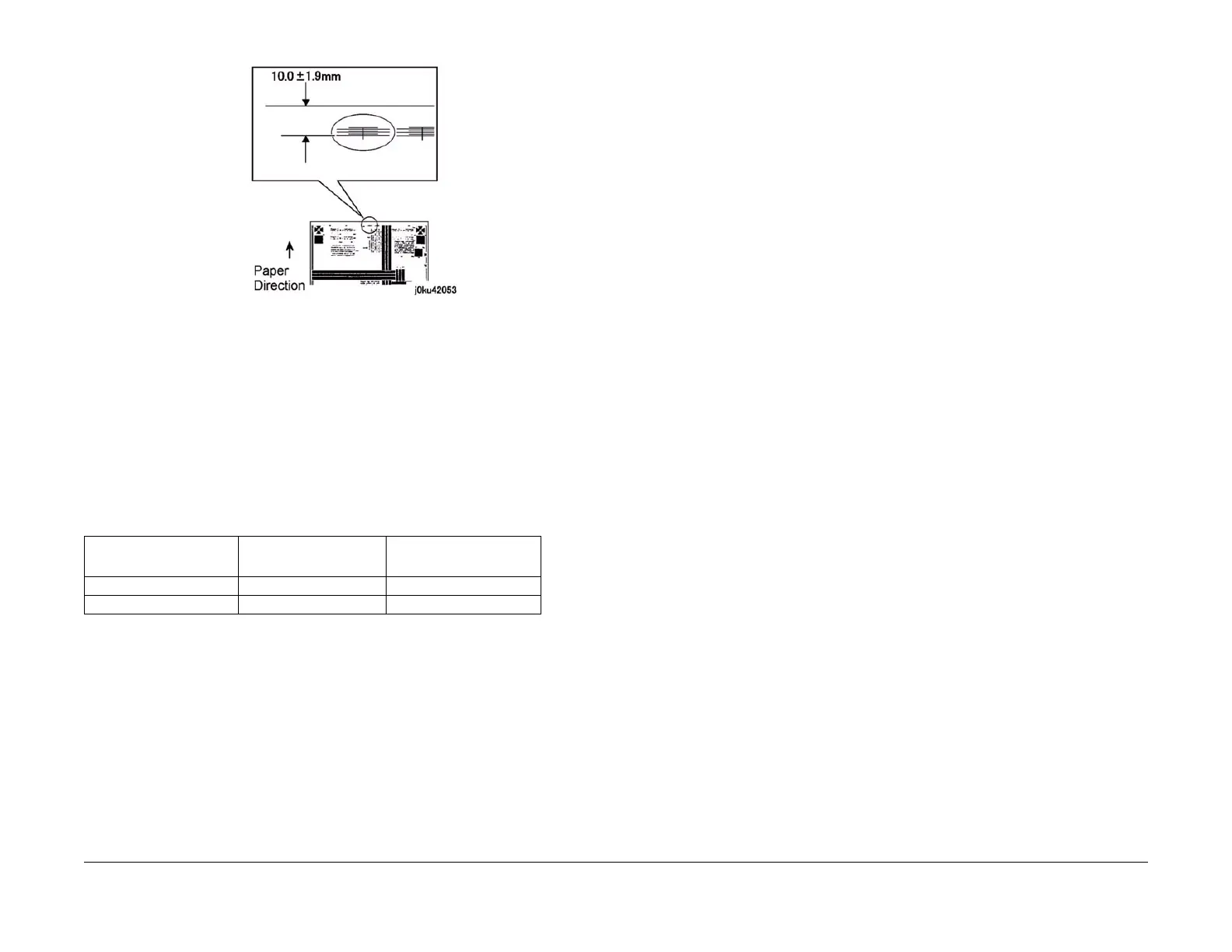

Figure 2 j0ku42053
Adjustment
1. Input the NVM [711-141].
2. Adjust to the specified range (10 +/-1.9 mm).
If the distance between the Lead Edge and the reference value is
• 12.0 mm or higher, increase the NVM value.
• 8.0 mm or lower, decrease the NVM value.
(NVM1Step=0.1mm)
3. Repeat the procedure until the value is within the specified range (10 +/-1.9 mm).
As there will be differences in the Regi according to the ratio, adjust the following NVM.
Table 2
NVM
Basic Scan Speed
[mm/s] Reduce / Enlarge
NVM [711-022] 165.0 100.0%
NVM [711-024] 82.5 Other than 100.0%
