Xtralis ADPRO FastTrace 2 series User Manual

Hardware Installation Manual ADPRO
®
FastTrace™ 2 Series
22 21790_05

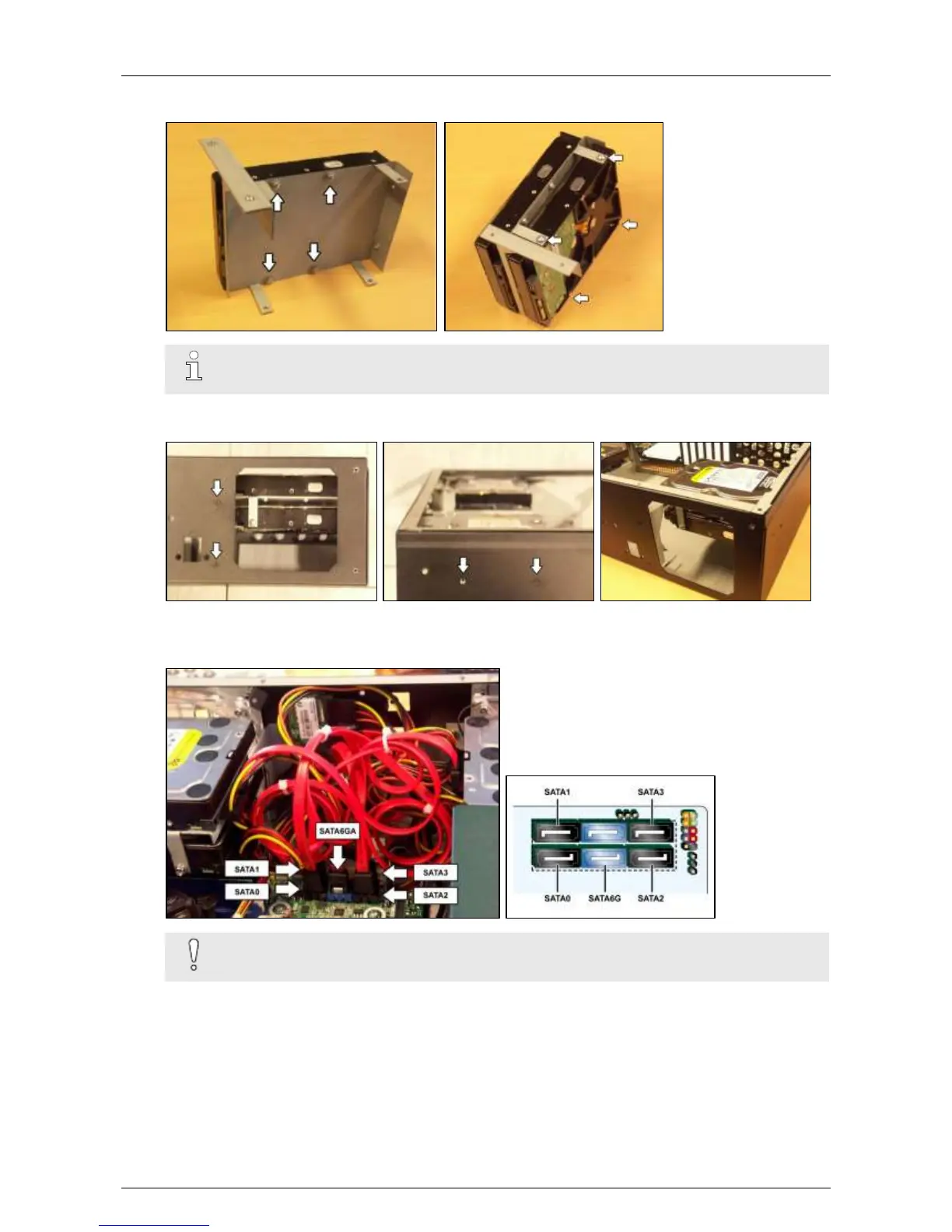

7. Fix the third disk on the top side of the support for disk 3 and 4. If necessary, fix the fourth disk on the
bottom side of the same support.
Note
Make sure to install the disk on the top side of the support first.
8. Fix the support to the casing with 4 screws (#17439080): 2 at the front, and 2 at the right side of the
casing.
9. Connect disk 3 to the SATA3 connector on the motherboard with a SATA cable (#1652087*).
10. If necessary, connect disk 4 to the SATA6GA connector on the motherboard with a SATA cable
(#1652087*).
Caution!
Do not bend the SATA cables too sharply to prevent cable damage.
11. For the power supply to the disk, take an unused SATA power cable and connect it as follows:
- Use the connector that is closest to the power supply for disk 4.
- Use the next connector for disk 3.
