ADPRO

FastTrace™ 2 Series Hardware Installation Manual

21790_05 85

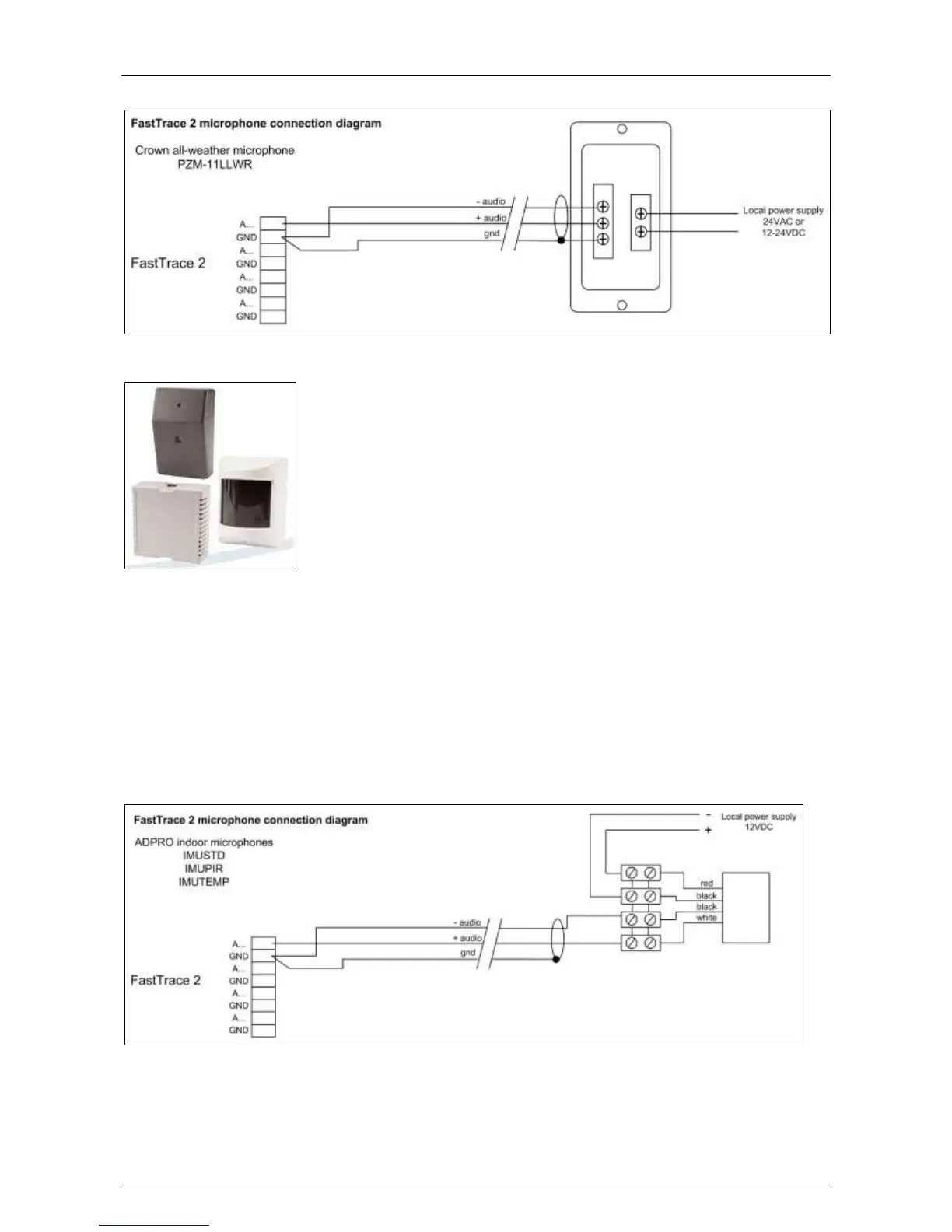

Wiring Diagram

17.1.2.2 ADPRO Microphones IMUSTD, IMUPIR, IMUTEMP

Specifications

 IMUSTD = standard microphone

 IMUPIR = microphone with PIR detector appearance

 IMUTEMP = microphone with heat detector appearance

 Designed for indoor use

 Power supply: 12 VDC from regulated power supply

 Current consumption: 200–400 mA

Wiring Diagram
