Hardware Installation Manual ADPRO

FastTrace™ 2 Series

86 21790_05

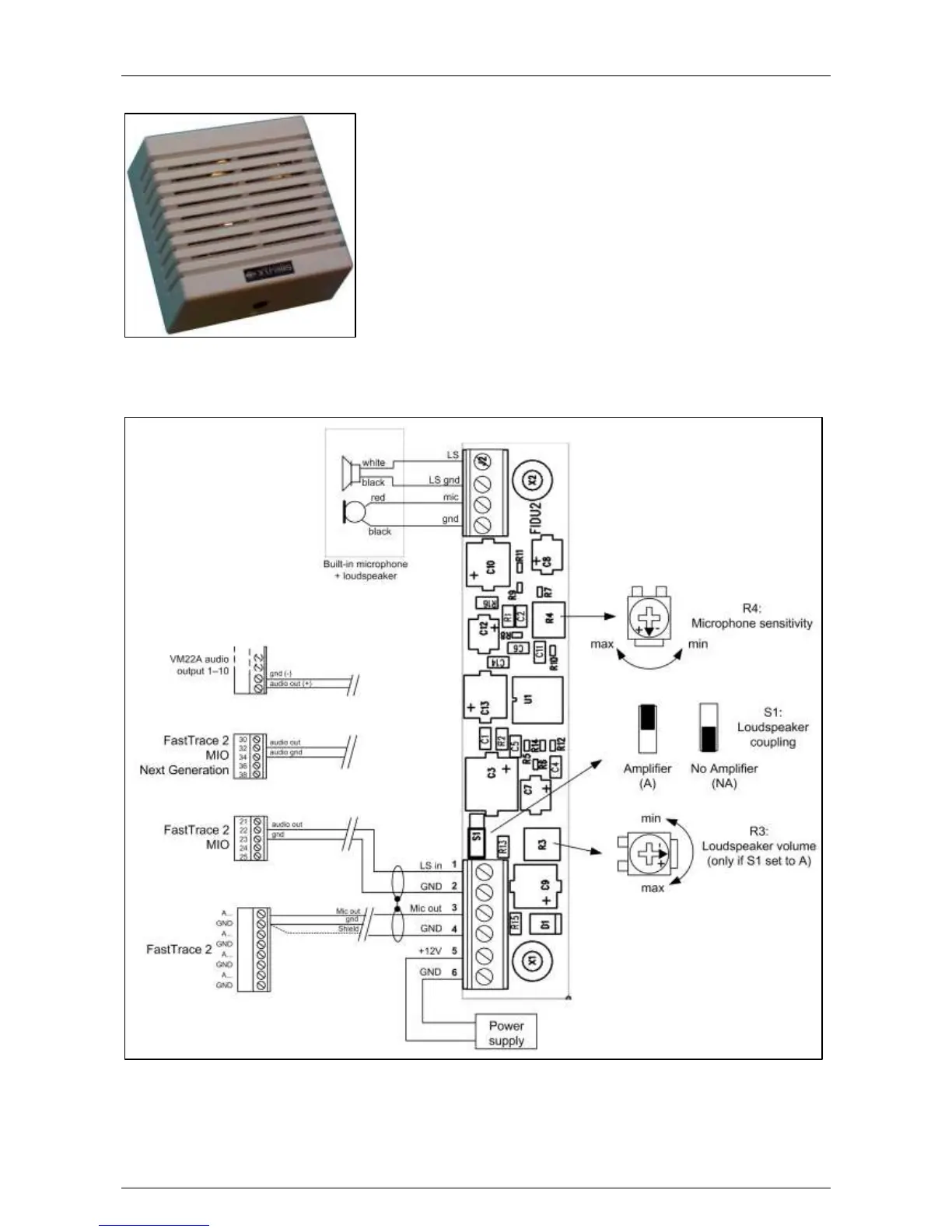

17.1.2.3 ADPRO Audio Unit

For more information, see the ADPRO Audio Unit Technical Datasheet.

Wiring Diagram
