Yamaha E40J - Disassembling the Propeller Shaft Assembly; Disassembling the Propeller Shaft Housing; Removing the Propeller Shaft Housing Assembly

LOWR
6-13
6F65G11
Lower unit

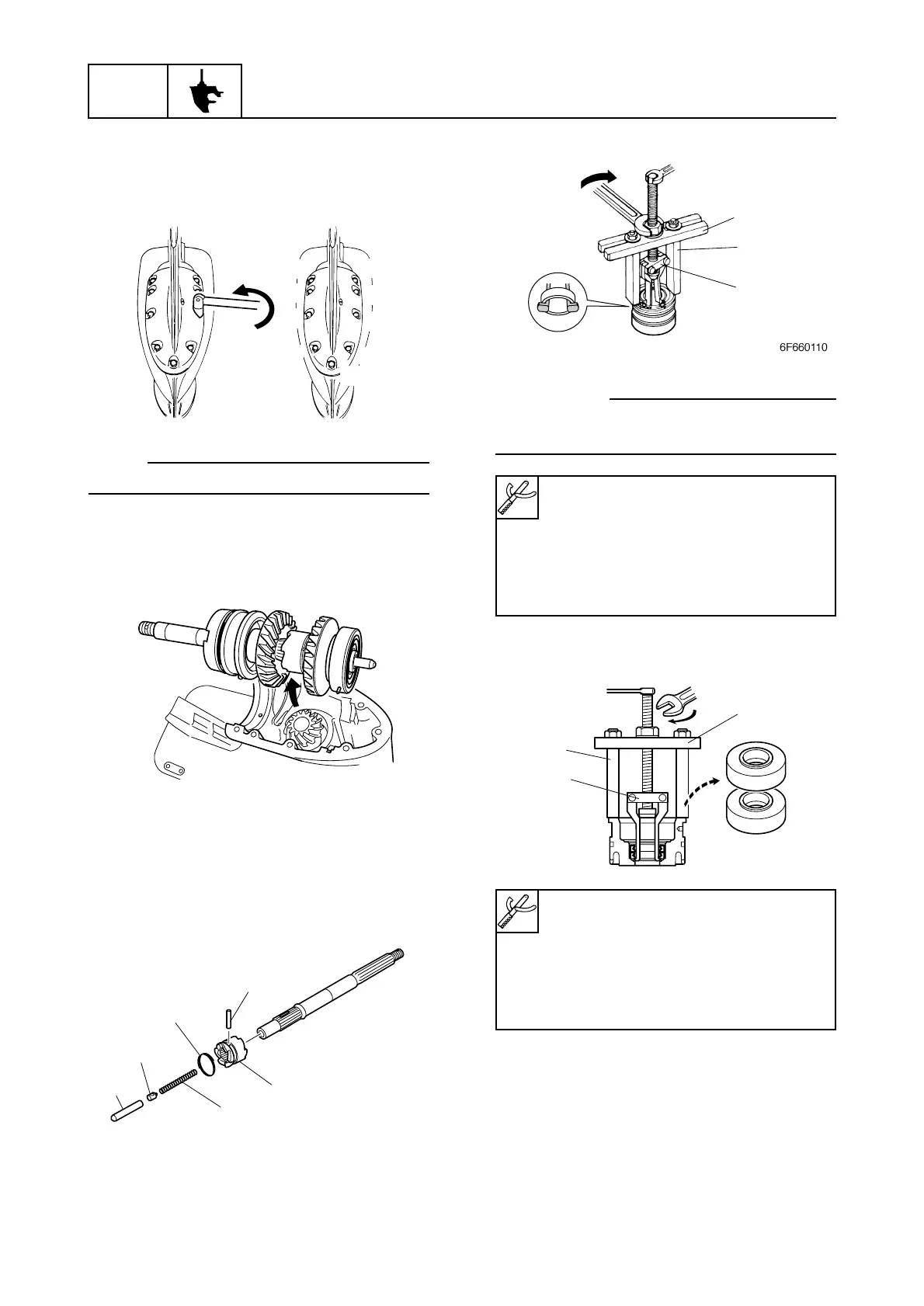

Removing the propeller shaft hous-
ing assembly
1. Remove the bolts, then separate the
lower case cap.
NOTE:
Loosen the bolts in sequence as shown.
2. Remove the propeller shaft housing
assembly.
Disassembling the propeller shaft
assembly
1. Remove the spring 1, then the cross pin
2, dog clutch 3, spring 4, slider 5, and
shift plunger 6
Disassembling the propeller shaft
housing
1. Remove the reverse gear.
2. Remove the ball bearing.
cC
Do not reuse the bearing, always replace
it with a new one.
3. Remove the oil seals.
6F660600
z
x
c
v
b
n
m
,
.
1
2
3
6F660610
6F660630
4
5
6
1
2
3
4
5
6
6F660080
Stopper guide plate 1:
90890-06501
Stopper guide stand 2:
90890-06538
Bearing puller assembly 3:
90890-06535
Stopper guide plate 4:
90890-06501
Stopper guide stand 5:
90890-06538
Bearing puller assembly 6:
90890-06535
