6F65G11
5-16
9
8
7
6
5
4
3
2
1
Power unit

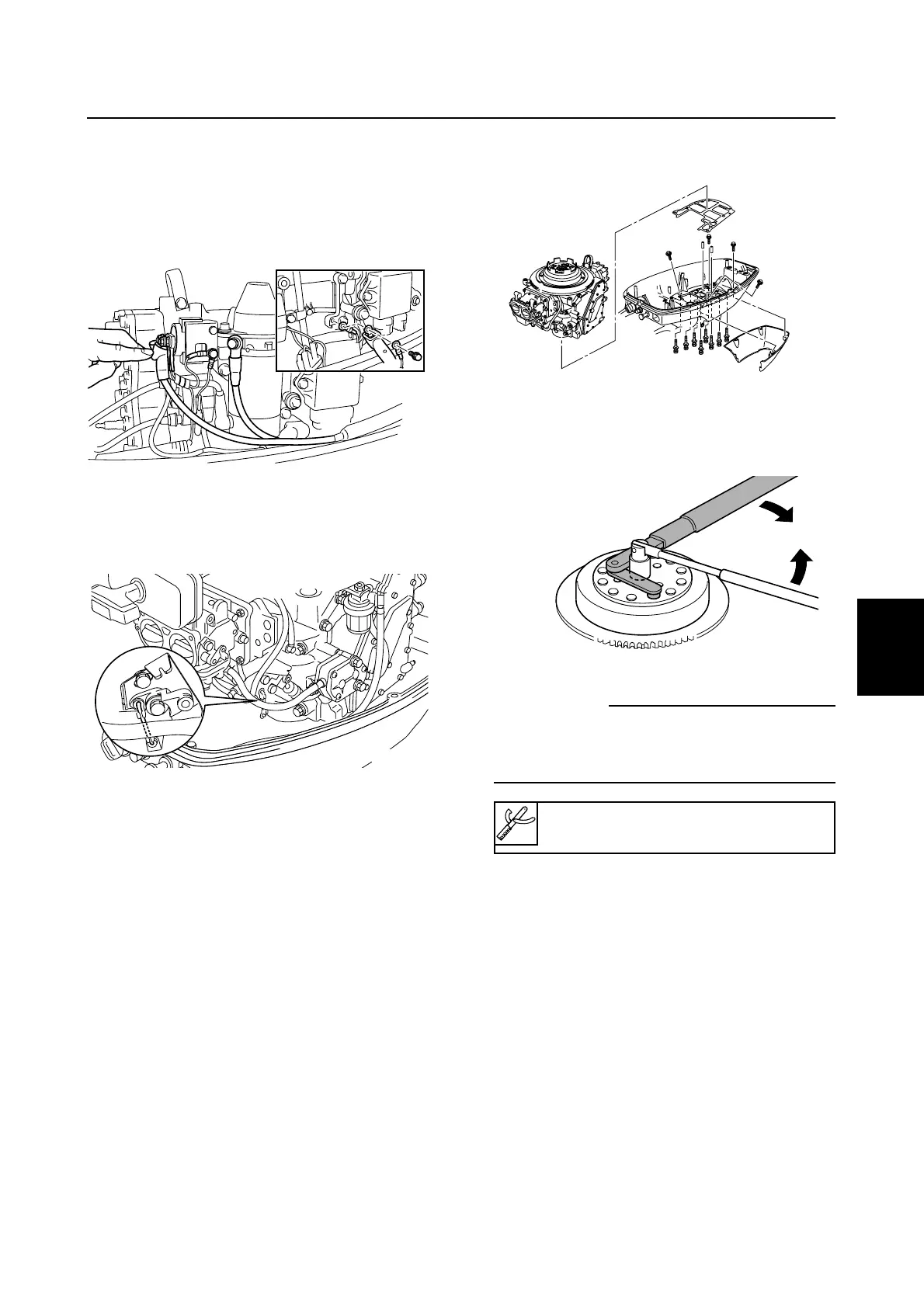

5. Disconnect the remote control cables
(remote control model) or throttle cables
(tiller handle model).
6. Disconnect the battery leads and ground
leads. (WH, W)
7. Disconnect the engine start switch cou-
pler from wiring harness.(WH)
8. Disconnect the shift link rod 5.
9. Disconnect the engine stop lanyard
switch leads (MH, WH), CDI unit cou-
plers, Ignition coil leads and rectifier
(WH, W) leads, thermoswitch leads, fuel
hose and pilot water hose.
10. Remove the apron, and then remove the
power unit by removing the bolts.
Removing the flywheel magnet
1. Remove the starter pulley, and then
loosen the flywheel magnet nut.
cC
Apply force in the direction of the arrows
shown. While working, do not allow the
flywheel holder to slip off the flywheel.
To Next Page
