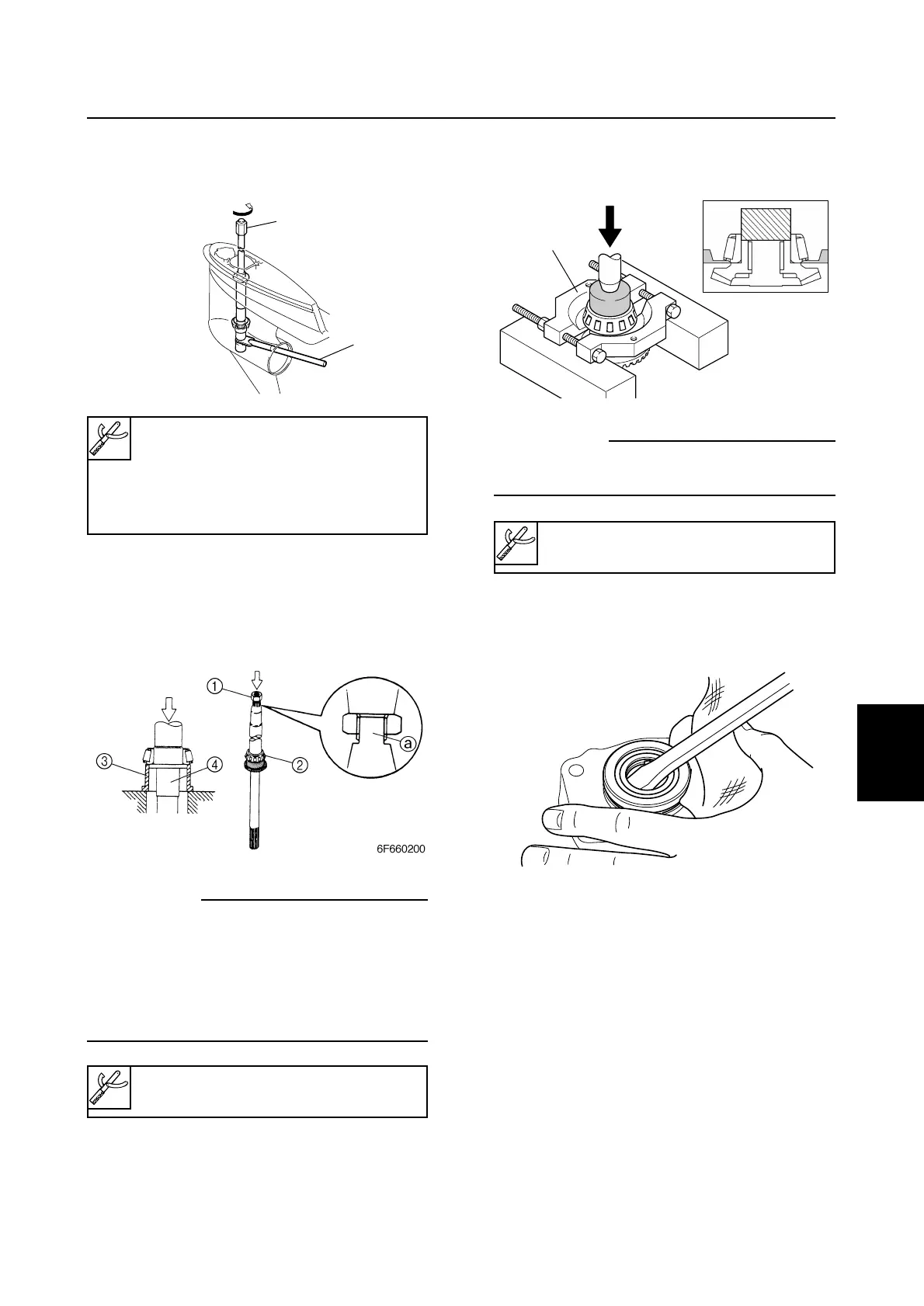

Drive shaft and lower case
Removing the drive shaft
1. Remove the drive shaft assembly and
pinion, and then pull out the forward gear.
Disassembling the drive shaft
1. Install the pinion nut 1, tighten it finger
tight, and then remove the drive shaft
bearing 2 using a press.
cC
9 Do not press the drive shaft threads a
directly.
9 When removing the drive shaft bearing,
do not damage the drive shaft collar 4.
9 Do not reuse the bearing, always replace
it with a new one.
Disassembling the forward gear
1. Remove the taper roller bearing from the
forward gear using a press.
cC
Do not reuse the bearing, always replace
it with a new one.
Disassembling the oil seal housing
1. Remove the oil seals using a flat head
screwdriver.
