Yamaha E40J - Installing the Water Pump and Shift Rod

6F65G11
6-20
9
8
7
6
5
4
3
2
1

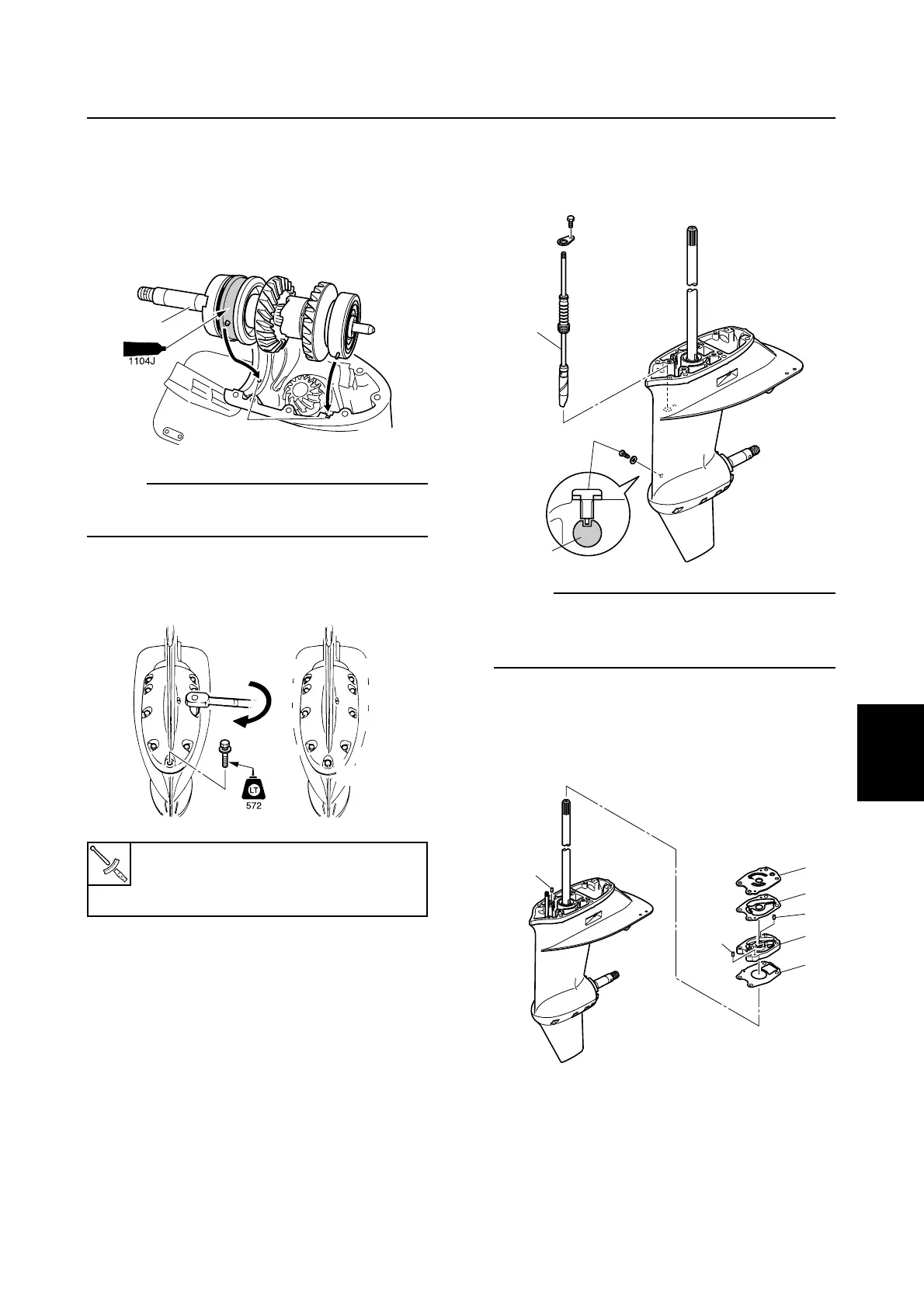

Drive shaft and lower case
5. Apply sealant to the mating surface of the
lower case cap and propeller shaft cap.
6. Install the propeller shaft housing assem-
bly 4 on to the lower case.
NOTE:
Insert the pins a in the slot or hole of the
lower case.
7. Tighten the bolts in sequence as shown
two stage.
Installing the water pump and shift
rod
1. Install the shift rod assembly 1.
NOTE:
Align the slit on the shift cam 1 with the hole
in the lower case. Then install the screw 2 as
shown.
2. Install the dowel 3, a new gasket 4, oil
seal housing 5, dowels 6, a new gasket
7 and the outer plate cartridge 8.
3. Install the Woodruff key into the drive
shaft.
6F660806
4
a
6F660805
.
,
m
n
b
v
c
x
z
6F660820
8
7
6
5
4
6
3
Lower case cap bolt :
1st: 4 N·m (0.4 kgf·m, 3.0 ft·lb)
2nd: 8 N·m (0.8 kgf·m, 5.8 ft·lb)
6F660810
1
1
2
