Yamaha E40J - Assembling the Lower Case; Assembling the Oil Seal Housing

6F65G11
6-40
9
8
7
6
5
4
3
2
1

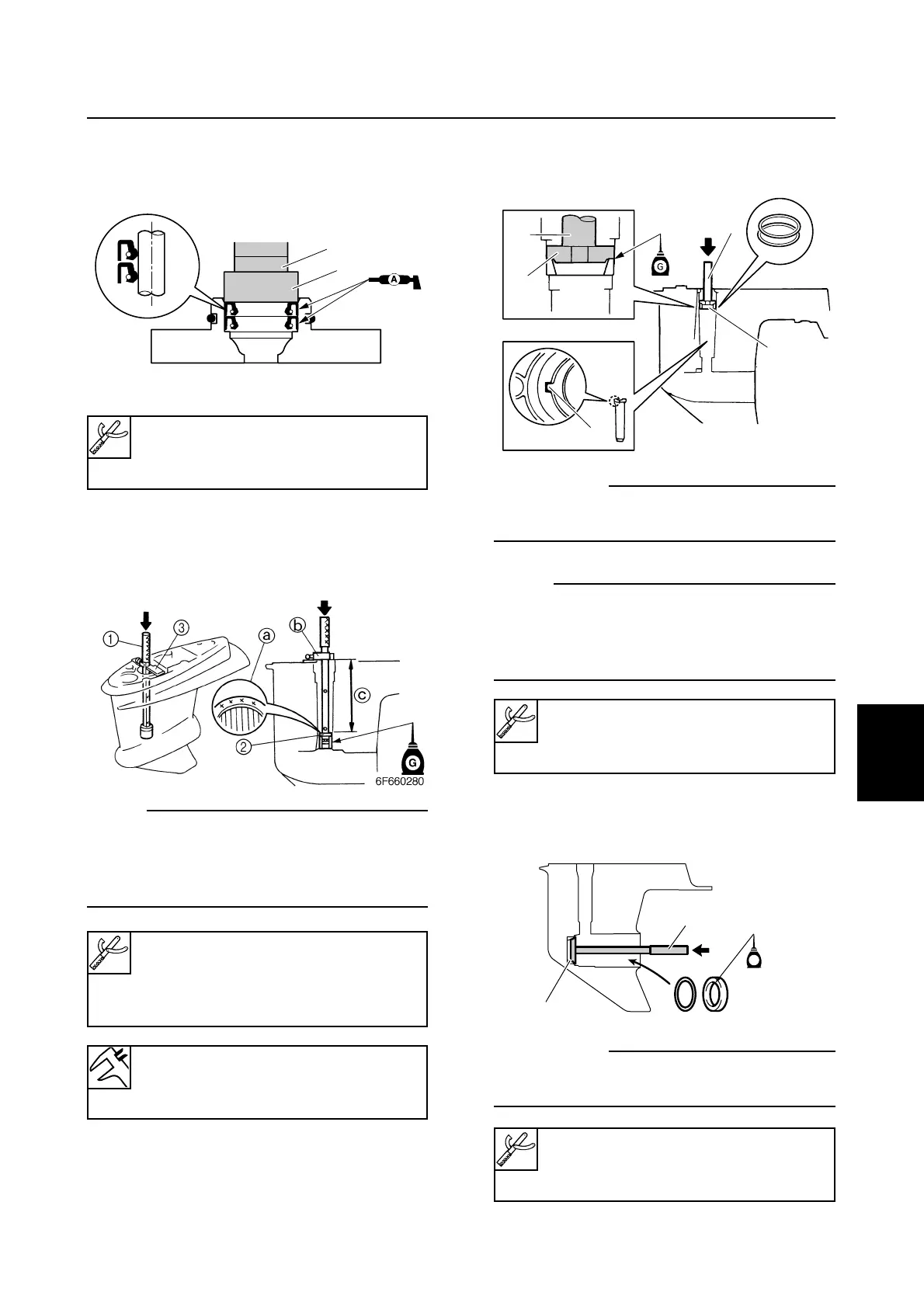

Drive shaft and lower case
Assembling the oil seal housing
1. Apply grease to new oil seals, and then
install them into the oil seal housing.
Assembling the lower case
1. Install the needle bearing into the lower
case to the specified depth.
NOTE:
9 Install the needle bearing with the manufac-
ture identification mark a facing up.
9 Be careful not to let the stopper b get out
of position when using the driver rod SL.
2. Install the sleeve, original shim(s), and
drive shaft bearing outer race.
cC
Add or remove shim(s), if necessary, if
replacing the pinion or lower case.
NOTE:
9 Apply gear oil to the inside and outside of
the sleeve before installation.
9 Install the sleeve with the projection d fac-
ing forward.
3. Install the original shim(s) and taper roller
bearing outer race.
cC
Add or remove shim(s), if necessary, if
replacing the forward gear or lower case.
2
1
6F660270
G
6B460350
7
6
5
4
5
4
d
6F660290
Ball bearing attachment 1:
90890-06653
Driver rod L3 2: 90890-06652
Bearing outer race attachment 4:
90890-06627
Driver rod LS 5: 90890-06606
Bearing outer race attachment 6:
90890-06622
Driver rod LL 7: 90890-06605
Driver rod SL 1 : 90890-06602
Needle bearing attachment 2 :
90890-06614
Bearing depth plate 3 : 90890-06603
Depth c :
182.5 — 183.0 mm
(7.19 — 7.20 in)
