Yamaha E40J - Carburetor

6F65G11
4-6
9
8
7
6
5
4
3
2
1

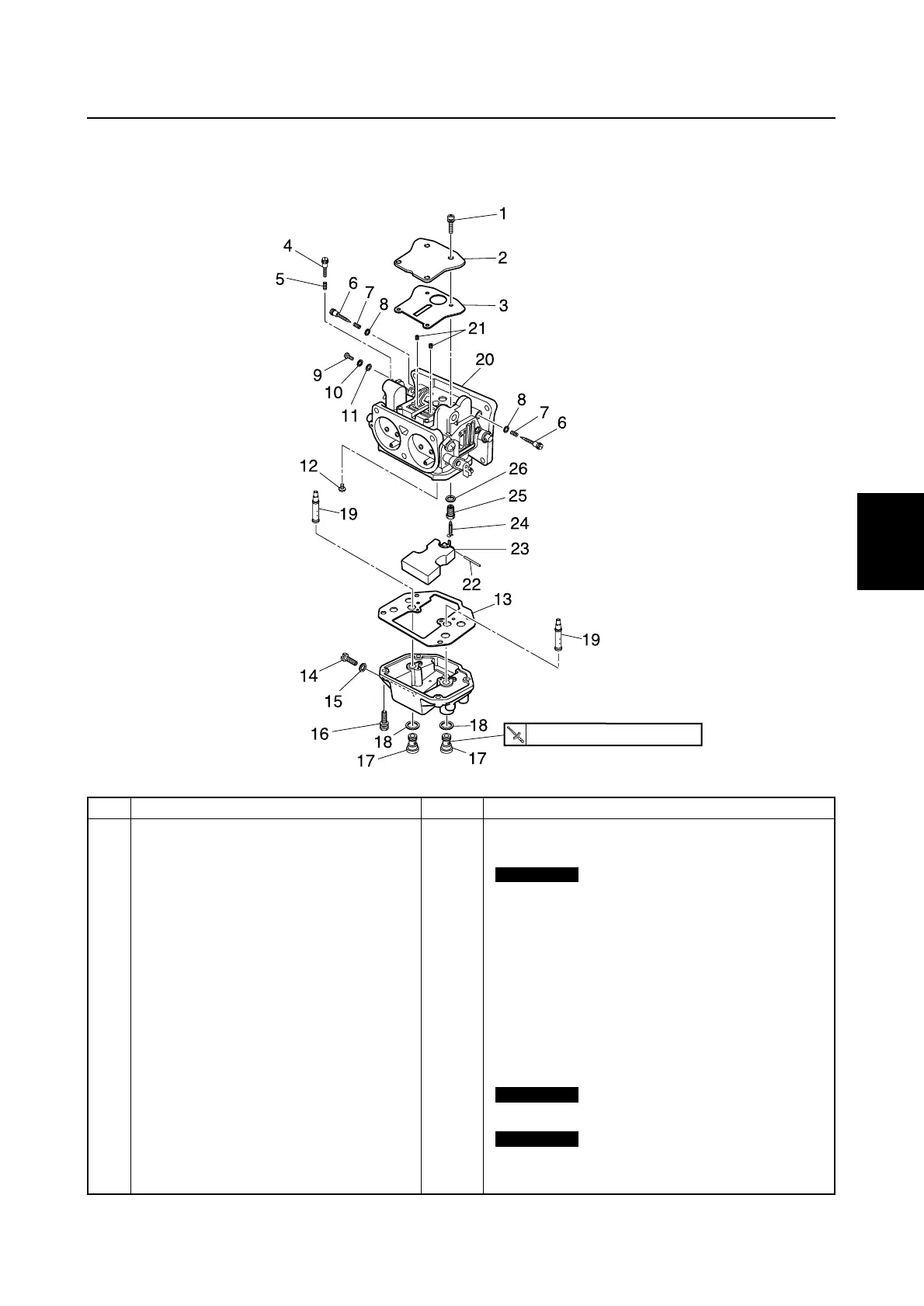

Carburetor
6F64040E
4 N·m (0.4 kgf·m, 3.0 ft·lb)
No. Part name Q’ty Remarks
1 Screw 4 P4 × 30 mm
2 Cover 1
3 Gasket 1
4 Throttle stop screw 1
5 Spring 1
6 Pilot screw 2
7 Spring 2
8 O-ring 2
9 Screw 1
10 Spring washer 1
11 Washer 1
12 Screw 1 ø4 × 5 mm
13 Gasket 1
14 Drain screw 1
15 Gasket 1
16 Screw 4 ø5 × 16 mm
17 Main jet 2
Not reusable
Not reusable
Not reusable
Carburetor
