Yamaha E40J - Checking the Upper Case; Disassembling the Upper Case

BRKT
7-11
6F65G11
Bracket unit

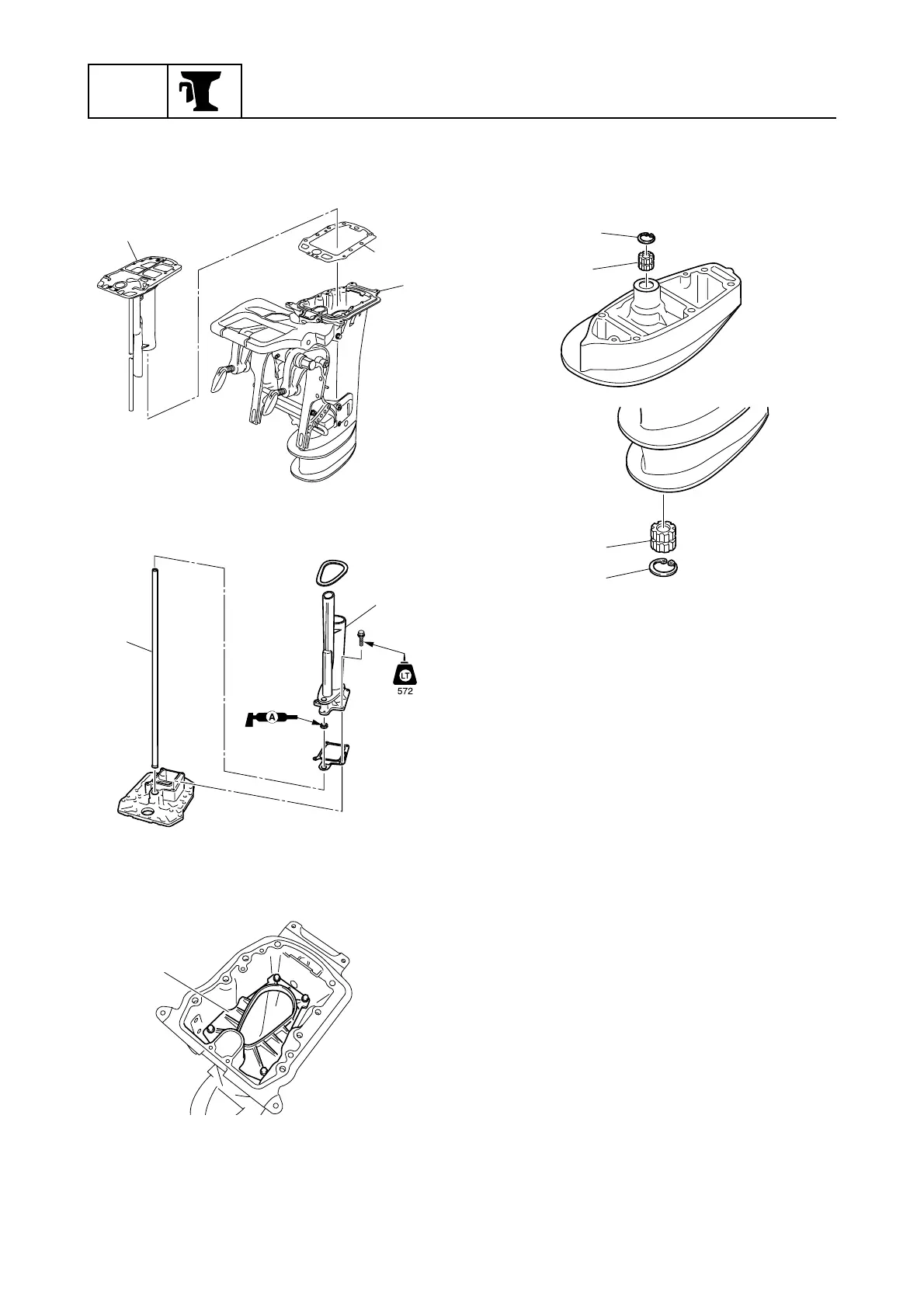

Disassembling the upper case
1. Remove the muffler assembly 1 and
gasket 2 from the upper case 3.
2. Remove the exhaust manifold 4 and
cooling water pipe 5.
3. Remove the nuts and upper mount, and
then remove the protector 6 from the
upper case.
4. Remove the circlip 7 and the drive shaft
bushing 8 from the upper case and or
extension.
å E40G: Y-transom
∫ E40J: L and Y-transom
Checking the upper case
1. Check the drive shaft bushing for wear or
cracks. Replace if necessary.
2. Check the cooling water pipe for defor-
mation or corrosion. Replace if neces-
sary.
3. Check the exhaust guide and exhaust
manifold for damage or corrosion.
Replace if necessary.
6F670030
1
2
3
5
4
6F670040
6F670060
6
7
8
6F670050
6F670055
7
8
å
∫
