Yamaha E40J - Installing the Drive Shaft; Installing the Propeller Shaft Housing

LOWR
6-19
6F65G11
Lower unit
4. Install the thrust bearing and roller bear-
ing assembly.
NOTE:
Apply gear oil to the inside and outside of the
thrust washer and roller bearing outer race
before installation.

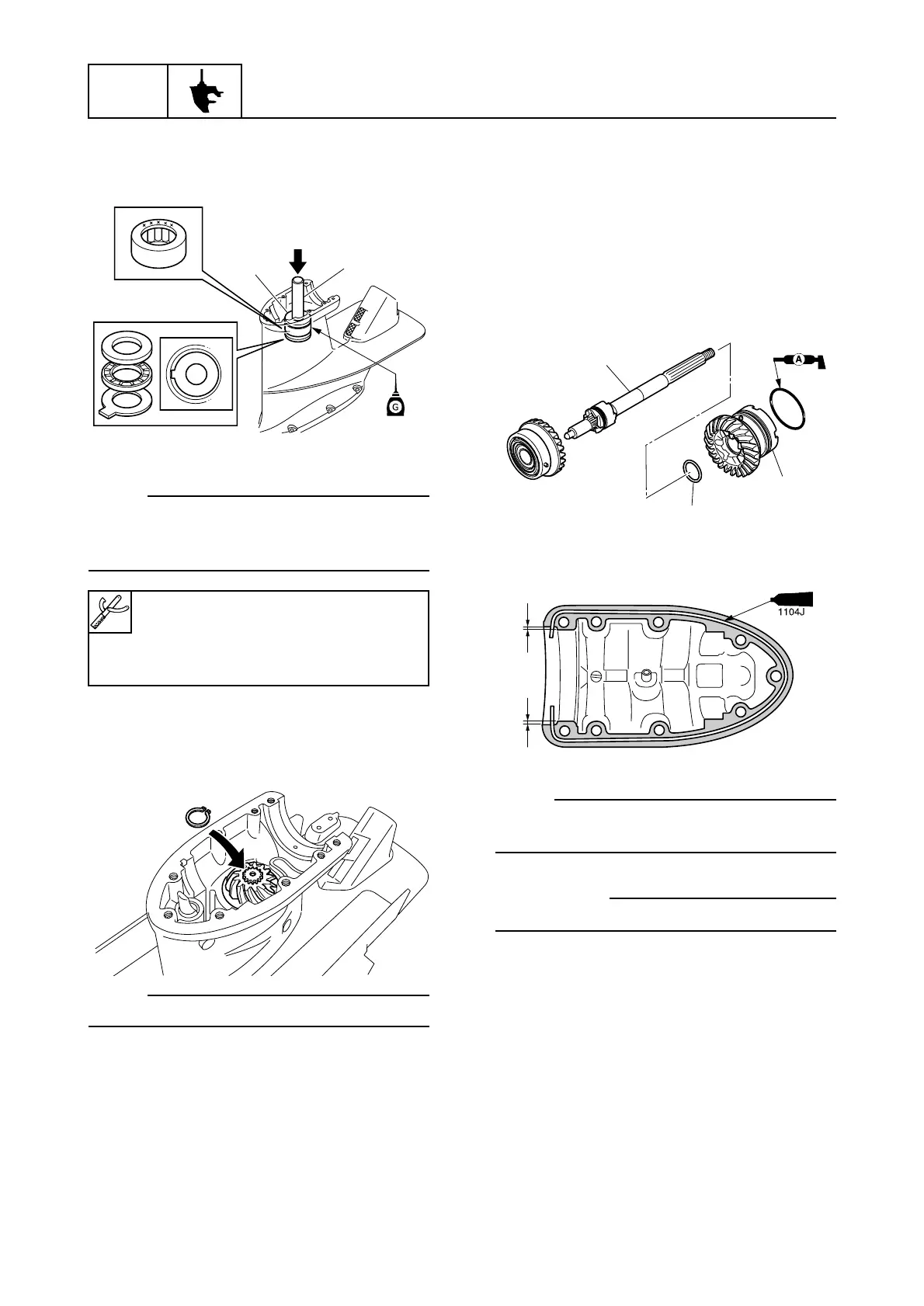

Installing the drive shaft
1. Install the roller bearing, then the drive
shaft, original shim(s), pinion, and circlip.
NOTE:
Take care the rollers will not fall off.
Installing the propeller shaft housing
1. Install the washer 1 and propeller shaft
assembly 2 into the propeller shaft
housing assembly 3.
2. Install the forward gear assembly to the
propeller shaft housing assembly.
3. Apply grease to new O-rings.
4. Fit the new seal into the lower case cap.
NOTE:
Cut the seal so that it projects out a about
0.8 mm (0.03 in) from the lower case cap.
cC
Do not pull the seal.
9
6F660770
0
6F660910
1
2
3
a
a
6F660807
6F660790
Ball bearing attachment 9:
90890-06631
Driver rod LS 0:
90890-06606
