Yamaha E40J - Disassembling the Propeller Shaft Assembly; Disassembling the Propeller Shaft Housing; Propeller Shaft Housing; Removing the Propeller Shaft Housing Assembly

6F65G11
6-34
9
8
7
6
5
4
3
2
1
Propeller shaft housing
Removing the propeller shaft hous-
ing assembly

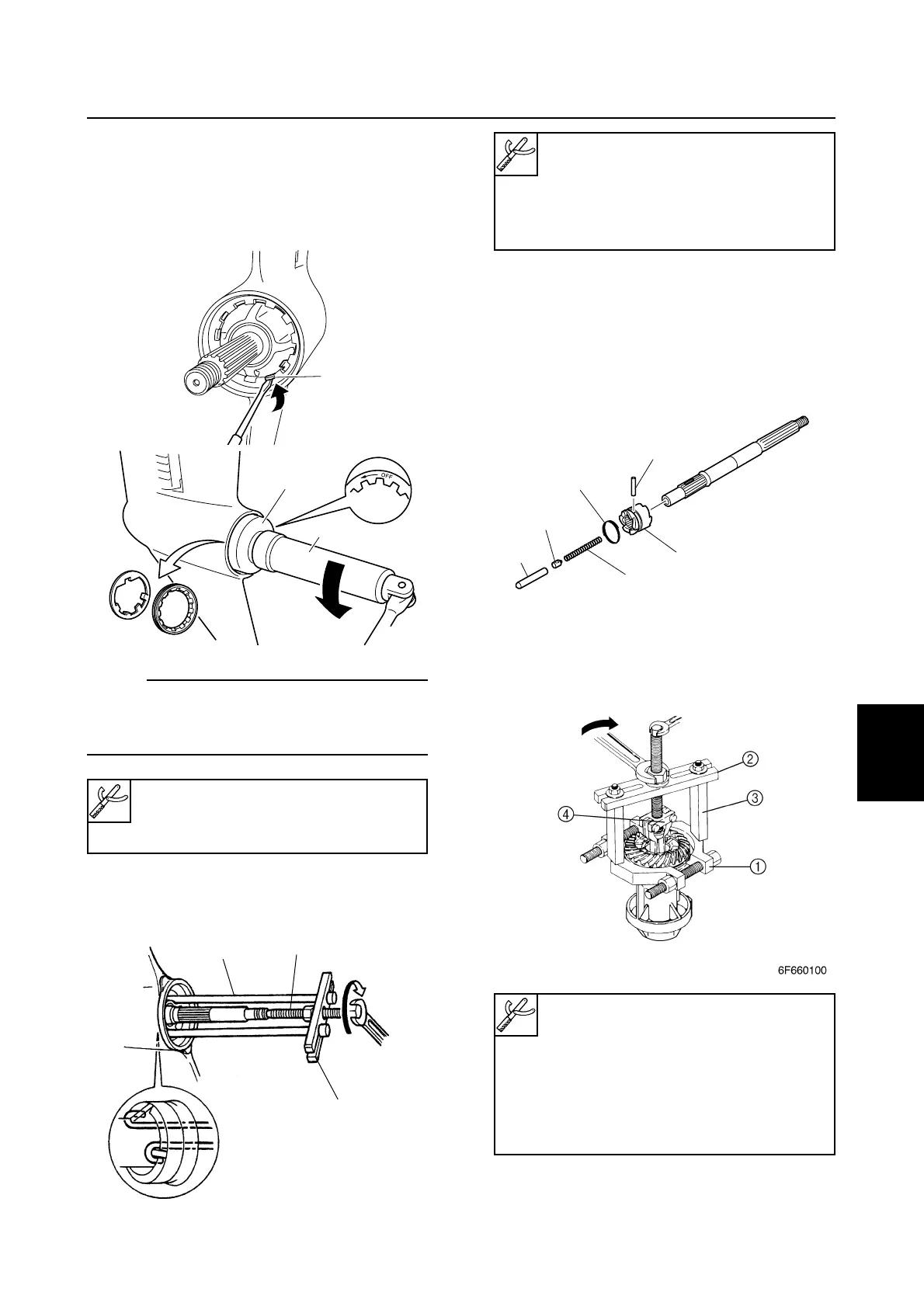

1. Remove the ring nut from the propeller
shaft housing, use the special service
tools.
NOTE:
9 Straighten the one tab 1 of the lock wash-
er, then turn the ring nut.
9 When the ring nut toward to “OFF”.
2. Remove the propeller shaft housing use
the special tools.
Disassembling the propeller shaft
assembly
1. Remove the spring 1, then the cross pin
2, dog clutch 3, spring 4, slider 5, and
shift plunger 6.
Disassembling the propeller shaft
housing
1. Remove the reverse gear.
6F600060
1
1
2
3
4
5
6
6F660080
6F660070
2
3
6B460580
5
4
6
Ring nut wrench 2: 90890-06510
Ring nut wrench extension 3:
90890-06513
Stopper guide plate 4:
90890-06501
Bearing housing puller crow M 5:
90890-06503
Center bolt 6: 90890-06504
Bearing separator 1: 90890-06534
Stopper guide plate 2:
90890-06501
Stopper guide stand 3:
90890-06538
Bearing puller assembly 4:
90890-06535
