Yamaha E40J - Assembling the Tiller Handle

6F65G11
7-4
9
8
7
6
5
4
3
2
1
Tiller handle (MH, WH)

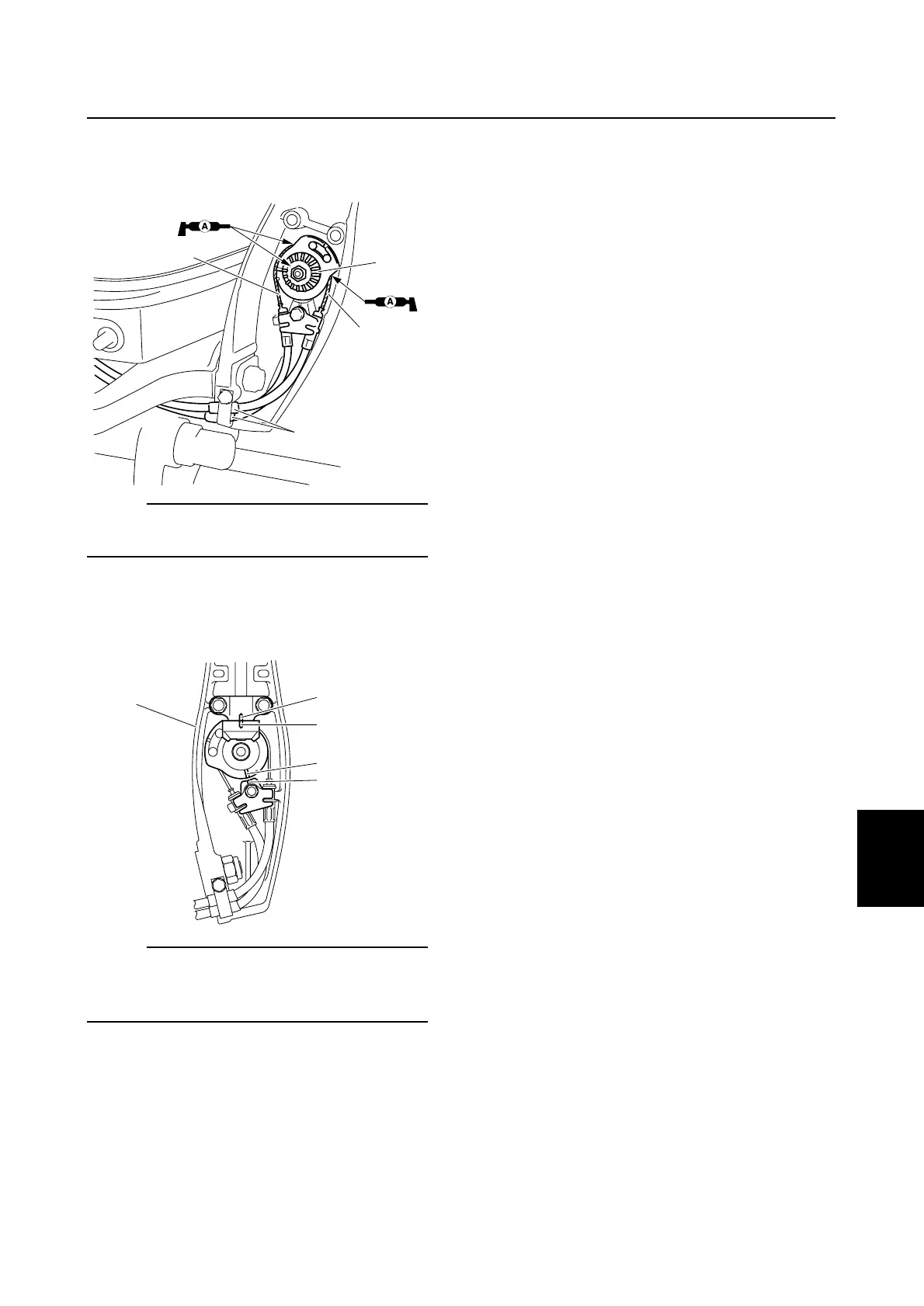

Assembling the tiller handle
1. Install the throttle cables 1 and 2 to the
pinion 3.
NOTE:
Route the throttle cable as shown and clamp
the cable protector 4.
2. Install the throttle shaft 5 to the tiller
handle bracket.
NOTE:
When install the throttle shaft, align the marks
on the pinion a with tiller handle bracket b
and throttle shaft c with stay d.
1
2
4
3
6F670010
6F670020
a
b
c
d
5
