Yamaha E40J - Assembling the Propeller Shaft Housing

LOWR
6-15
6F65G11
Lower unit
Assembling the propeller shaft
housing

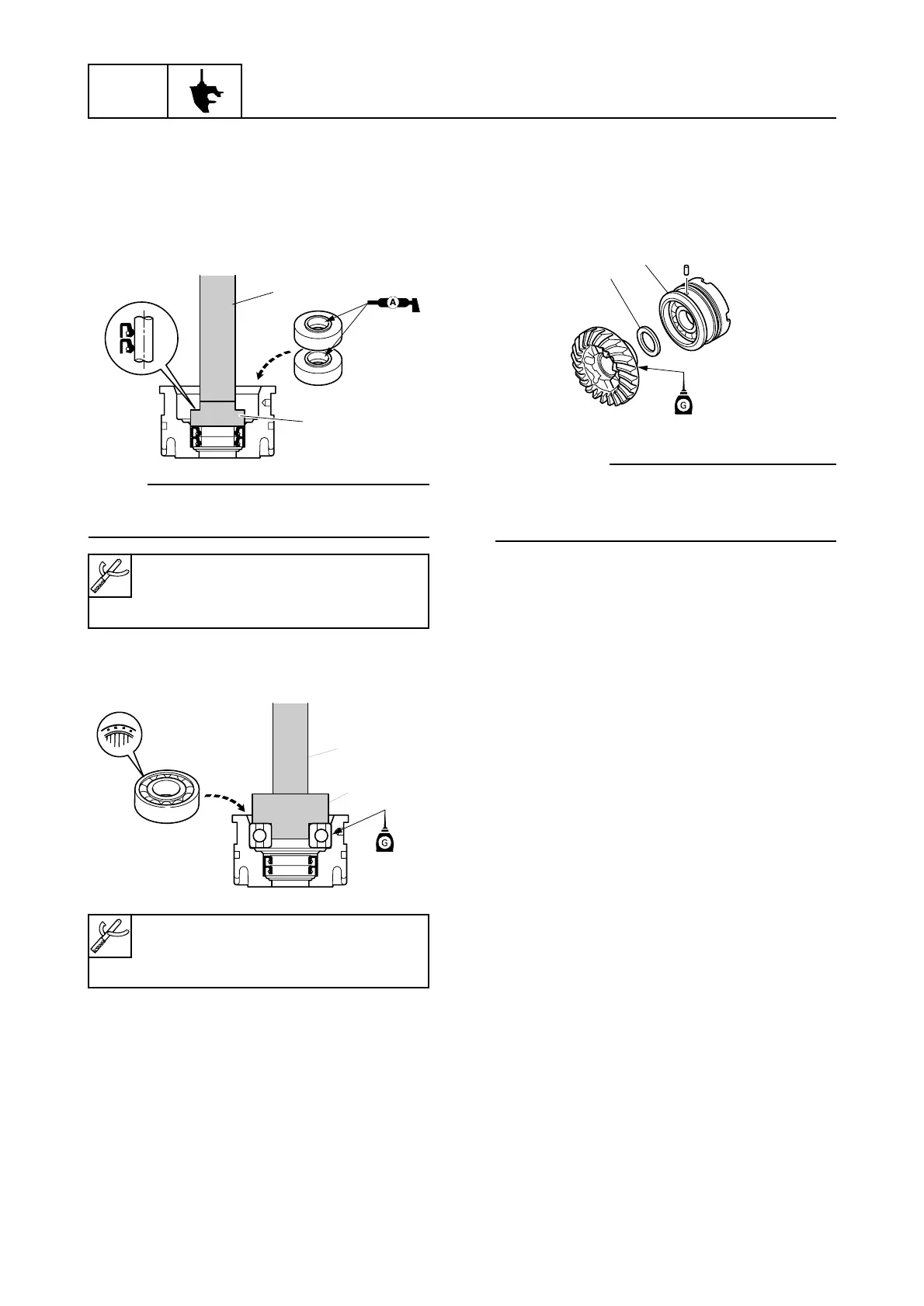

1. Apply grease to new oil seals, and then
install them into the propeller shaft hous-
ing to the specified depth.
NOTE:
Install an oil seal halfway into the propeller
shaft housing, then the other oil seal.
2. Install the new ball bearing onto the pro-
peller shaft housing using a press.
3. Install the original shim(s) 5 onto pro-
peller shaft housing 6, then install the
reverse gear assembly into the propeller
shaft housing.
cC
Add or remove the shim(s), if necessary, if
replacing the reverse gear, propeller shaft
housing, or lower case.
6F660670
3
4
6F660660
5
6
6F660650
1
2
Driver rod L3 1: 90890-06652
Needle bearing attachment 2:
90890-06613
Driver rod LS 3: 90890-06606
Ball bearing attachment 4:
90890-06634
