Yamaha E40J - Assembling the Propeller Shaft Housing

6F65G11
6-36
9
8
7
6
5
4
3
2
1
Propeller shaft housing

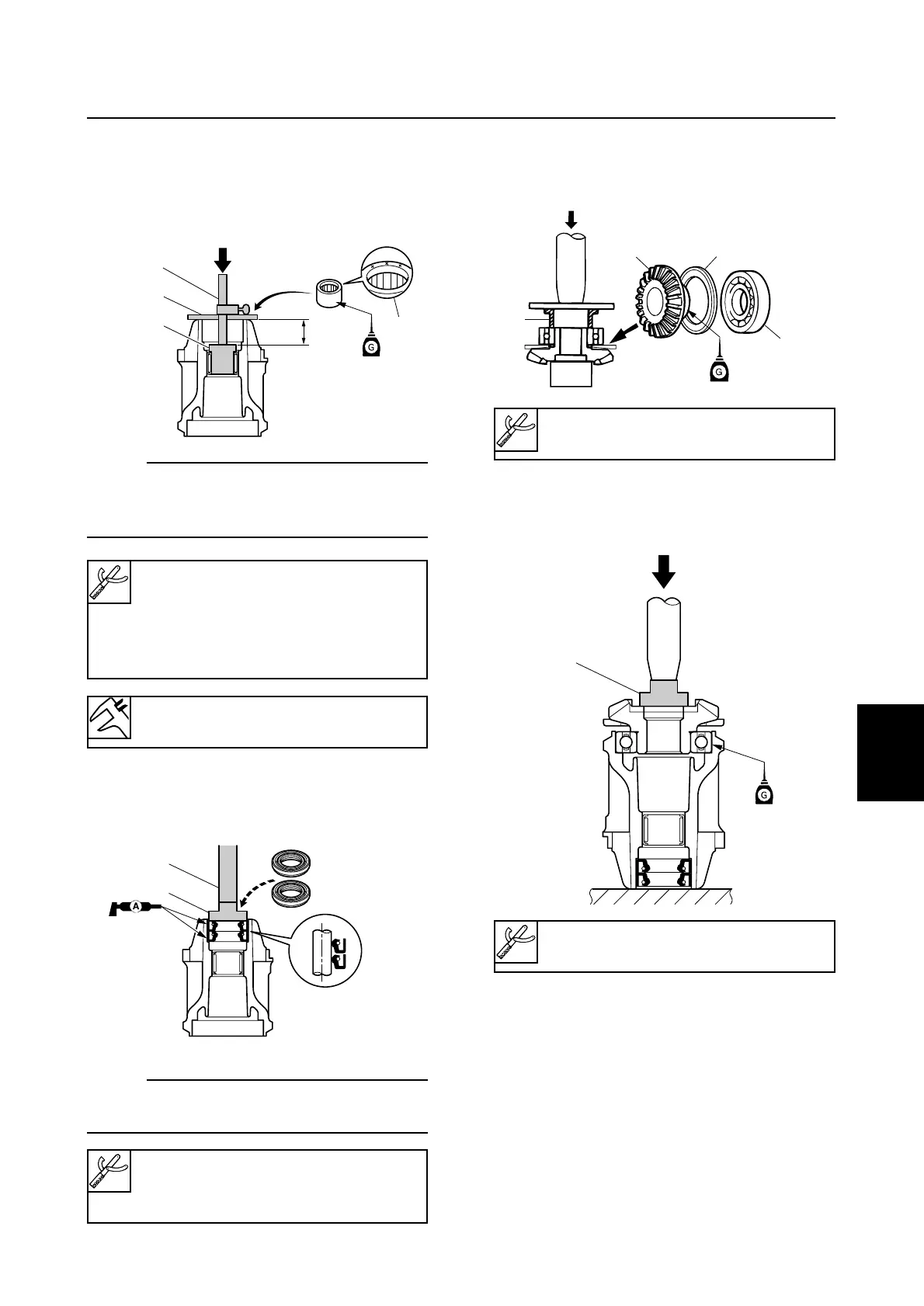

Assembling the propeller shaft
housing
1. Install the needle bearing into the pro-
peller shaft housing to the specified
depth.
NOTE:
Install the needle bearing with the manufac-
ture identification mark a facing toward the
oil seal (propeller side).
2. Apply grease to new oil seals, and then
install them into the propeller shaft hous-
ing.
NOTE:
Install an oil seal halfway into the propeller
shaft housing, then the other oil seal.
3. Install the washaer 6 and new ball bear-
ing 7 onto the reverse gear 8 using a
press.
4. Install the reverse gear assembly into the
propeller shaft housing using a press.
6F660150
3
2
1
b
a
6F660170
9
8
7
6
0
6F660180
6F660160
4
5
Driver rod SS 1: 90890-06604
Needle bearing attachment 2:
90890-06614
Bearing depth plate 3
90890-06603
Bearing inner race attachment 9:
90890-06639
Needle bearing attachment 0:
90890-06608
Driver rod LS 4: 90890-06606
Ball bearing attachment 5:
90890-06637
Depth b:
25.5 mm (1.0039 in)
