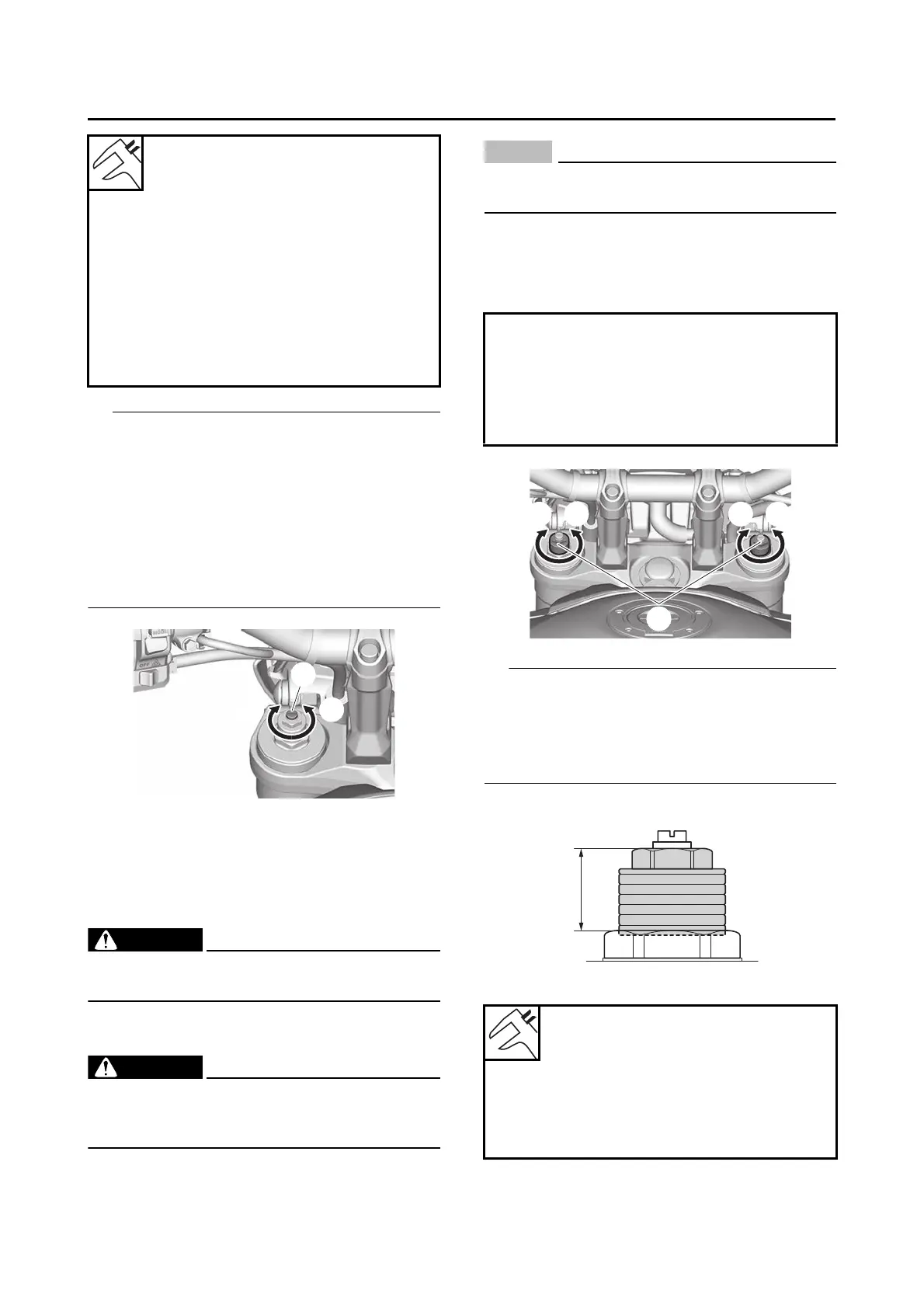

Yamaha MT-09 2021 - ADJUSTING the FRONT FORK LEGS (for MTN890 D)

3-23
PERIODIC MAINTENANCE
TIP
Although the total number of clicks of a damping
force adjusting mechanism may not exactly
match the above specifications due to small dif-
ferences in production, the actual number of
clicks always represents the entire adjusting
range. To obtain a precise adjustment, it would
be advisable to check the number of clicks of
each damping force adjusting mechanism and
to modify the specifications as necessary.
EAS32009
ADJUSTING THE FRONT FORK LEGS (for
MTN890D)
The following procedure applies to both of the
front fork legs.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
Spring preload
WARNING
EWA17040
Always adjust both front fork legs evenly.
Uneven adjustment can result in poor han-
dling and loss of stability.
NOTICE
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Spring preload
a. Turn the adjusting bolt “1” in direction “a” or
“b”.
TIP
The spring preload setting is determined by
measuring the distance “c” shown in the illustra-
tion. The shorter distance “c” is, the higher the
spring preload; the longer distance “c” is, the
lower the spring preload.
Compression damping
Adjustment value from the start
position (Soft)
11 (MTN890)
Adjustment value from the start
position (STD)
6 (MTN890)
Adjustment value from the start
position (Hard)
1 (MTN890)
* Start position: With the adjusting screw
fully turned in direction “a”
1
ba
Direction “a”
Spring preload is increased (suspen-
sion is harder).
Direction “b”
Spring preload is decreased (suspen-
sion is softer).
Spring preload
Adjustment value (Soft)
19.0 mm (0.75 in)
Adjustment value (STD)
15.0 mm (0.59 in)
Adjustment value (Hard)
4.0 mm (0.16 in)
1
a b a b
c
