Yamaha MT-09 2021 - Installing the Starter Motor

5-44
ELECTRIC STARTER

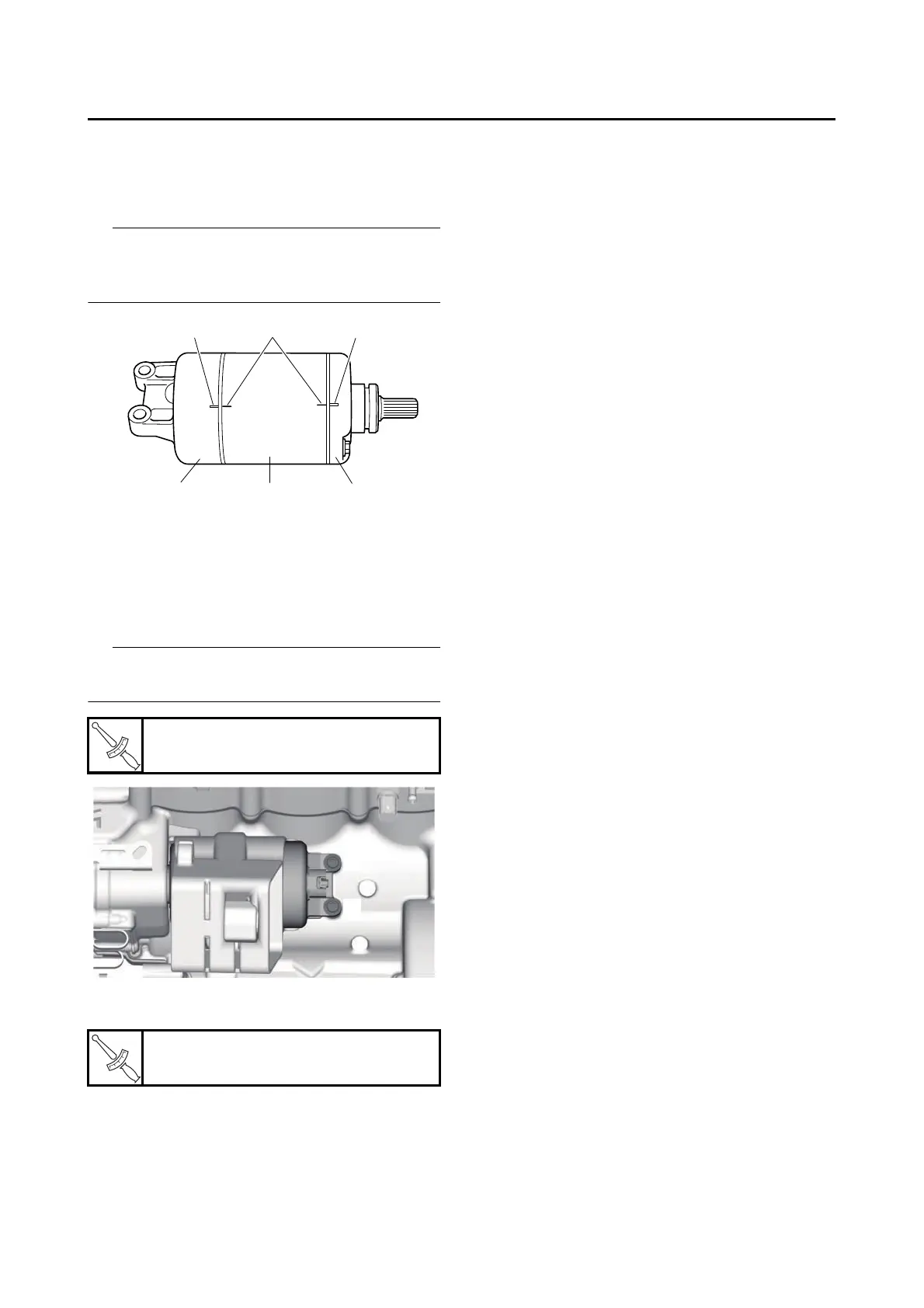

2. Install:
• Starter motor rear cover “1”
• Starter motor yoke “2”
• Starter motor front cover “3”
TIP
Align the match marks “a” on the starter motor
yoke with the match marks “b” on the front and
rear cover.
EAS30327
INSTALLING THE STARTER MOTOR
1. Install:
• Canister holder
• Starter motor
• Starter motor bolt
TIP
Tighten the starter motor bolts in the tightening
sequence as shown.
2. Connect:
• Starter motor lead
Starter motor bolt
12 N·m (1.2 kgf·m, 8.9 lb·ft)
Starter motor lead nut
7 N·m (0.7 kgf·m, 5.2 lb·ft)
123
abb
T
R
.
.
1
2
T
R
.
.
