Yamaha MT-09 2021 - Fuel Tank

7-1
FUEL TANK
EAS20067
FUEL TANK

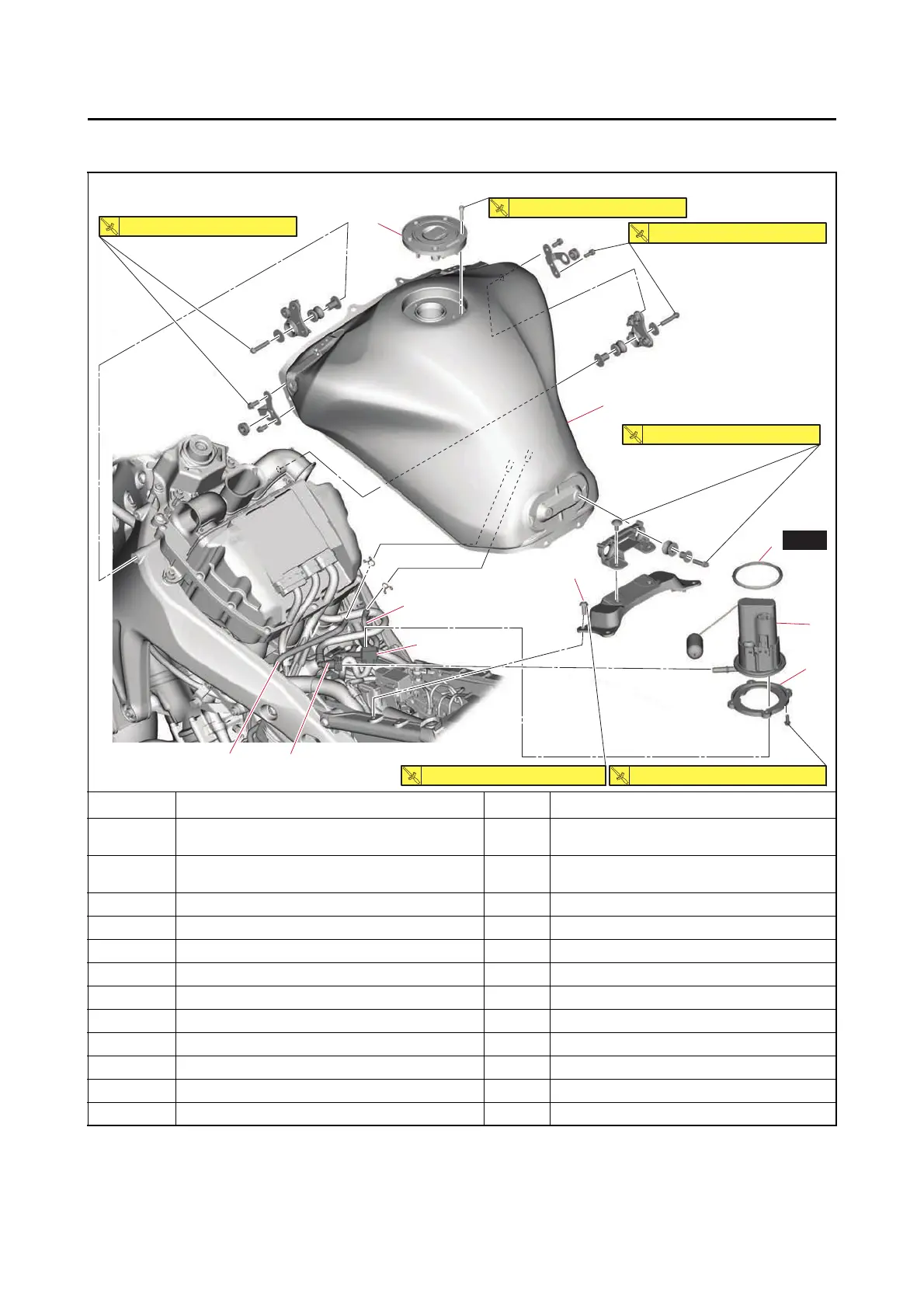

Removing the fuel tank
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Fuel tank side cover/Fuel tank center cover
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
1 Fuel tank bracket bolt
2 Fuel hose connector 1 Disconnect.
3 Fuel pump coupler 1 Disconnect.
4 Fuel tank breather hose 1 Disconnect.
5 Fuel tank drain hose 1 Disconnect.
6Fuel tank 1
7 Fuel pump bracket 1
8 Fuel pump 1
9 Fuel pump gasket 1
10 Fuel tank cap 1
New9
8
7
6
10
3
4
(4)
(2)
(5)
(2)
(2)
(2)
(4)
25
1
4.0 N
•
m (0.40 kgf
•
m, 3.0 lb
•
ft)
T.R.
11 N
•
m (1.1 kgf
•
m, 8.1 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R.
6 N
•
m (0.6 kgf
•
m, 4.4 lb
•
ft)
T.R.
