5-1
LUBRICATION SYSTEM CHART AND DIAGRAMS
EAS20298
LUBRICATION SYSTEM CHART AND DIAGRAMS
EAS32362

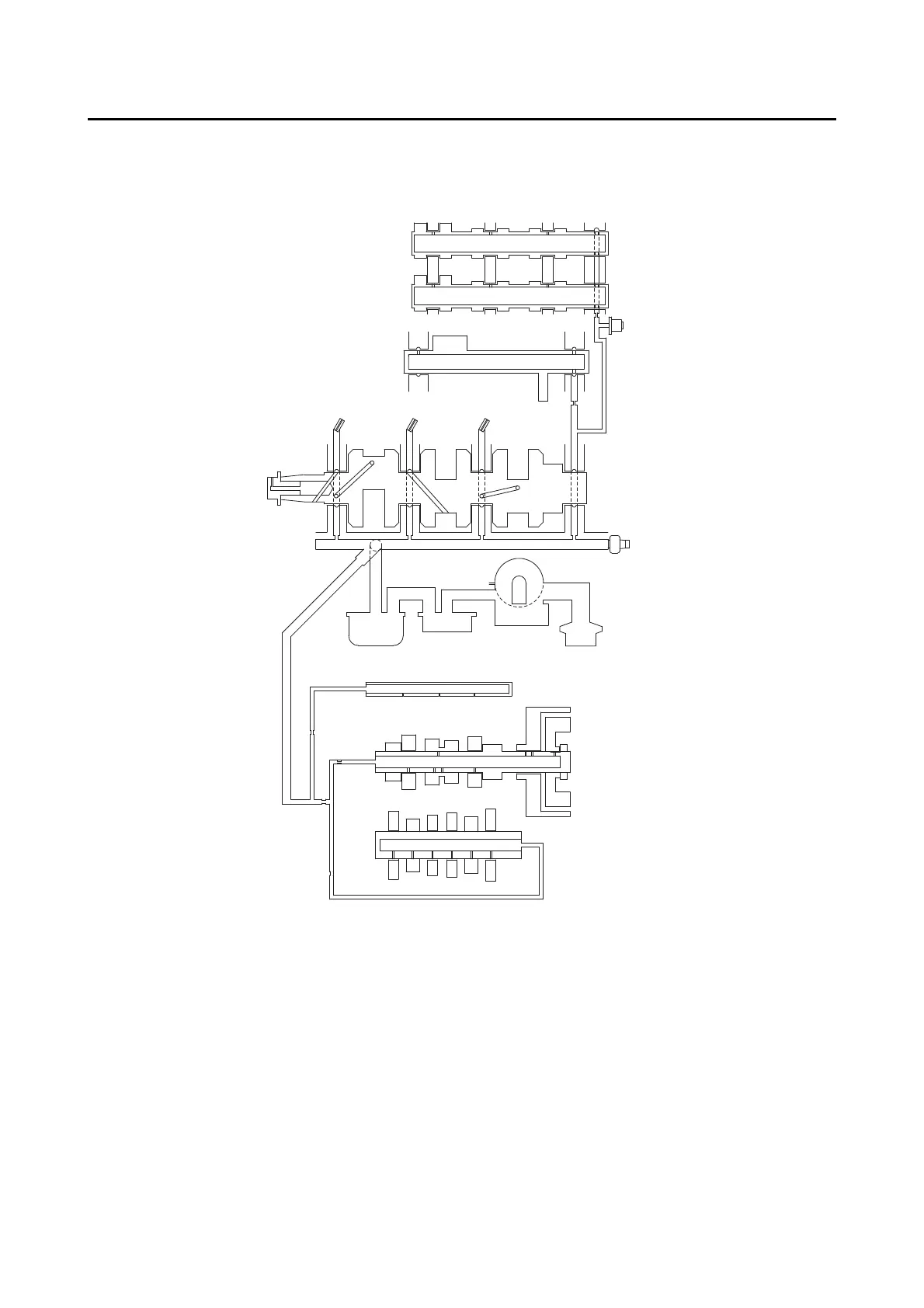

ENGINE OIL LUBRICATION CHART
16
15
13
12 12 12
11
7
6
5
8
9
10
88
4
1
2
3
14
1. Oil strainer
2. Oil pump
3. Relief valve
4. Oil cooler
5. Oil filter cartridge
6. Main gallery
7. Oil pressure switch
8. Mission shower
9. Main axle
10. Drive axle
11. Crankshaft
12. Oil nozzle
13. Balancer shaft
14. Timing chain tensioner
15. Intake camshaft
16. Exhaust camshaft
