5-16
CAMSHAFTS
EAS20043
CAMSHAFTS

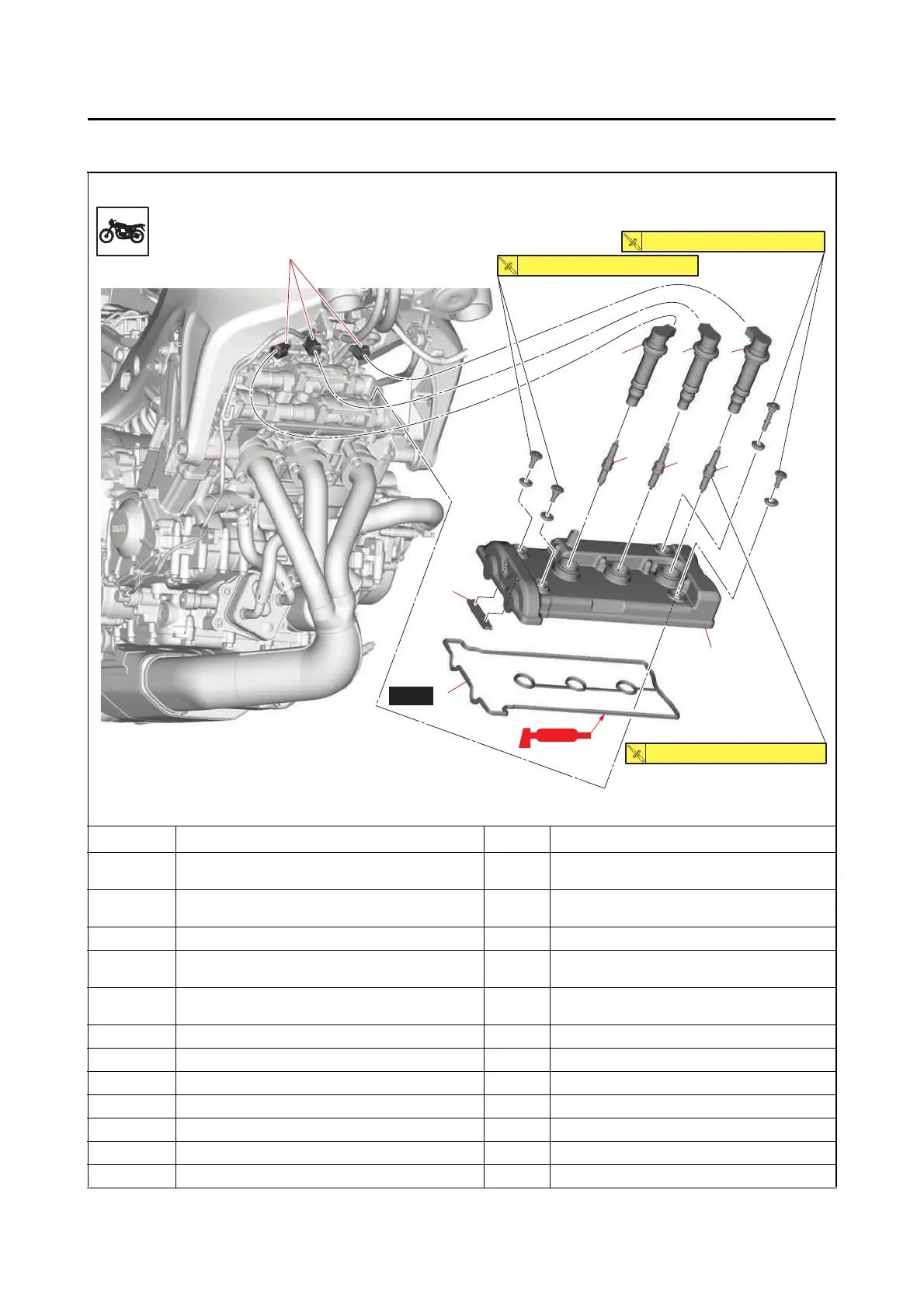

Removing the cylinder head cover
* Three Bond No. 1541C®
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Fuel tank center cover
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case
Refer to “GENERAL CHASSIS (2)” on
page 4-10.
Front side panel
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Radiator Refer to “RADIATOR” on page 6-3.
1 Ignition coil coupler 3 Disconnect.
2 Ignition coil 3
3 Spark plug 3
4 Cylinder head cover 1
5 Cylinder head cover gasket 1
6 Timing chain guide (top side) 1
3
3
3
4
1
6
5
222
New
*
13 N
•
m (1.3 kgf
•
m, 9.6 lb
•
ft)
T
.R.
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T
.R.
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T
.R.
