4-10
GENERAL CHASSIS (2)
EAS20155
GENERAL CHASSIS (2)

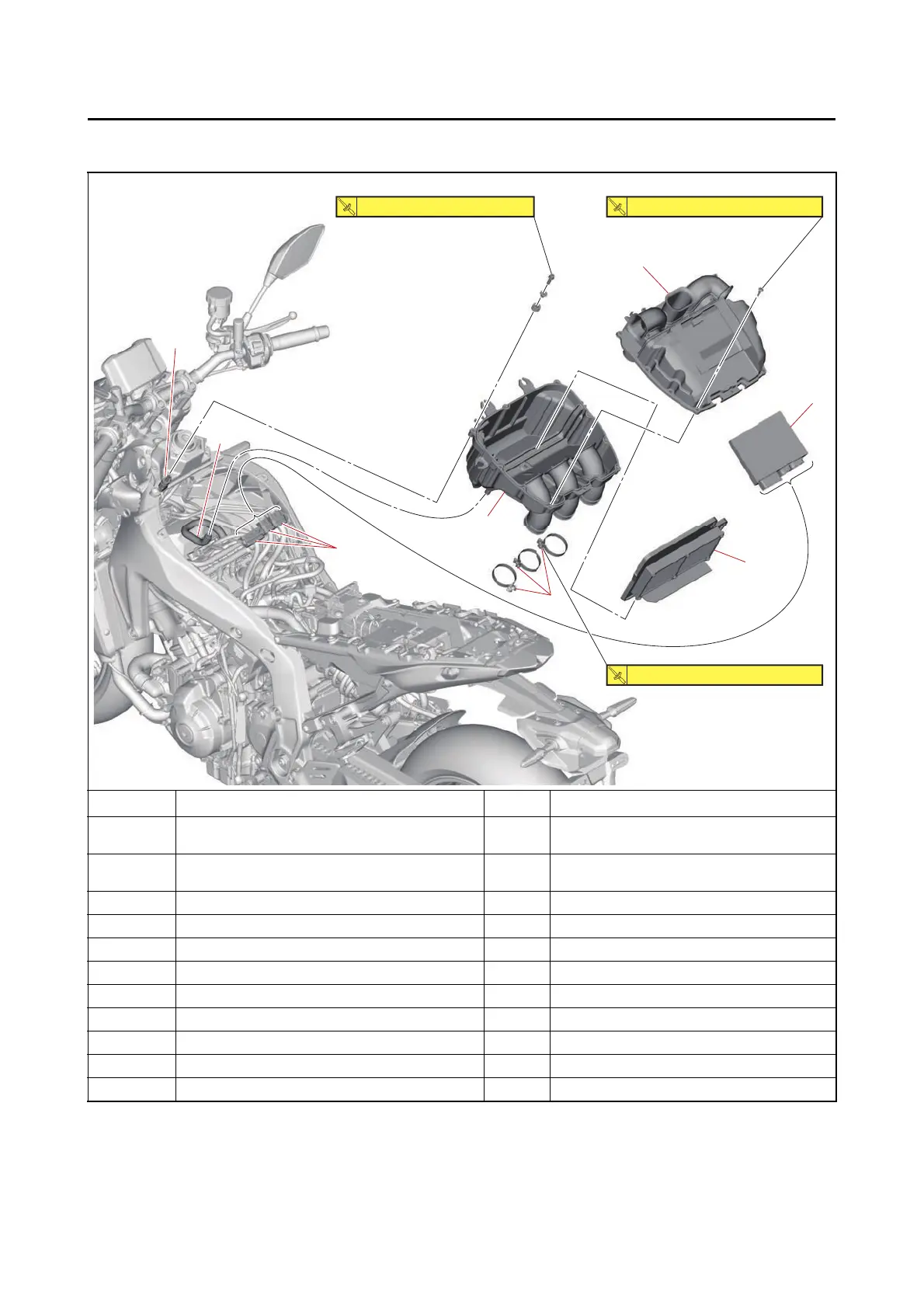

Removing the air filter case
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Air scoop
Refer to “GENERAL CHASSIS (2)” on
page 4-10.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 ECU coupler 3 Disconnect.
2 ECU (Engine Control Unit) 1
3 Intake air temperature sensor 1 Disconnect.
4 Air filter case cover 1
5 Air filter element 1
6 Air filter case joint clamp screw 3 Loosen.
7 Cylinder head breather hose 1 Disconnect.
8 Air filter case 1
3
7
1
6
5
2
(10)
(4)
(4)
(4)
4
8
7 N
•
m (0.7 kgf
•
m, 5.2 lb
•
ft)
T.R
.
1.6 N
•
m (0.16 kgf
•
m, 1.2 lb
•
ft)
T.R
.
2.8 N
•
m (0.28 kgf
•
m, 2.1 lb
•
ft)
T.R
.
