ABS (ANTI-LOCK BRAKE SYSTEM)
EAS20032
ABS (ANTI-LOCK BRAKE SYSTEM)

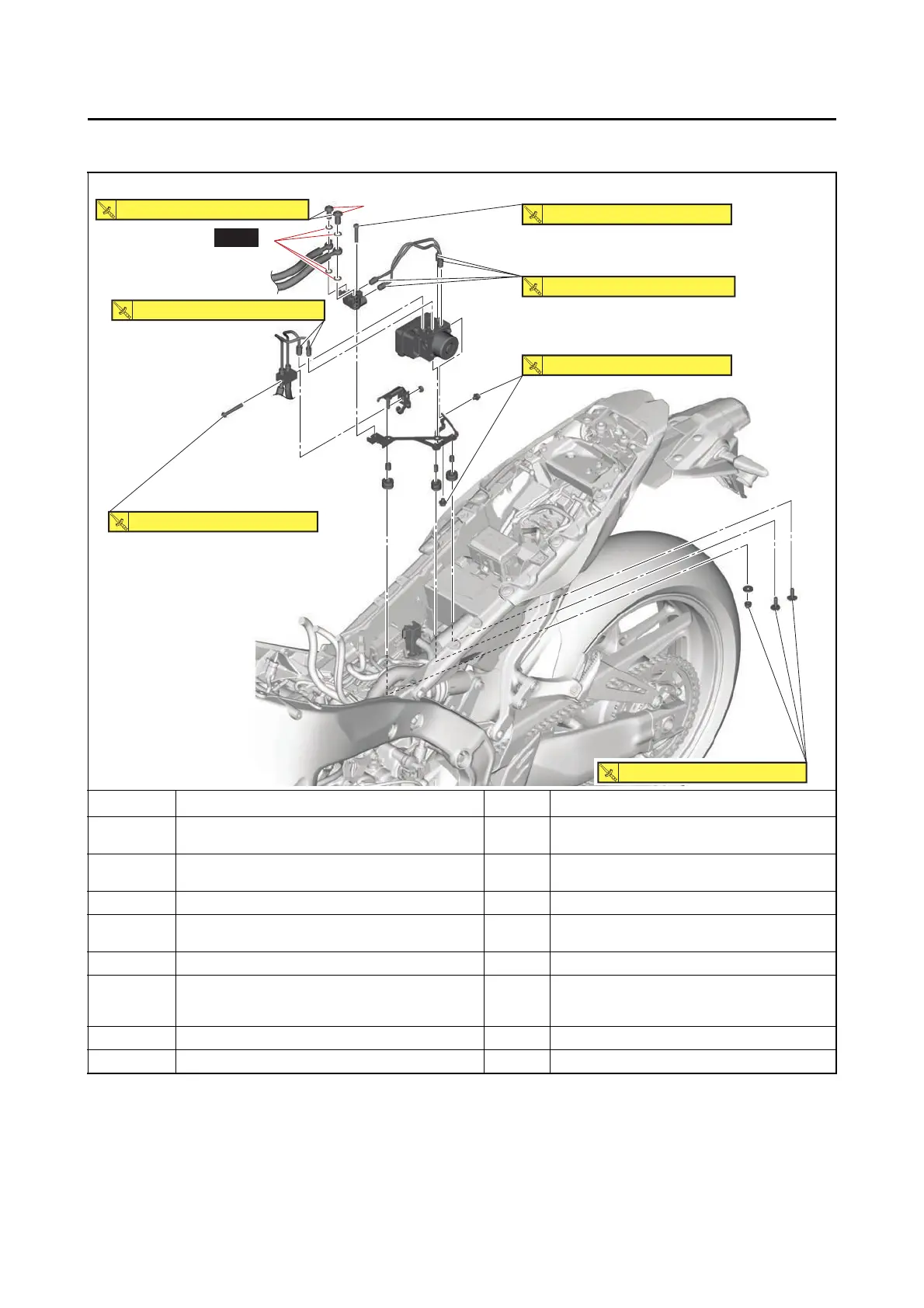

Removing the hydraulic unit assembly
Order Job/Parts to remove Q’ty Remarks
Rider seat/Battery
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Fuel tank center cover
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case
Refer to “GENERAL CHASSIS (2)” on
page 4-10.
Throttle bodies Refer to “THROTTLE BODIES” on page 7-5.
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM (ABS)” on page 3-15.
1 Brake hose union bolt 2
2Gasket 4
16 N・m (1.6 kgf・m, 12 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
6 N・m (0.6 kgf・m, 4.4 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
1
2
New
