4-34
FRONT BRAKE
EAS30174
ASSEMBLING THE FRONT BRAKE
CALIPERS
WARNING
EWA16560
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake com-
ponents as they will cause the brake caliper
piston dust seals and brake caliper piston
seals to swell and distort.
• Whenever a brake caliper is disassembled,
replace the brake caliper piston dust seals
and brake caliper piston seals.
EAS30175

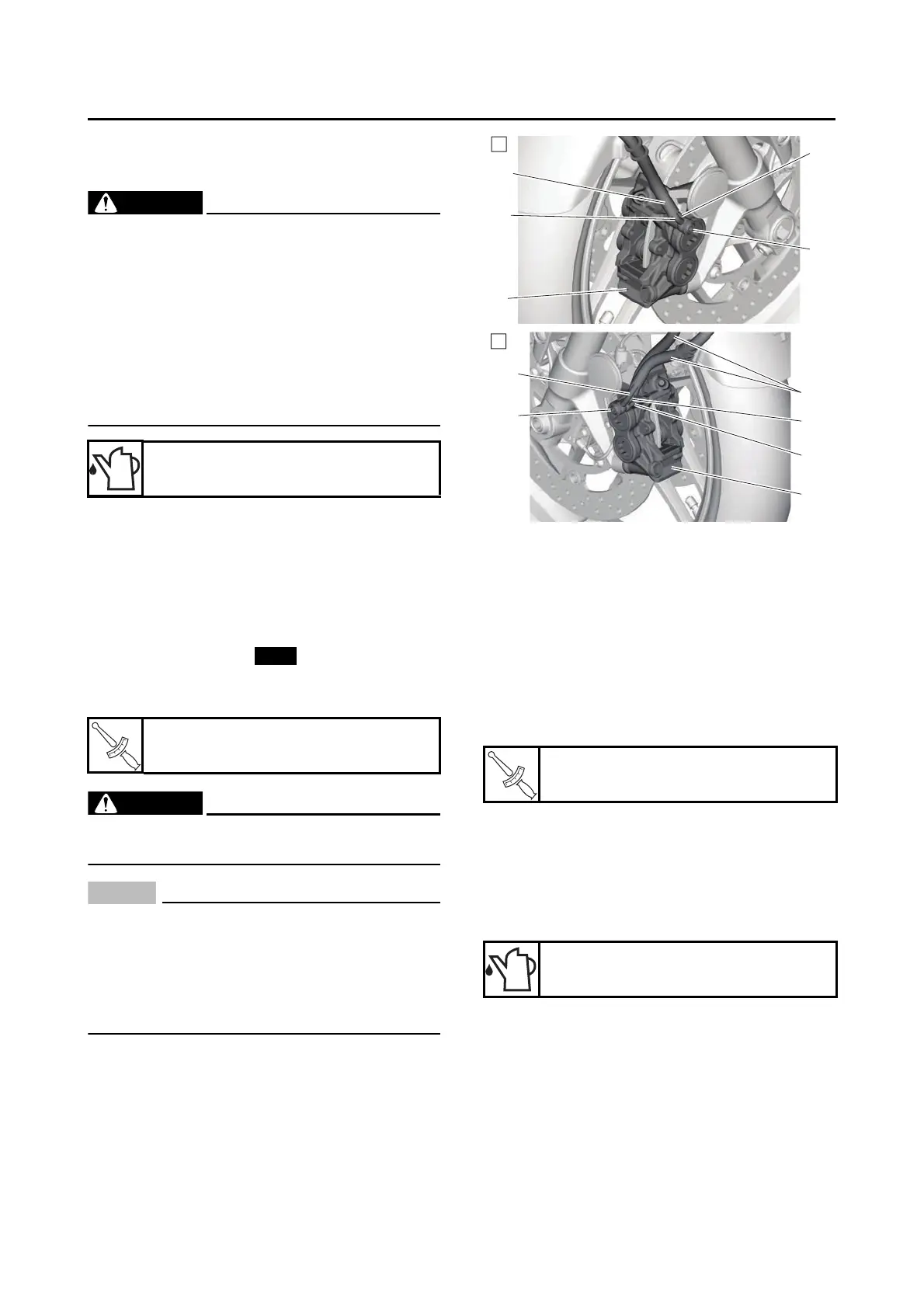

INSTALLING THE FRONT BRAKE CALIPERS
The following procedure applies to both of the
brake calipers.
1. Install:
• Front brake caliper “1”
(temporarily)
• Brake hose gasket
• Brake hose “2”
• Brake hose union bolt “3”
WARNING
EWA13531
Proper brake hose routing is essential to in-
sure safe vehicle operation.
NOTICE
ECA21410
• When installing the brake hose onto the
brake caliper “1”, make sure the brake pipe
“a” touches the projection “b” on the brake
caliper.
• Install the brake pipe “c” so that it is
aligned with the brake pipe “a”.
2. Remove:
• Front brake caliper
3. Install:
• Brake pad
• Brake pad spring
• Brake pad pin
• Brake pad clip
• Front brake caliper
Refer to “REPLACING THE FRONT BRAKE
PADS” on page 4-31.
4. Fill:
• Brake master cylinder reservoir
(with the specified amount of the specified
brake fluid)
Specified brake fluid
DOT 4
Front brake caliper bolt
35 N·m (3.5 kgf·m, 26 lb·ft)
New
T
R
.
.
A. Right side
B. Left side
Front brake caliper bolt
35 N·m (3.5 kgf·m, 26 lb·ft)
Specified brake fluid
DOT 4
b
3
2
a
1
A
2
a
b
1
c
3
B
T
R
.
.
