Yamaha MT-09 2021 - Adjusting the Handlebar Position; Removing the Handlebar

4-59
HANDLEBAR
EAS31396

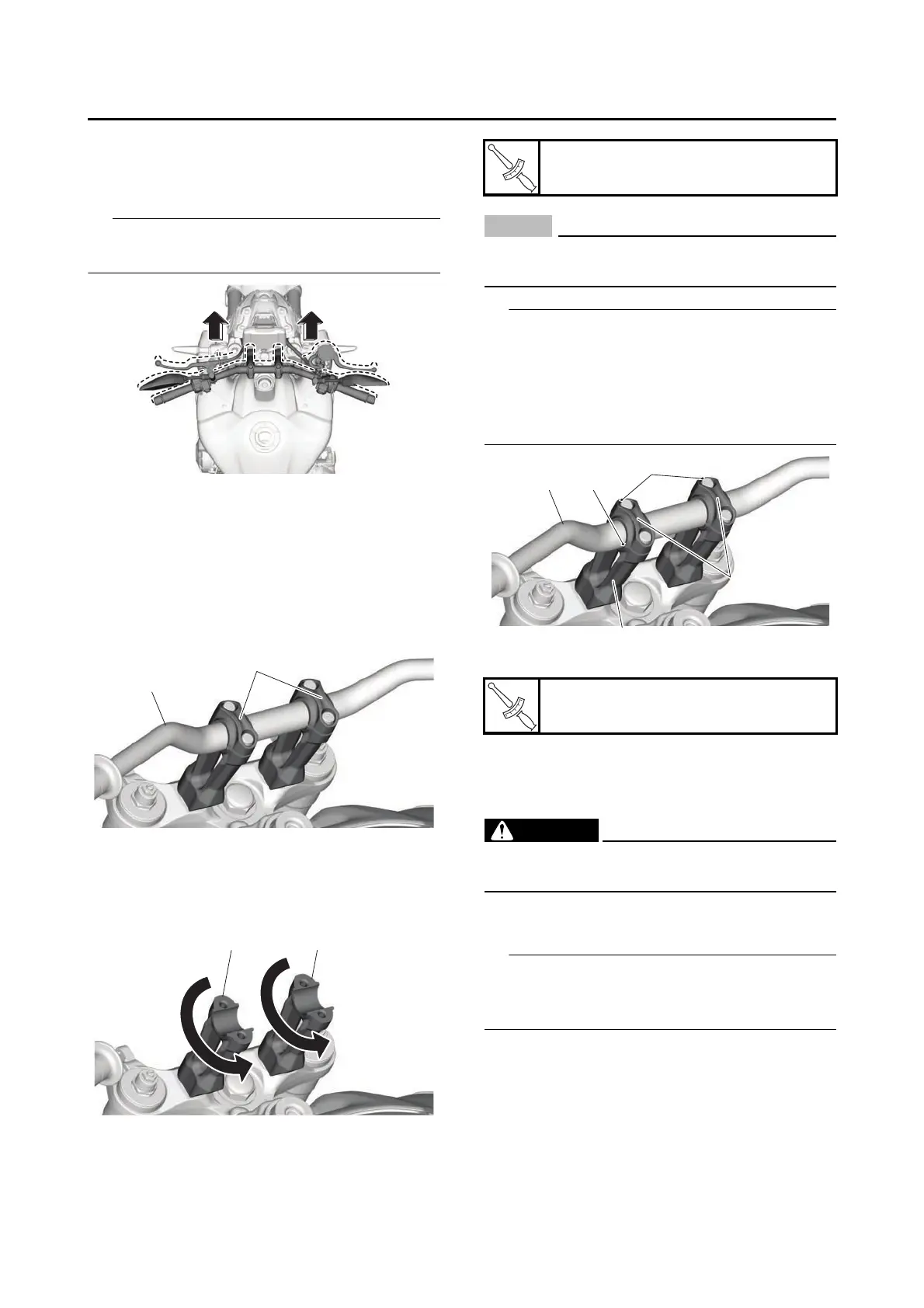

ADJUSTING THE HANDLEBAR POSITION
1. Check:
• Handlebar position
TIP
The handlebar position can be adjusted in two
positions to suit the rider’s preference.
2. Remove:
• Air scoop (left and right)
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
3. Adjust:
• Handlebar position
a. Remove the upper handlebar holders “1”
and handlebar “2”.
b. Loosen the lower handlebar holder nuts.
c. Adjust the handlebar position by rotating
both of the lower handlebar holders “1” in
180°.
d. Install the handlebar “1” and upper handle-
bar holders “2”.
NOTICE
ECA18300
First, tighten the bolts on the front side of the
handlebar holder, and then on the rear side.
TIP
• Align the punch mark “a” on the handlebar with
the left side upper surface of the lower handle-
bar holder (left) “3”.
• The upper handlebar holders should be in-
stalled with the punch marks “b” facing for-
ward.
e. Tighten the lower handlebar holder nuts.
EAS30203
REMOVING THE HANDLEBAR
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
2. Remove:
• Handlebar grip “1”
TIP
Blow compressed air between the handlebar
(left) and the handlebar grip, and gradually push
the grip off the handlebar.
2
1
1 1
Upper handlebar holder bolt
22 N·m (2.2 kgf·m, 16 lb·ft)
Lower handlebar holder nut
40 N·m (4.0 kgf·m, 30 lb·ft)
T
R
.
.
1 a
3
2
b
T
R
.
.
