GENERAL CHASSIS (1)
EAS32229

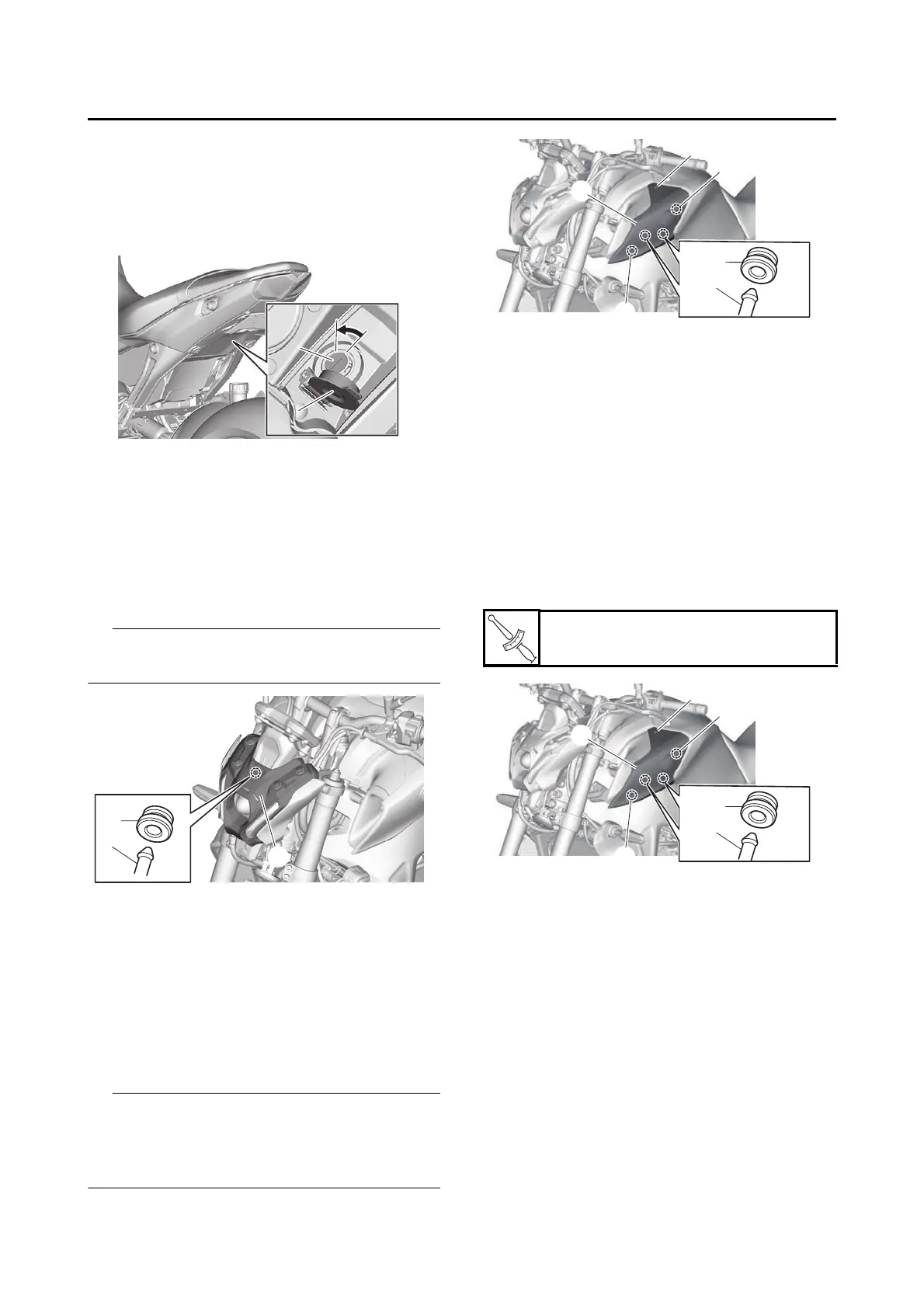

REMOVING THE SEAT
1. Remove:
a. Open the seat lock cover “1”, insert the key
into the seat lock “2”, and then turn the key
counterclockwise “3”.
b. While holding the key in that position, slide
the seat backward and then lift the rear of
the seat up, and then pull the seat off.
EAS33544
REMOVING THE HEADLIGHT FRONT
COVER
1. Remove:
• Headlight front cover “1”
TIP
Remove the projection “a” on the headlight front
cover from grommet “b”.
EAS32777
REMOVING THE FUEL TANK SIDE COVER
The following procedure applies to both of the
fuel tank side cover.
1. Remove:
• Fuel tank side cover (left) “1”
a. Remove the fuel tank side cover bolt (left)
“2” and quick fastener “3”.
b. Remove the fuel tank side cover (left).
TIP
• Remove projections “a” on the fuel tank side
cover from grommets “b”.
• Remove projections “c” on the fuel tank side
cover from hole.
EAS32778
INSTALLING THE FUEL TANK SIDE COVER
The following procedure applies to both of the
fuel tank side cover.
1. Install:
• Fuel tank side cover (left) “1”
a. Insert the projection “a” on the fuel tank side
cover into the grommets “b” and insert the
projection “c” on the fuel tank side cover
into the hole.
b. Install the fuel tank side cover bolt “2” and
quick fastener “3”, and then tighten the
bolts to specification.
222
33
11
a
b
1
Fuel tank side cover bolt
1.0 N·m (0.10 kgf·m, 0.73 lb·ft)
a
b
1
3
2
c
T
R
.
.
a
b
1
3
2
c
