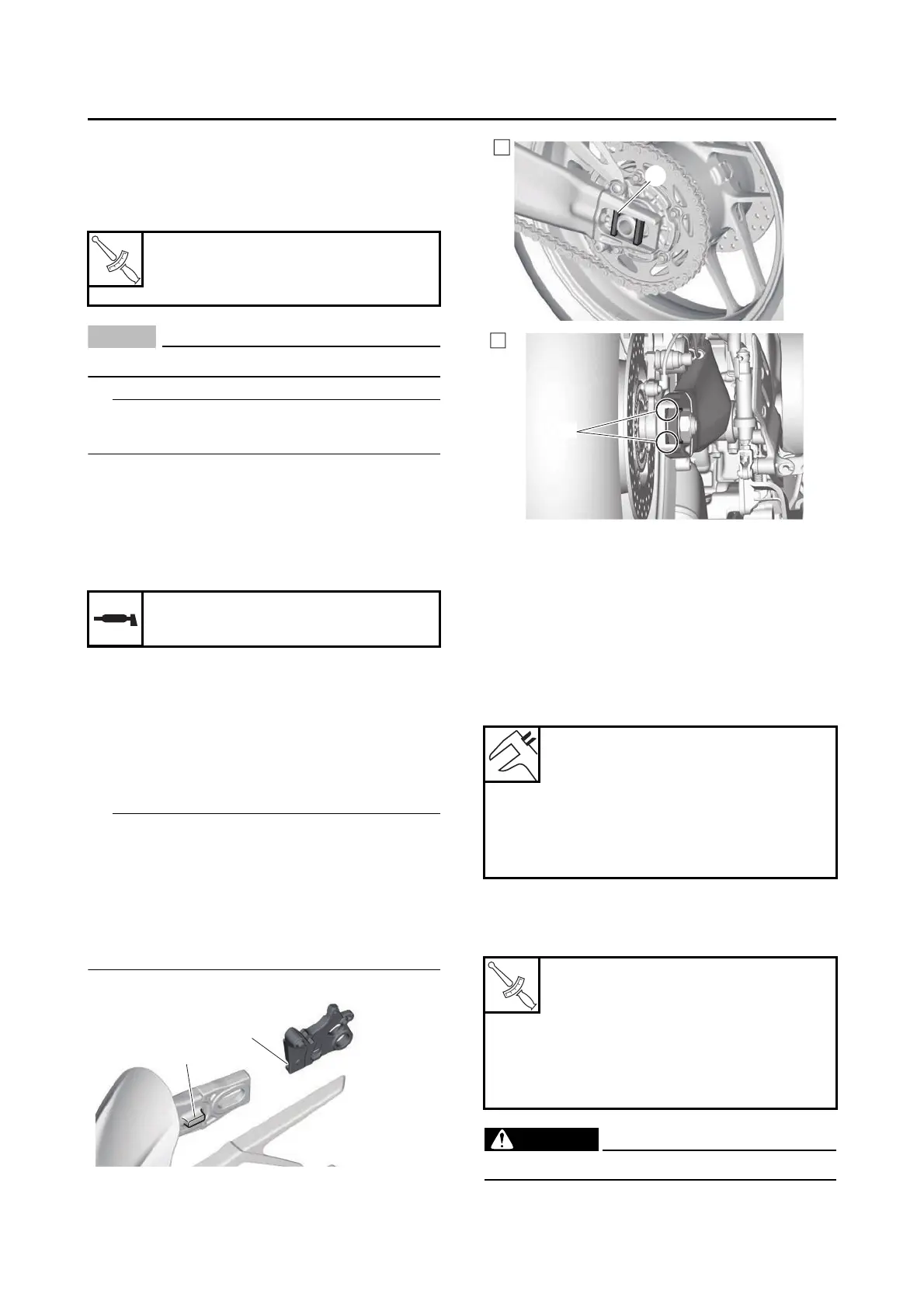

Yamaha MT-09 2021 - Installing the Rear Wheel (Rear Brake Disc)

4-23
REAR WHEEL
EAS31157
INSTALLING THE REAR WHEEL (REAR
BRAKE DISC)
1. Install:
• Rear brake disc
NOTICE
ECA19150
Replace the brake disc bolts with new ones.
TIP
Tighten the brake disc bolts in stages and in a
crisscross pattern.
2. Check:
• Rear brake disc
Refer to “CHECKING THE REAR BRAKE
DISC” on page 4-43.
3. Lubricate:
• Oil seal lip
4. Install:
• Brake caliper bracket assembly
• Rear wheel
• Adjusting block
• Wheel axle
• Washer
• Wheel axle nut
TIP
• Do not install the brake caliper.
• Align the projection “a” in the swingarm with the
slot “b” of the brake caliper bracket assembly.
• Install the adjusting block (left) so that projec-
tion “c” faces to the front of the vehicle.
• Install the adjusting block (right) with the cham-
fered “d” facing the inside.
5. Install:
• Rear brake caliper
• Rear brake caliper bolt
6. Adjust:
• Drive chain slack
Refer to “DRIVE CHAIN SLACK” on page 3-
18.
7. Tighten:
• Wheel axle nut
• Rear brake caliper bolt
WARNING
EWA13500
Make sure the brake hose is routed properly.
Rear brake disc bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
LOCTITE®
Recommended lubricant
Lithium-soap-based grease
T
R
.
.
a
b
A. Left side
B. Right side
Drive chain slack (Maintenance
stand)
36.0–41.0 mm (1.42–1.61 in)
Drive chain slack
36.0–41.0 mm (1.42–1.61 in)
Drive chain slack limit
46.0 mm (1.81 in)
Rear wheel axle nut
105 N·m (10.5 kgf·m, 77 lb·ft)
Rear brake caliper bolt (front)
27 N·m (2.7 kgf·m, 20 lb·ft)
Rear brake caliper bolt (rear)
22 N·m (2.2 kgf·m, 16 lb·ft)
LOCTITE®
c
A
d
B
T
R
.
.
