CRANKCASE
EAS30389
DISASSEMBLING THE CRANKCASE
1. Place the engine upside down.
2. Remove:
• Crankcase bolt (×31)
TIP
• Loosen each bolt 1/4 of a turn at a time, in stag-
es and in a crisscross pattern. After all of the
bolts are fully loosened, remove them.

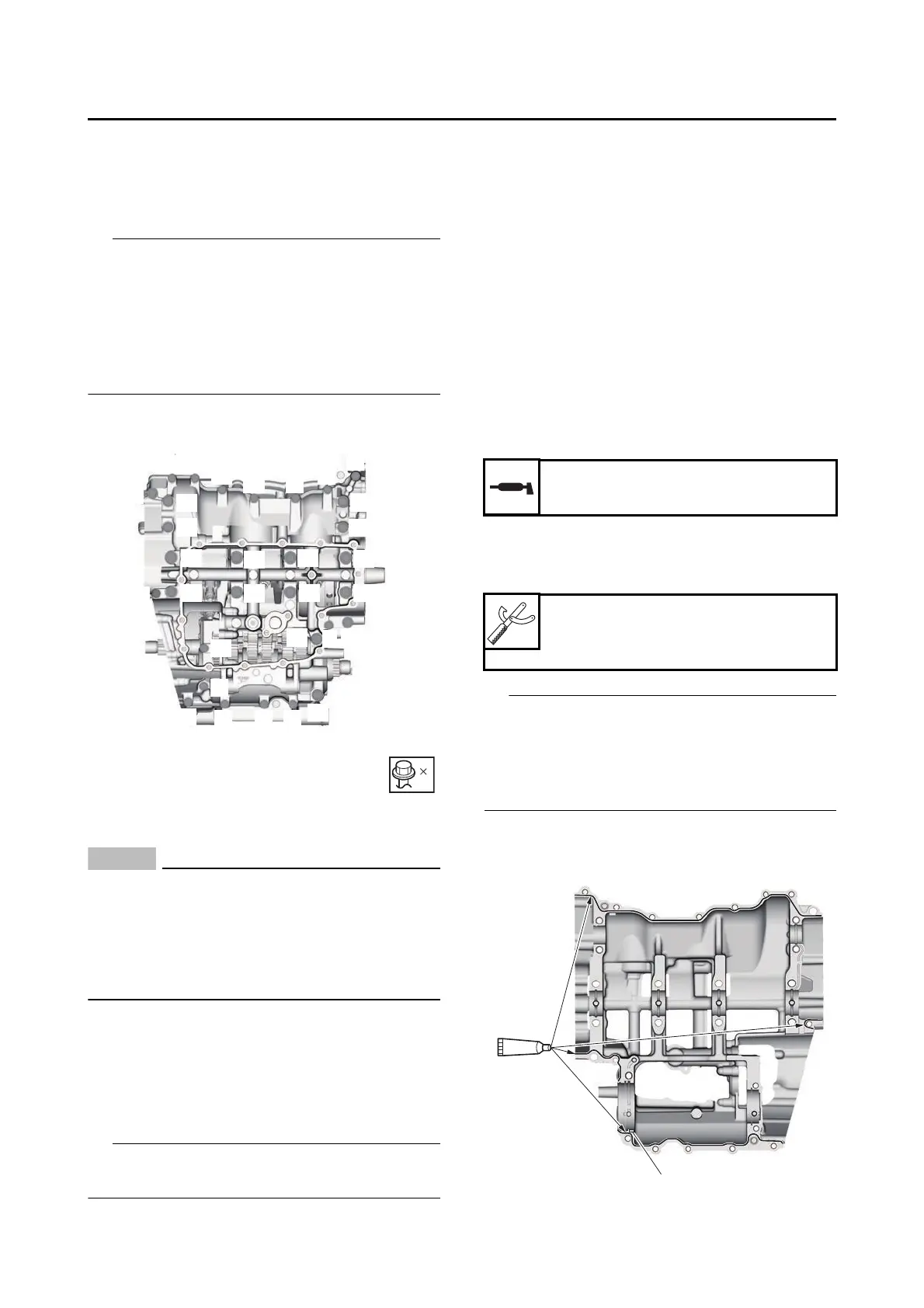

• Loosen the bolts in the proper sequence as
shown.
• The numbers embossed on the crankcase in-
dicate the crankcase tightening sequence.
3. Remove:
• Lower crankcase
NOTICE
ECA13900
Tap on one side of the crankcase with a soft-
face hammer. Tap only on reinforced por-
tions of the crankcase, not on the crankcase
mating surfaces. Work slowly and carefully
and make sure the crankcase halves sepa-
rate evenly.
4. Remove:
• Dowel pin
5. Remove:
• Crankshaft journal lower bearing
• Balancer shaft journal bearing
(from the lower crankcase)
TIP
Identify the position of each part very carefully so
that it can be reinstalled in its original place.
EAS30390
CHECKING THE CRANKCASE
1. Thoroughly wash the crankcase halves in a
mild solvent.
2. Thoroughly clean all the gasket surfaces and
crankcase mating surfaces.
3. Check:
• Crankcase
Cracks/damage → Replace.
• Oil delivery passages
Obstruction → Blow out with compressed air.
EAS30397
ASSEMBLING THE CRANKCASE
1. Lubricate:
• Crankshaft journal bearing inner surface
(with the recommended lubricant)
2. Apply:
• Sealant
(onto the crankcase mating surfaces)
TIP
• Do not allow any sealant to come into contact
with the oil gallery or crankshaft journal bear-
ings, or balancer shaft journal bearings.
• Make sure that the sealant does not get into
the groove “a” in the crankcase.
7
8
9
10
11
1
2
13
17
22
23
14
24
25
26
27
28
29
30
31
21
20
1
2
3 54
6
15
16
18
19
31
Recommended lubricant
Engine oil
Yamaha bond No. 1215
90890-85505
Three bond No. 1215®
a
