Yamaha MT-09 2021 - Installing the Engine; Removing the Engine

5-14
ENGINE REMOVAL
EAS30250
REMOVING THE ENGINE

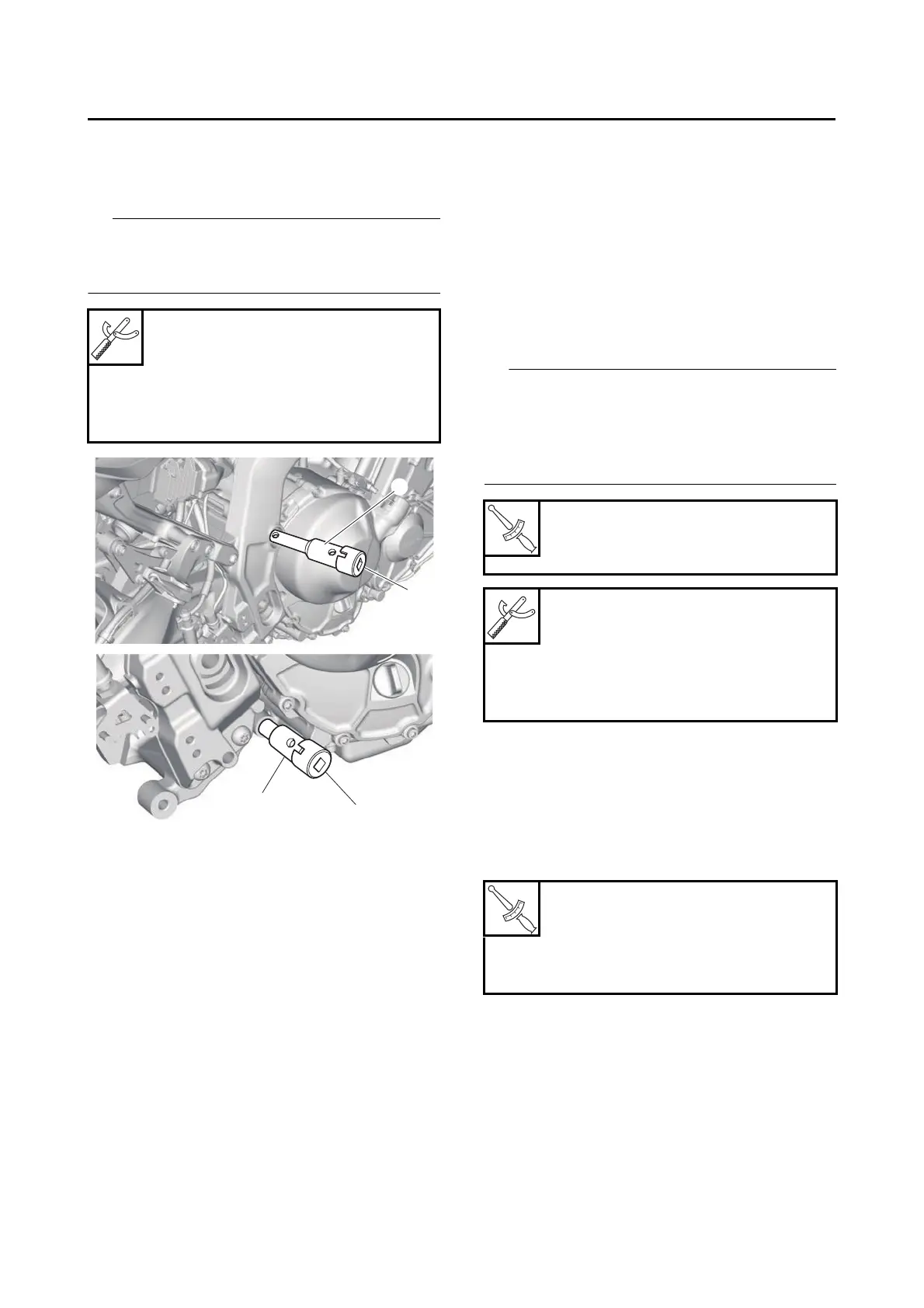

1. Loosen:
• Engine mounting adjust bolt (rear)
TIP
Loosen the engine mounting adjust bolts with
the pivot shaft wrench “1” and pivot shaft wrench
adapter “2”.
EAS30251
INSTALLING THE ENGINE
1. Install:
• Engine mounting adjust bolt (lower) “1”
(temporarily tighten)
• Engine mounting adjust bolt (upper) “2”
(temporarily tighten)
2. Install:
• Muffler bracket “3”
• Muffler bracket bolt “4”
(temporarily tighten)
3. Install:
• Engine
4. Install:
• Engine mounting bolt (rear lower side) “5”
• Engine mounting bolt (rear upper side) “6”
5. Install:
• Engine mounting bolt (left front lower side) “7”
(temporarily tighten)
6. Install:
• Collar “8”
• Collar “9”
• Engine mounting bolt (right front lower side)
“10”
(temporarily tighten)
7. Tighten:
• Engine mounting adjust bolt (lower) “1”
TIP
• Tighten the engine mounting adjust bolt to
specification with the pivot shaft wrench and
pivot shaft wrench adapter.
• Make sure that the flange on the engine
mounting adjust bolt contacts the engine.
8. Install:
• Muffler bracket “11”
• Muffler bracket bolt “12”
(temporarily tighten)
9. Tighten:
• Engine mounting nut (lower) “13”
• Muffler bracket bolt “4”, “12”
10.Tighten:
• Engine mounting bolt (left front lower side) “7”
• Engine mounting bolt (right front lower side)
“10”
Pivot shaft wrench
90890-01518
Frame spanner socket
YM-01518
Pivot shaft wrench adapter
90890-01476
1
2
1
2
Engine mounting adjust bolt
(lower)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
Pivot shaft wrench
90890-01518
Frame spanner socket
YM-01518
Pivot shaft wrench adapter
90890-01476
Engine mounting nut (lower)
55 N·m (5.5 kgf·m, 41 lb·ft)
Muffler bracket bolt
55 N·m (5.5 kgf·m, 41 lb·ft)
LOCTITE®
T
R
.
.
T
R
.
.
