5-15

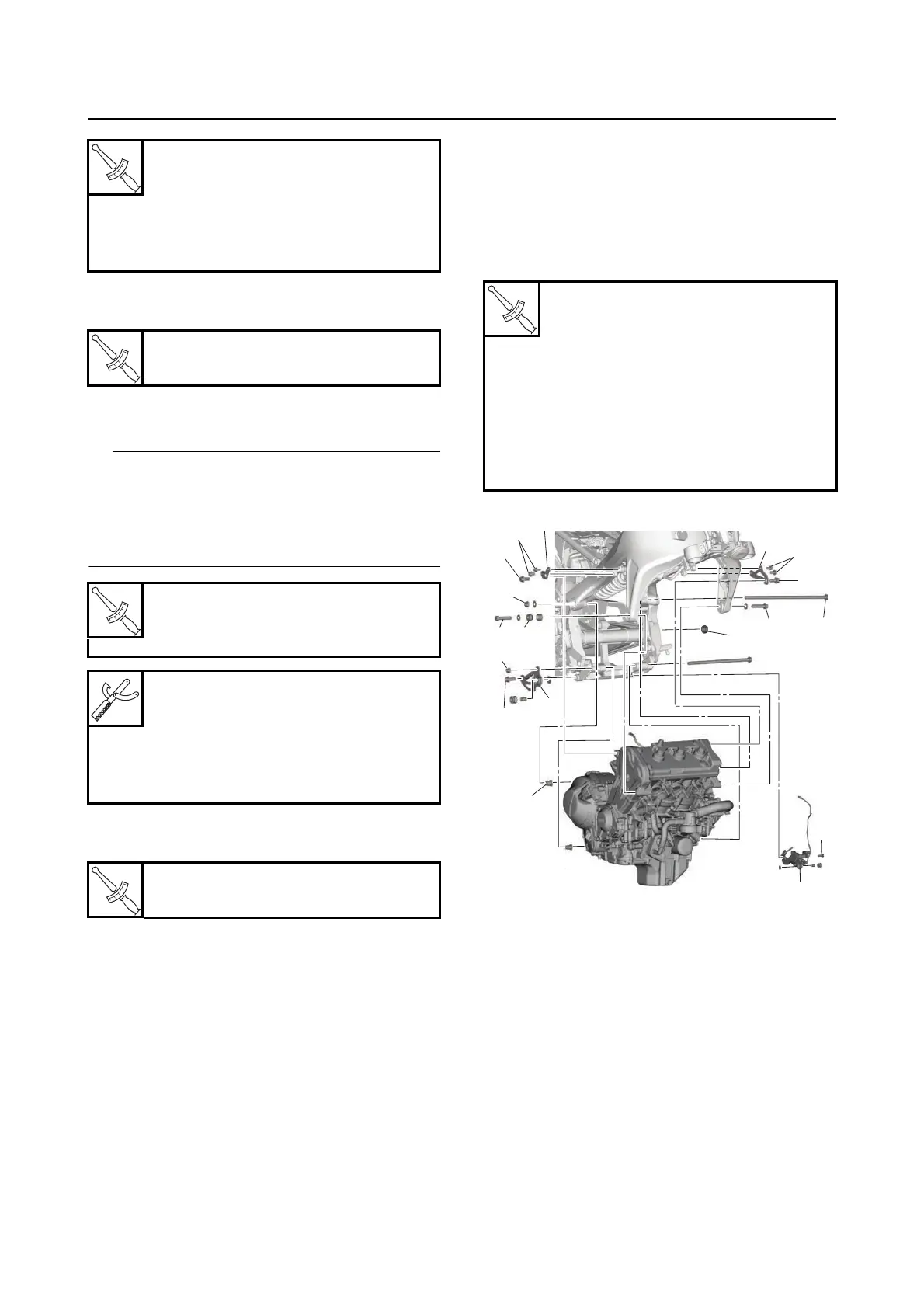

ENGINE REMOVAL
11.Tighten:
• Pivot shaft nut “14”
12.Tighten:
• Engine mounting adjust bolt (upper) “2”
TIP
• Tighten the engine mounting adjust bolt to
specification with the pivot shaft wrench and
pivot shaft wrench adapter.
• Make sure that the flange on the engine
mounting adjust bolt contacts the engine.
13.Tighten:
• Engine mounting nut (upper) “15”
14.Install:
• Engine bracket (left) “16”
• Engine bracket bolt (left) “17”
(temporarily tighten)
• Engine mounting bolt (left front upper side)
“18”
(temporarily tighten)
15.Install:
• Engine bracket (right) “19”
• Engine bracket bolt (right) “20”
(temporarily tighten)
• Engine mounting bolt (right front upper side)
“21”
(temporarily tighten)
16.Tighten:
• Engine bracket bolt (left) “17”
• Engine mounting bolt (left front upper side)
“18”
• Engine bracket bolt (right) “20”
• Engine mounting bolt (right front upper side)
“21”
Engine mounting bolt (left front
lower side)
60 N·m (6.0 kgf·m, 44 lb·ft)
Engine mounting bolt (right front
lower side)
60 N·m (6.0 kgf·m, 44 lb·ft)
Pivot shaft nut
105 N·m (10.5 kgf·m, 77 lb·ft)
Engine mounting adjust bolt
(upper)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
Pivot shaft wrench
90890-01518
Frame spanner socket
YM-01518
Pivot shaft wrench adapter
90890-01476
Engine mounting nut (upper)
45 N·m (4.5 kgf·m, 33 lb·ft)
T
R
.
.
T
R
.
.
T
R
.
.
T
R
.
.
Engine bracket bolt (left)
25 N·m (2.5 kgf·m, 18 lb·ft)
Engine mounting bolt (left front
upper side)
45 N·m (4.5 kgf·m, 33 lb·ft)
Engine bracket bolt (right)
25 N·m (2.5 kgf·m, 18 lb·ft)
Engine mounting bolt (right front
upper side)
45 N·m (4.5 kgf·m, 33 lb·ft)
T
R
.
.
21
20
19
13
12
2
1
15
10
9
8
11
16
17
18
7
14
6
5
4
3
