HANDLEBAR
EAS20033
HANDLEBAR

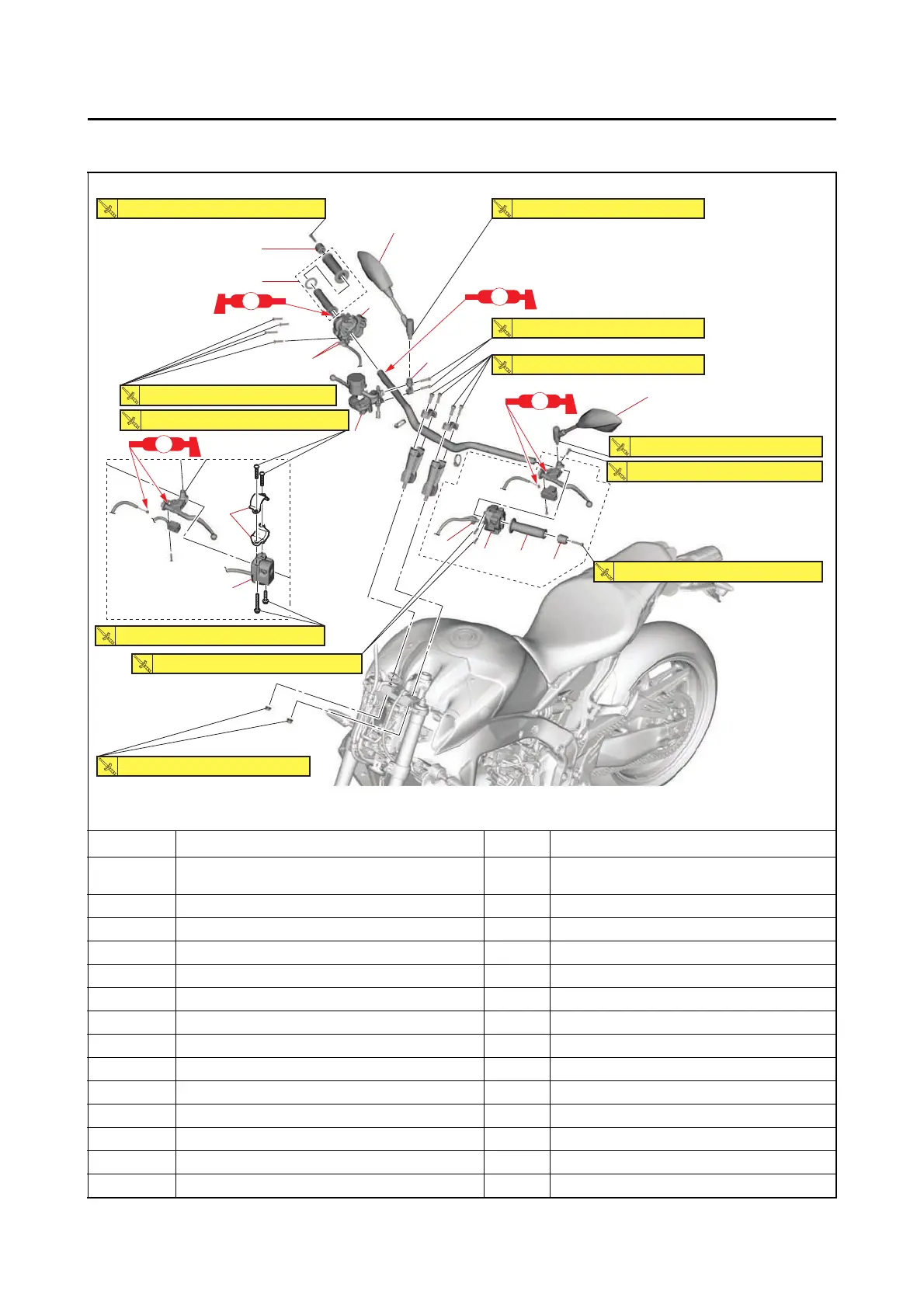

Removing the handlebar
* For MTN890
** For MTN890D
Order Job/Parts to remove Q’ty Remarks
Meter assembly bracket
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
1 Rearview mirror (right) 1
2 Front brake light switch connector 2 Disconnect. (for MTN890)
3 Front brake master cylinder holder 1
4 Front brake master cylinder assembly 1
5 Grip end (right) 1
6 Throttle grip 1
7 Handlebar switch (right) 1
8 Rearview mirror (left) 1
9 Grip end (left) 1
10 Clutch switch connector 2 Disconnect. (for MTN890)
11 Handlebar switch (left) 1
12 Handlebar switch holder 2 For MTN890D.
13 Handlebar grip 1
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
17 N・m (1.7 kgf・m, 13 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
22 N・m (2.2 kgf・m, 16 lb・ft)
17 N・m (1.7 kgf・m, 13 lb・ft)
11 N・m (1.1 kgf・m, 8.1 lb・ft)
40 N・m (4.0 kgf・m, 30 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
3.5 N・m (0.35 kgf・m, 2.6 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
5
7
3
1
8
9
13
12
11
10
11
2
4
6
**
*
*
LS
LS
LS
LS
