Yamaha MT-09 2021 - Transmission

5-86
TRANSMISSION
EAS20062
TRANSMISSION

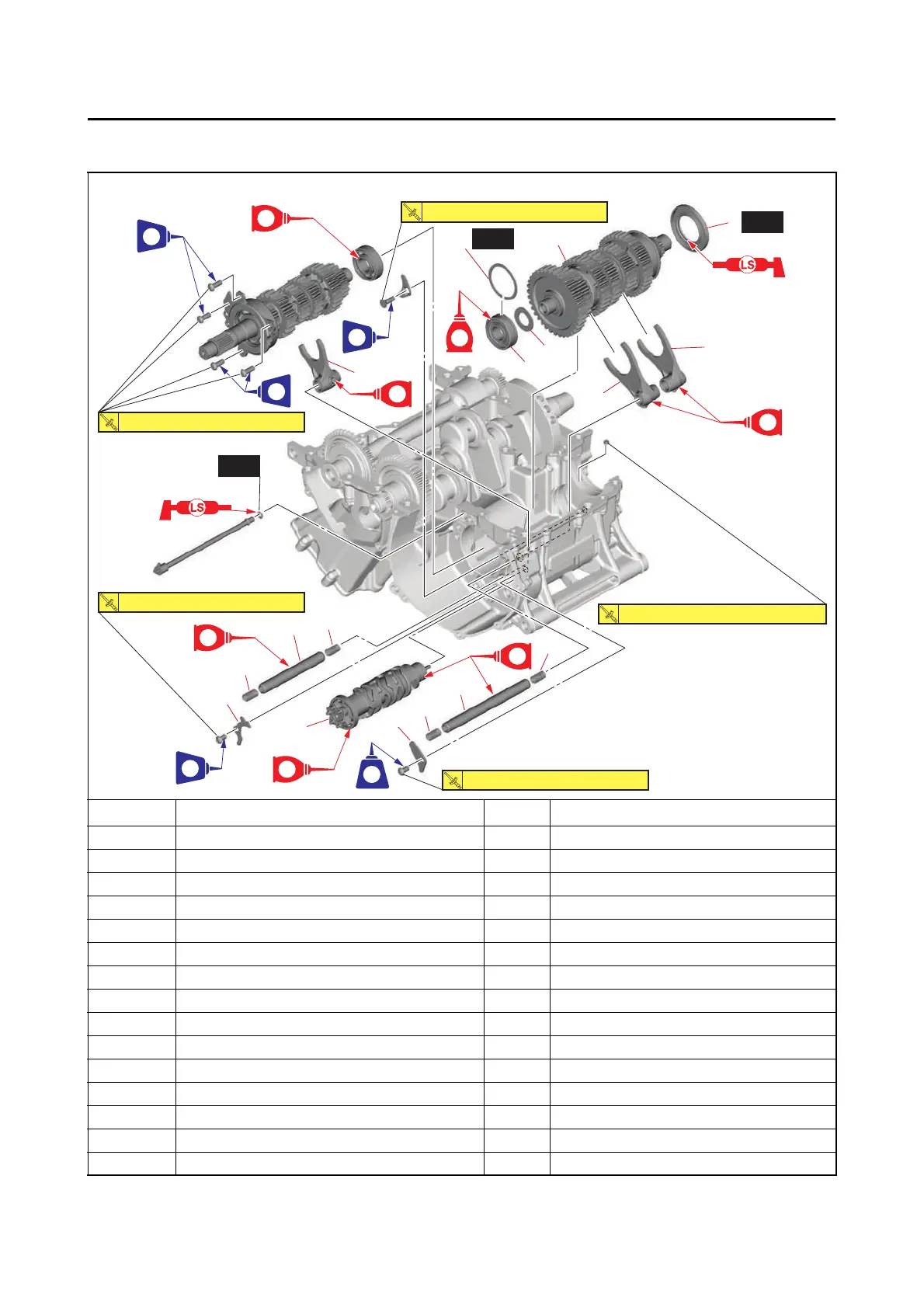

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Lower crankcase Refer to “CRANKCASE” on page 5-63.
Shift shaft Refer to “SHIFT SHAFT” on page 5-55.
1 Drive axle assembly 1
2 Oil seal 1
3 Bearing 1
4 Circlip 1
5Washer 1
6 Shift drum retainer 2
7 Shift fork guide bar 2 1
8Spring 4
9 Shift fork-L 1
10 Shift fork-R 1
11 Shift fork guide bar 1 1
12 Shift drum assembly 1
13 Shift fork-C 1
1
4
2
3
9
10
13
5
8
12
8
8
6
7
8
11
6
New
New
New
E
E
E
LT
LT
E
LT
LT
E
E
E
LT
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
12 N
•
m (1.2 kgf
•
m, 8.9 lb
•
ft)
0.5 N
•
m (0.05 kgf
•
m, 0.37 lb
•
ft)
14 N
•
m (1.4 kgf
•
m, 10 lb
•
ft)
