6-7
OIL COOLER
EAS20064

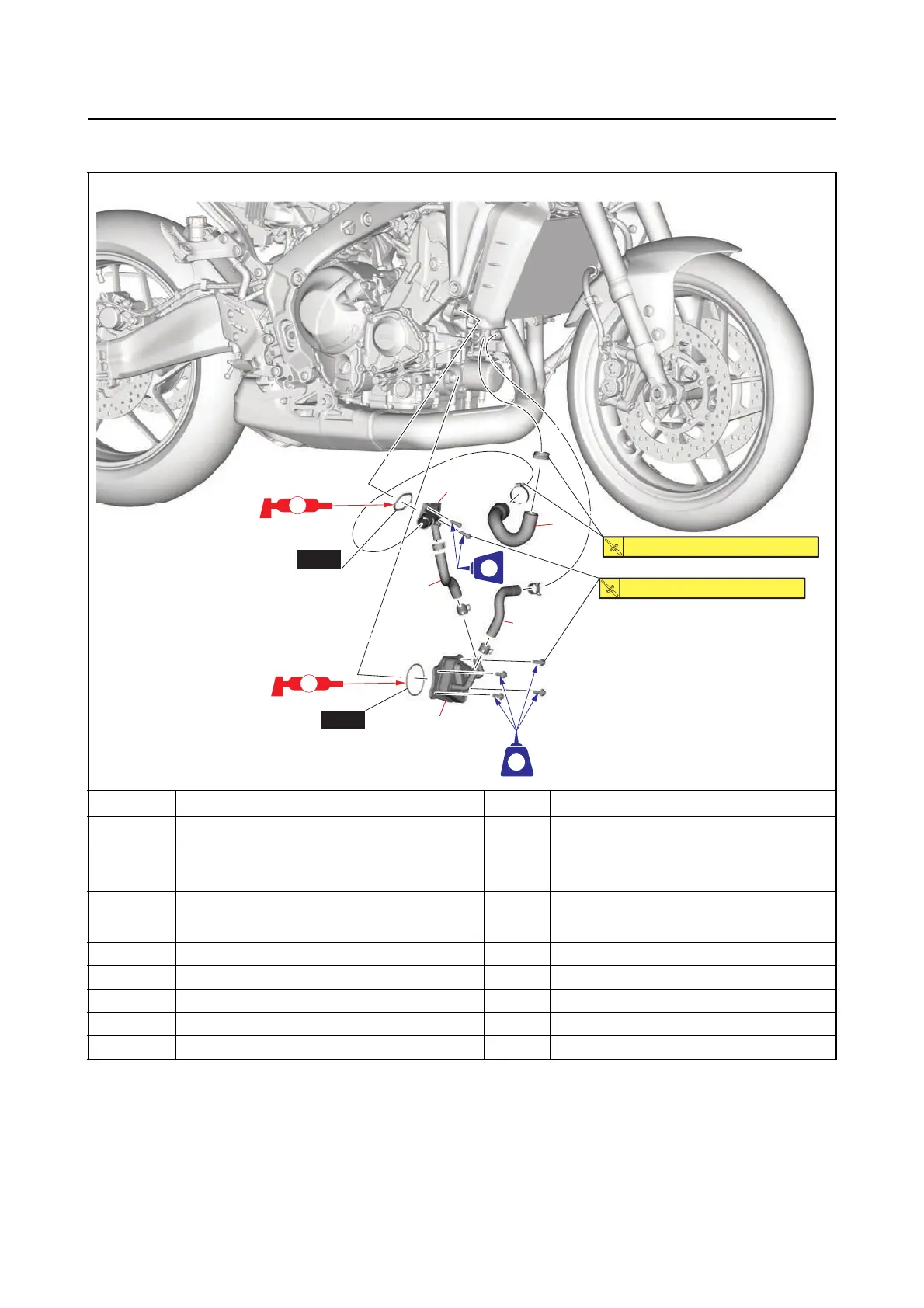

OIL COOLER
Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Coolant reservoir Refer to “RADIATOR” on page 6-3.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-31.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-28.
1 Radiator inlet hose 1
2 Oil cooler inlet hose 1
3 Oil cooler outlet hose 1
4 Oil cooler 1
5 Water jacket joint 1
4
3
1
5
2
LS
LTLT
LT
New
New
LT
LT
LS
2.0 N
•
m (0.20 kgf
•
m, 1.5 lb
•
ft)
T.R.
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T.R.
To Next Page
