5-60
OIL PUMP
3. Check:
• Oil pump operation
Refer to “CHECKING THE OIL PUMP” on
page 5-59.
EAS30343

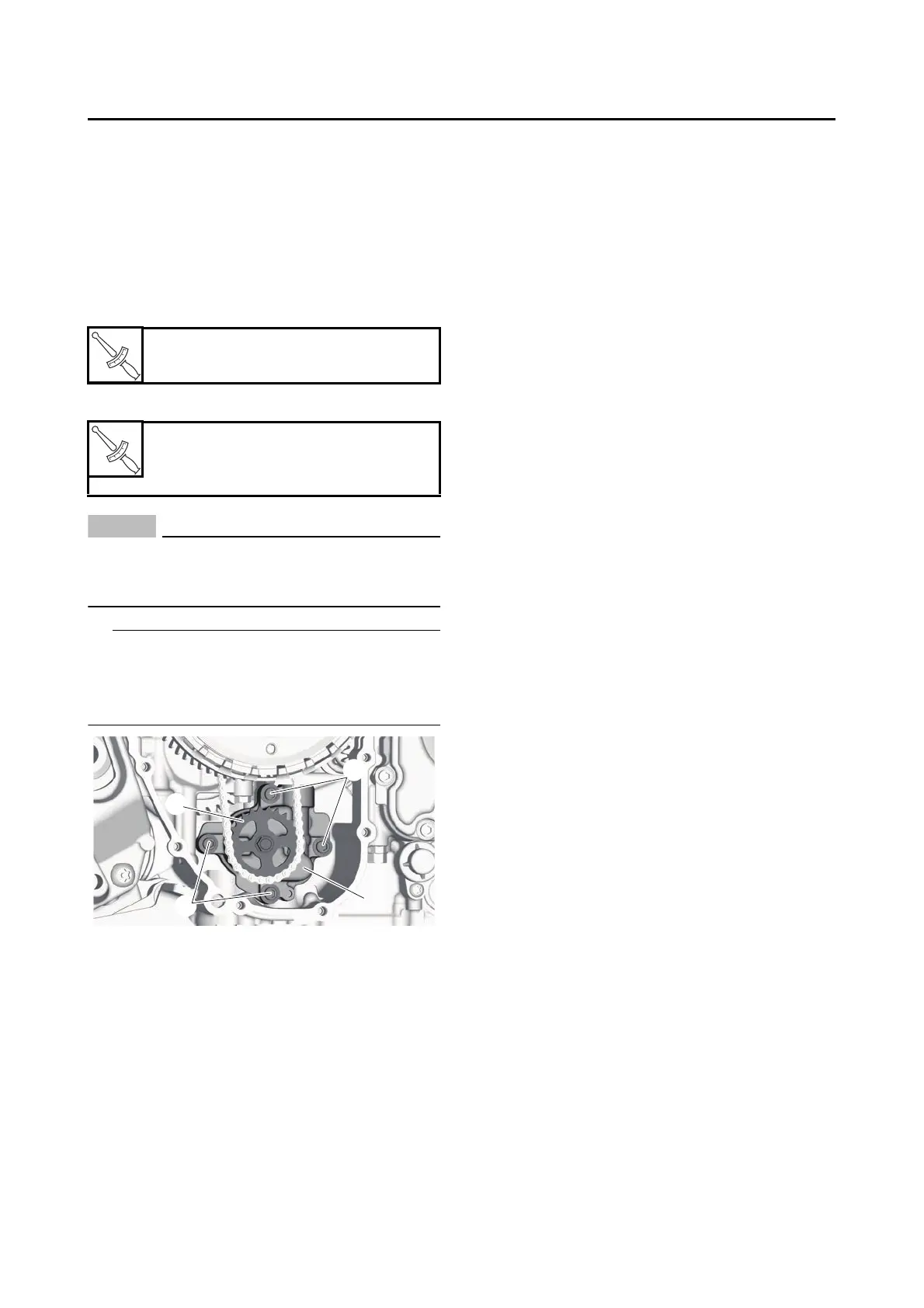

INSTALLING THE OIL PUMP
1. Install:
• Oil pump “1”
• Oil pump bolt “2”
• Oil pump driven sprocket “3”
NOTICE
ECA20940
After installing the oil pump drive chain and
driven sprocket, make sure the oil pump
turns smoothly.
TIP
• 1RC mark of the oil pump driven sprocket is in-
stalled at oil pump side.
• Install the oil pump drive chain onto the oil
pump driven sprocket.
Oil pump bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
Oil pump driven sprocket bolt
15 N·m (1.5 kgf·m, 11 lb·ft)
LOCTITE®
T
R
.
.
T
R
.
.
1
2
2
3
