Yamaha MT-09 2021 - Installing the Headlight; Installing the Imu

4-8
GENERAL CHASSIS (1)
EAS33545

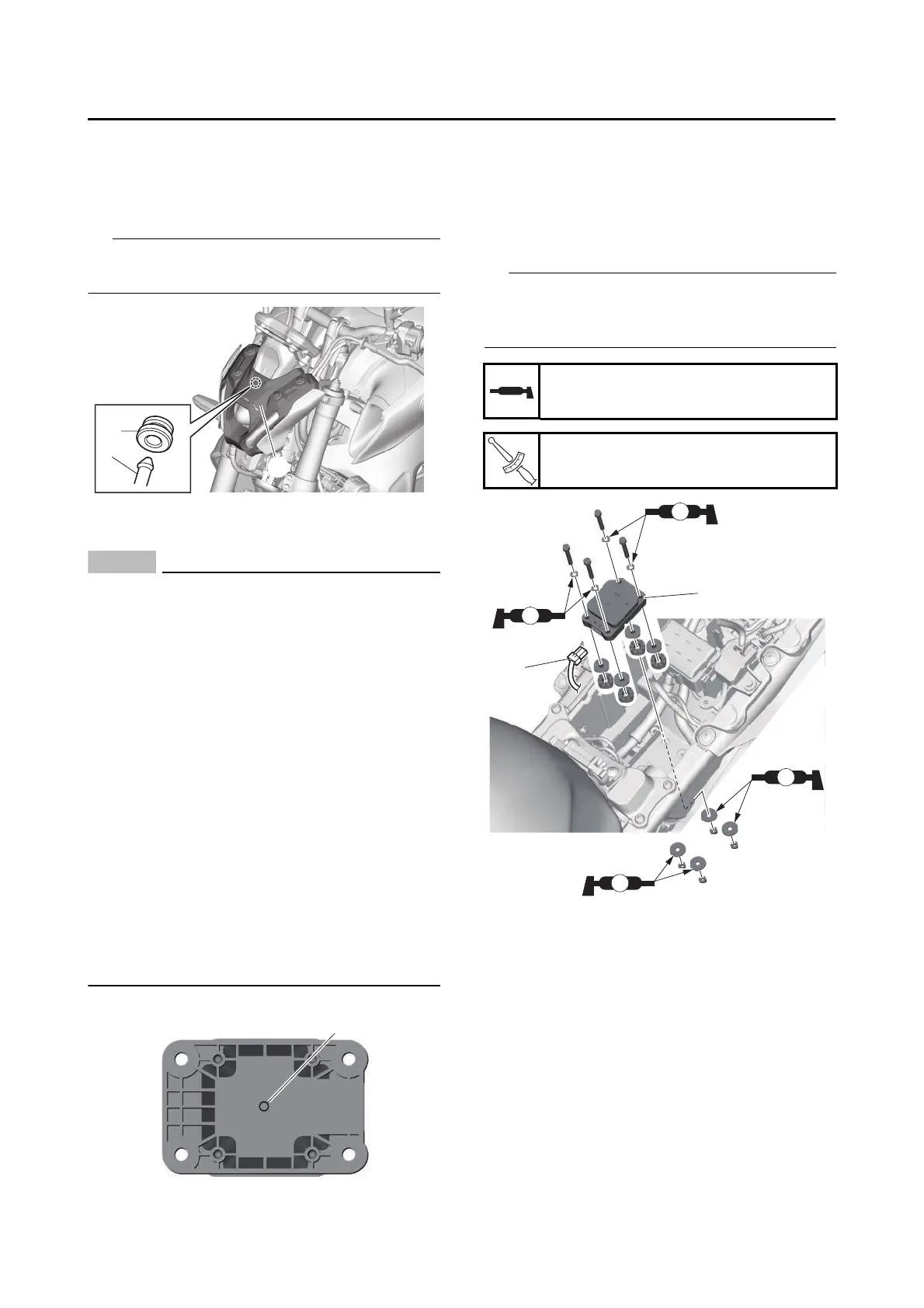

INSTALLING THE HEADLIGHT FRONT
COVER
1. Install:
• Headlight front cover “1”
TIP
Insert the projection “a” on the headlight front
cover into the grommet “b”.
EAS31636
INSTALLING THE IMU
NOTICE
ECA22611
• Do not perform angle adjustment of the IMU
and battery box by pinching the washer
and related parts.
• When installing the IMU, apply a thin coat of
silicone grease onto the washer where con-
tacting the IMU grommet.
• When installing the IMU, use only a genuine
bolt and washer, and tighten the bolt to the
specified torque.
• Pay attention not to expose the IMU to
strong shocks, such as striking or drop-
ping it.
• Do not place any foreign objects in and
around the battery box.
• Do not obstruct breather opening “a” of the
IMU.
• Do not clean the breather opening and do
not blow it with compressed air.
• When replacing the collar or grommet, re-
place all four collars and grommets.
1. Install:
• IMU (Inertial Measurement Unit) “1”
a. Connect the IMU coupler “2” to the IMU.
b. Install the grommets, collars, IMU “1”,
washers, IMU nuts and IMU bolts, and then
tighten the bolts to specification.
TIP
Apply a thin coat of silicone grease onto the col-
lars and washers where contacting the grom-
mets.
a
b
1
a
Recommended lubricant
Silicone grease
IMU bolt
2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
T
R
.
.
2
S
S
S
S
1
