9-213
P0914
EAS20417
P0914
EAS32837
TROUBLESHOOTING
Item
Gear position sensor: signal stuck
Fail-safe system
• Able to start engine
• Able to drive vehicle
Procedure
• If more than one DTC is detected at the same time, perform troubleshooting of DTC listed below first.
• P0335, P0500, P0915, P0916, P0917, P1500
1. Installed condition of gear position sensor.
• Check for looseness or pinching.
Refer to “CRANKCASE” on page 5-63.
2. Defective gear position sensor.
• Disconnect the ECU coupler “1”.
• Measure the gear position sensor resistance.
• Shift the transmission to each position.
Is check result OK?
YES
→ Go to step 2.
NO
a. Reinstall the sensor.
Refer to “CRANKCASE” on page 5-63.
b. Make sure that the position of each gear is correctly displayed on the meter.
Is check result OK?
YES
→ Go to step 4, and complete the service.
NO
→ Go to step 2.

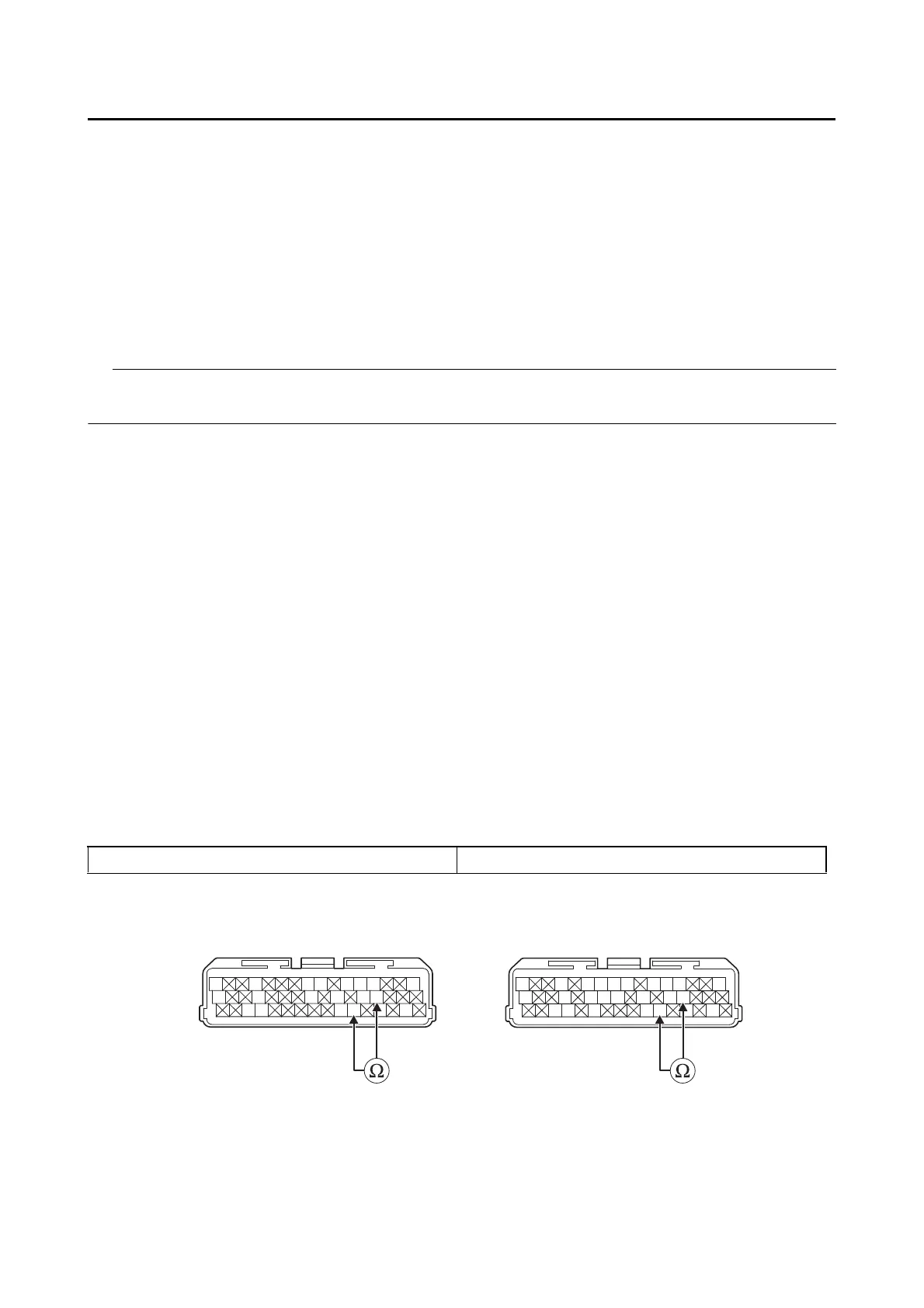

ECU coupler “1” green/white–black/blue
Gy
LLVP
P/WY/LL/B
B/LB/LBr/WGy/GB/YL/W
W/YW/GG/WG/WL/WL/Y
Gy
LLVP
P/WLg/LO/WY/LL/B
B/LB/LBr/WGy/GG/LBr/LB/YL/W
W/YW/GG/WG/WLg/BL/WL/Y
1
**
1
*
*. MTN890
**. MTN890D
